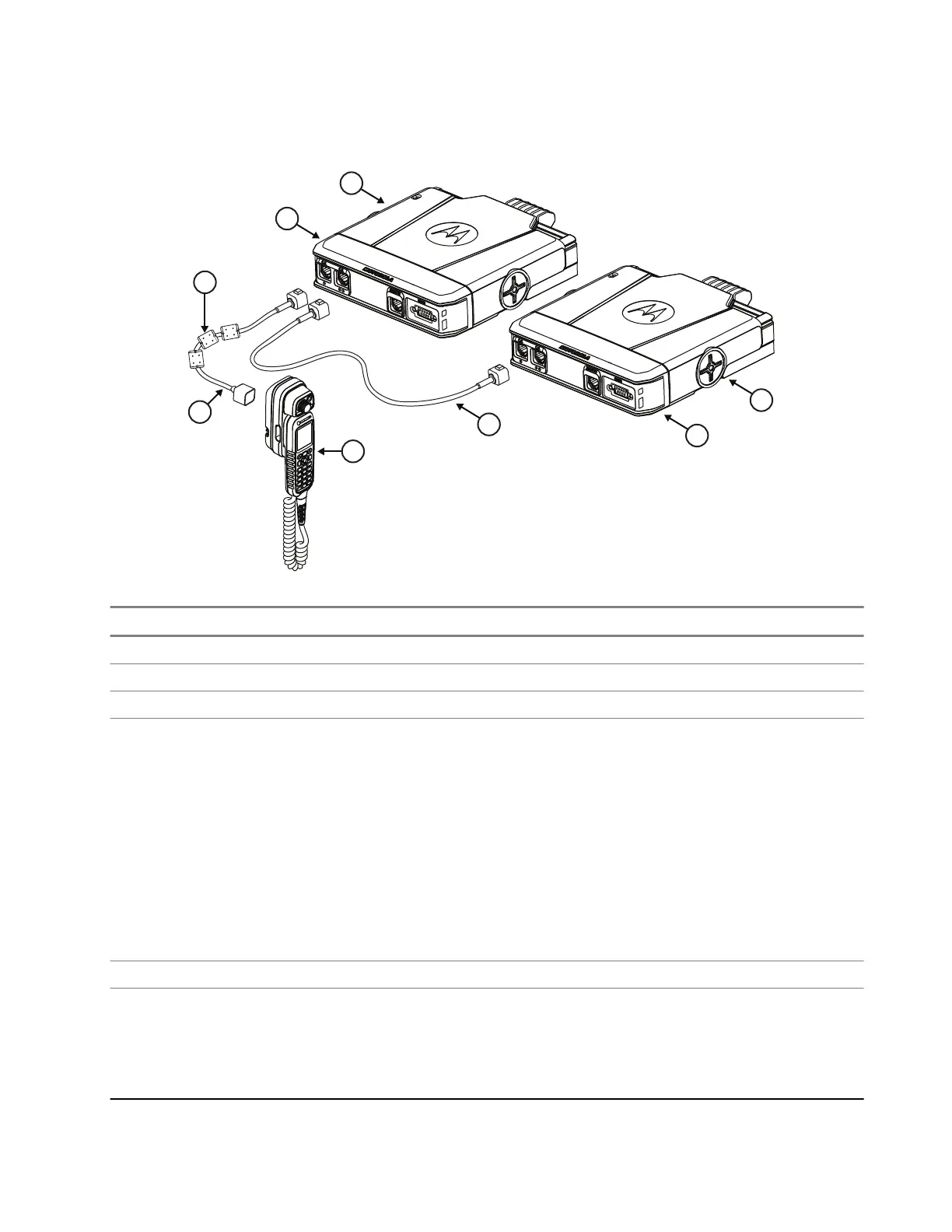

Figure 4: Multi-Radio Control Installation with TSCH
4
5
3
2
1
2
6
1
Label Description
1 MXM600 Terminal
2 Dual Remote Expansion Head (DREH)
3 Ferrite Clamp (Part Number: 91012044001)
4 Remote RJ50 Ethernet Cable:
PMKN4280_ 0.5 m
PMKN4141_ 3 m
PMKN4140_ 5 m
PMKN4139_ 7 m
PMKN4138_ 10 m
PMKN4136_ 12 m
PMKN4146_ 15 m
PMKN4135_ 40 m
5 Telephone Style Control Head (TSCH)
6 TETRA Mobile to Mobile Ethernet Cable,
PMKN4176_ 0.5 m
PMKN4176_ 3 m
PMKN4176_ 7 m
MN009999A01-AA
Chapter 5: Maintenance
65
