AP-7131 Access Point Product Reference Guide
5-62

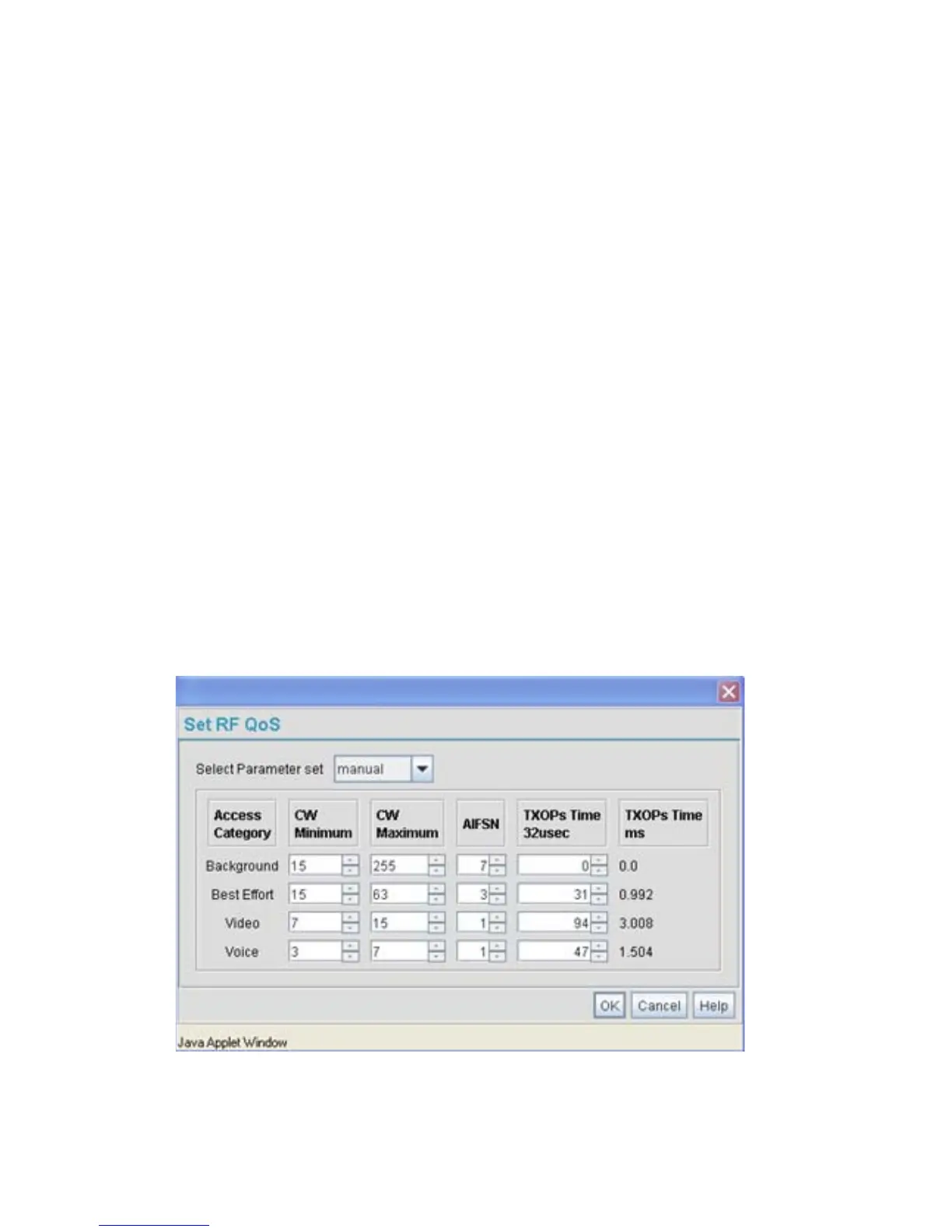

Set RF QoS Click the Set RF QoS button to display the Set RF QOS screen to
set QoS parameters for the radio. Do not confuse with the QoS
configuration screen used for a WLAN. The Set RF QoS screen
initially appears with default values displayed.
Select manual from the Select Parameter set drop-down menu
to edit the CW min and CW max (contention window), AIFSN
(Arbitrary Inter-Frame Space Number) and TXOPs Time for each
Access Category. These are the QoS policies for the 802.11a/n or
802.11b/g/n radio, not the QoS policies configured for the WLAN
(as created or edited from the Quality of Service Configuration
screen).
Motorola recommends only advanced users manually set these
values. If the type of data-traffic is known, use the drop-down
menu to select an option representative of the intended radio band
support. Wifi represents multimedia traffic, default is typical data
traffic and voice is for “Voice-Over-IP” supported wireless devices.
Click OK to implement the selected QoS values and return to the
802.11a/n or 802.11b/g/n radio configuration screen. Clicking
Cancel reverts the screen to the last saved configuration.
