2.8 AP-7131 LED Indicators

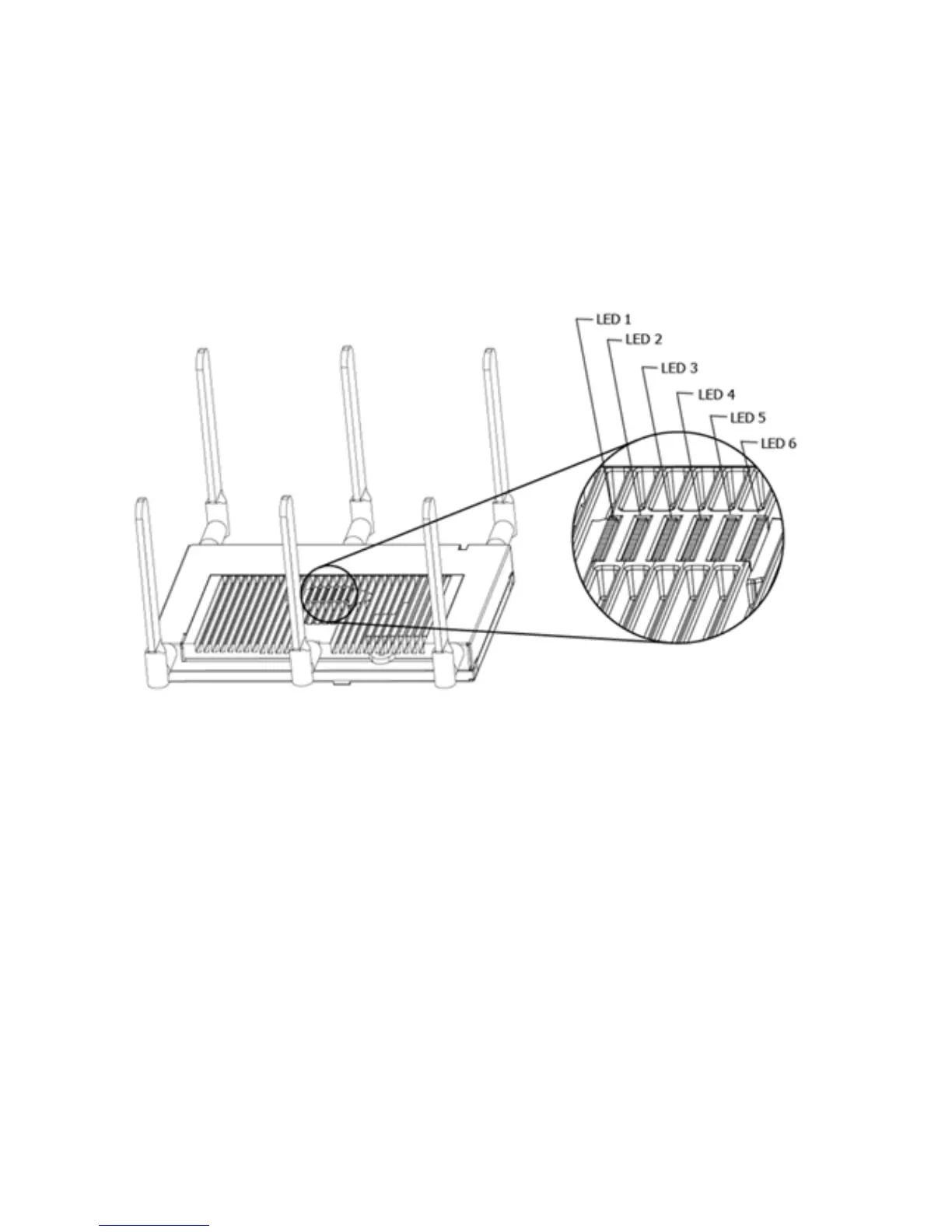

Six LEDs illuminate on the front of the AP-7131 (on top of the AP-7131 housing) for dual radios models
and five illuminate for single radio models. Two LEDs (for above the ceiling installations) are located
on the back of the device.
The LEDs on the top housing of the AP-7131 are clearly visible in wall and below ceiling installations.
The top housing LEDs have the following display and functionality:
