Ensure the cable length from the Ethernet source (host) to the Power Injector and access
point does not exceed 100 meters (333 ft). The Power Injector does not have an On/Off
switch. Each Power Injector receives power as soon as AC power is applied.
3. Verify all cable connections are complete before supplying power to the access point.
2.6.1.3 Power Injector LED Indicators

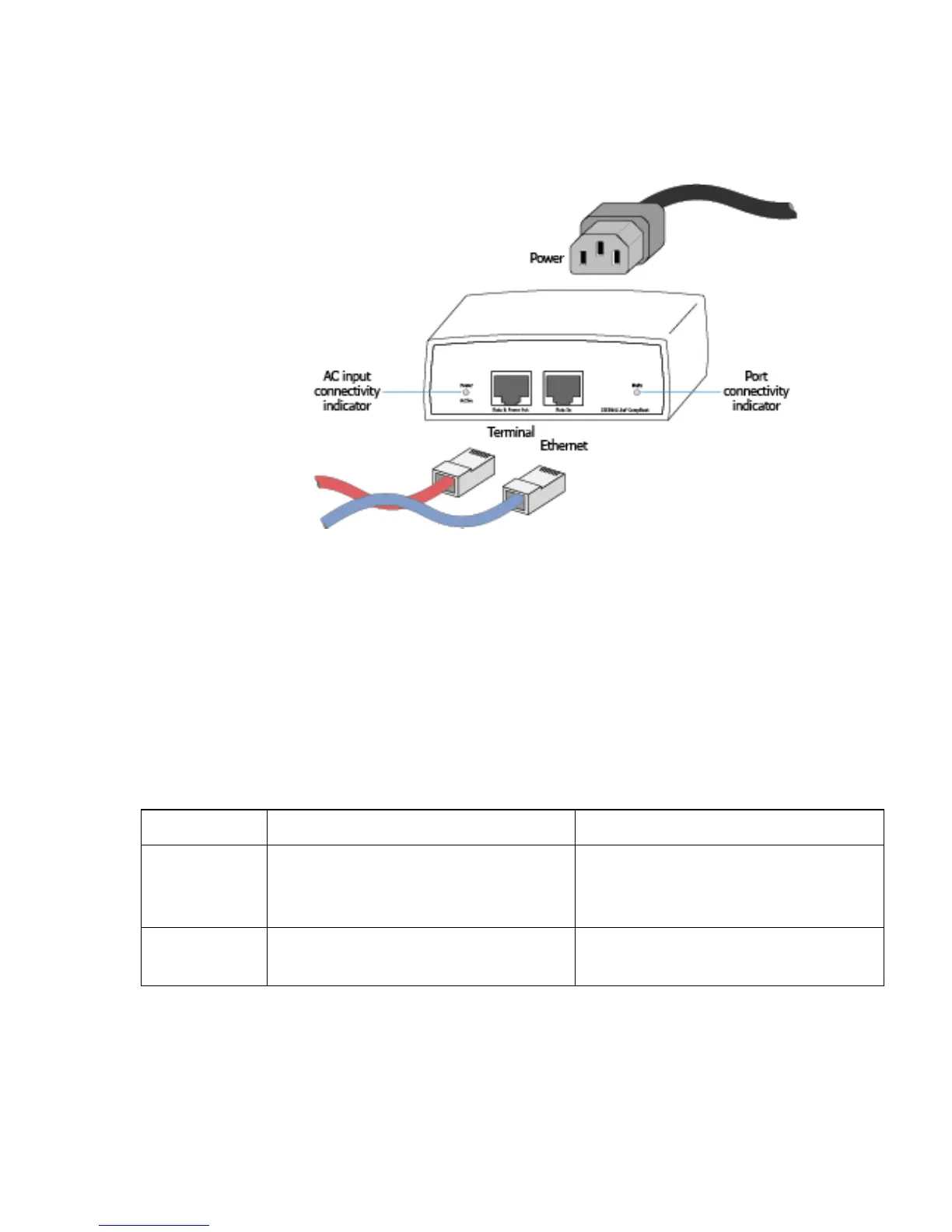

The Power Injector demonstrates the following LED behavior under normal and/or problematic
operating conditions:
For more information and device specifications for the AP-7131 Power Injector (Part No.
AP-PSBIAS-1P3-AFR), refer to the Power Injector Quick Install Guide (Part No. 72-109209-01)
available from the Motorola Web site.
LED AC (Main) Port
Green (Steady) Power Injector is receiving power from an
AC outlet.
Indicates a device is connected to the
Power Injector’s outgoing Data & Power
cable.
Green (Blinking) Output voltage source is out of range. The Power Injector is overloaded or has a
short circuit.
