Identifying Radio Controls

English

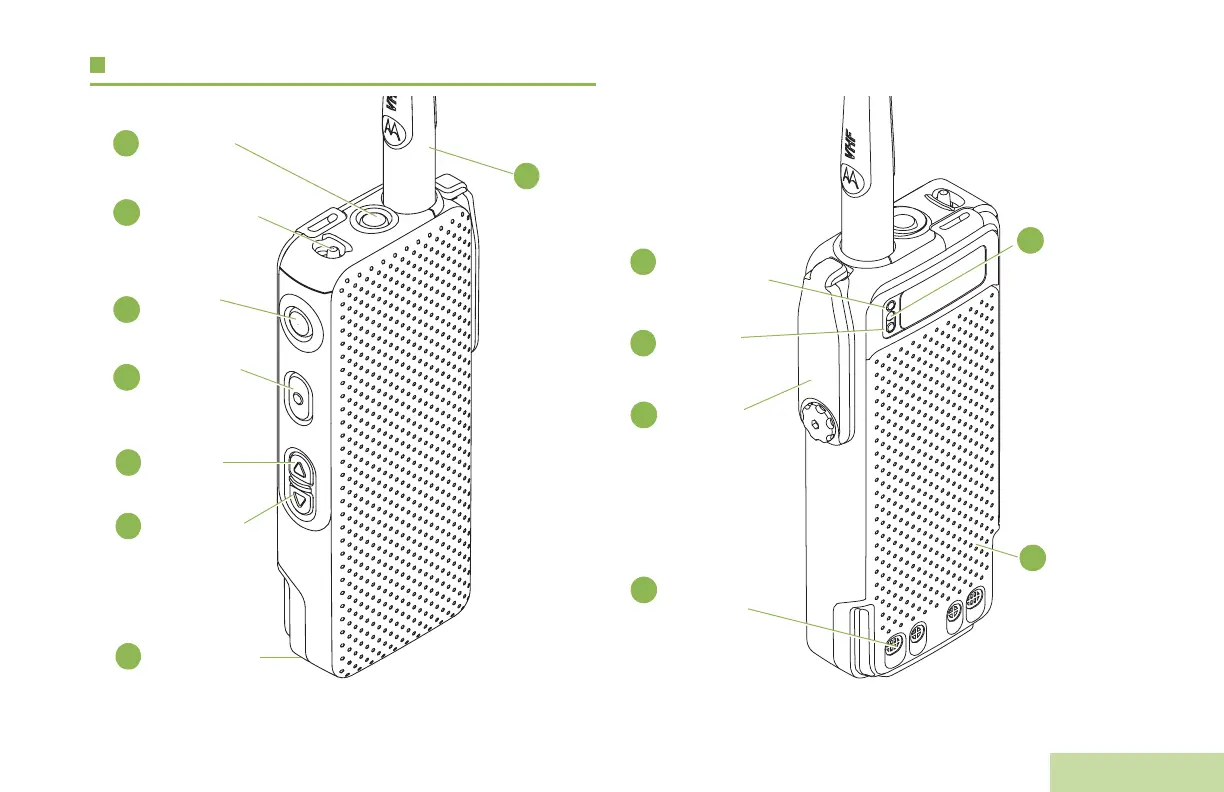

Radio Parts and Controls

Transmit/

Receive LED

Top Button*

On/Off Switch

Middle Side

Button*

Battery

Connector

* These radio controls/buttons are programmable.

Top Side

Button*

Bluetooth

Pairing

Spot

Antenna

Up Arrow

Button*

Down Arrow

Button*

Connector

Cover

Bluetooth

LED

Battery Latch
