O5 Control Head Mobile Radio
Quick Reference Card
Product Safety and RF Exposure Compliance
ATTENTION!
This radio is restricted to occupational use only to satisfy FCC RF
energy exposure requirements. Before using this product, read
the RF energy awareness information and operating instructions
in the Product Safety and RF Exposure booklet enclosed with
your radio (Motorola Publication part number 6881095C99) to
ensure compliance with RF energy exposure limits.

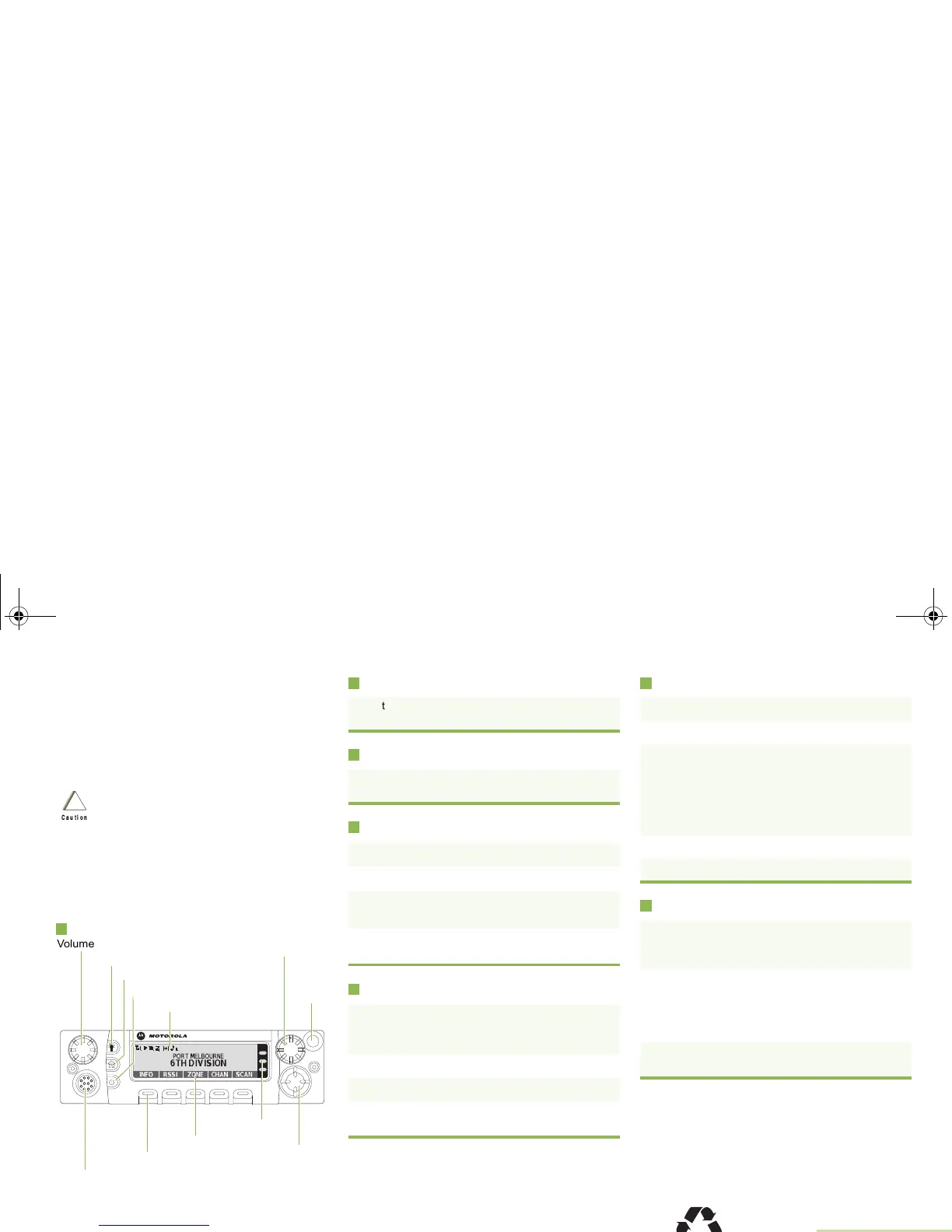

Radio Controls
Radio On/Off
Adjusting Volume
Selecting a Zone
Selecting a Channel
Receiving and Transmitting
Sending an Emergency Alarm
To exit emergency at any time, press and hold the
Emergency button.
Before using this product, read the operating
instructions for safe usage contained in the Product
Safety and RF Exposure booklet enclosed with your
radio.
!
Caution
Volume Knob
Accessory Port (Microphone)
Menu Select Button
Menu Entries
LED Indicators
Dim Button
Home Button
Navigation
Button
Power On/Off Button
Indicators
Mode Knob
Orange
Button
______
Press the Power On/Off button to toggle the power on
or off.
Turn the Volume Knob clockwise to increase volume or
counterclockwise to decrease the volume.
1 > or < to ZONE.
2 > or < button until the desired zone is displayed.
3 Press H or the PTT button to confirm the selected
zone number.
4 Press the PTT button to begin transmitting on the
displayed zone channel.
1 Press and hold > to scroll to CHAN and press the
Menu Select button directly below CHAN. The
display shows the current zone and channel.
2 Rotate the Mode knob to the desired channel.
3 Press H or the PTT button to confirm the channel.
4 Press the PTT button to transmit on the displayed
zone channel.
1 Take the microphone off hook.
2 Select zone/channel.
3 Listen for a transmission.
OR
Turn the Volume Knob.
OR
> or < to MON then press the Menu Select button
directly below MON and listen for activity.
4 Adjust volume, if necessary.
5 Press the PTT button to transmit; release to receive.
1 Press the Emergency button. A tone sounds and the
display alternates EMERGENCY and the home
display.
2 A dispatcher acknowledgment ACK RECEIVED
display follows.
AND, Trunking Only:
A high-pitched tone indicates that the alarm has been
received by the trunked system’s central controller.
3 Press and hold the emergency button or the PTT
button to return to normal operation.
