Motorola ASTRO Digital XTS 3000 User Manual

Digital XTS 3000
Full-Featured Model
Portable Radio
Quick-Reference Card
Write your radio’s programmed features on the
dotted line.
GENERAL
Turning the Radio On : Rotate the On/Off/
Volume Control Knob clockwise.
Monitoring (Conventional Channels Only):
Momentarily press the Monitor Button and listen
for voice activity.
Transmitting: Press and hold the PTT Switch .
Receiving: Release the PTT Switch .
Selecting a Zone and Channel:
1. Press
>
until the
ZONE
softkey appears.
2. Press M directly below ZONE .
3a. Press
>
until the desired zone name appears.
OR
3b. Enter the number of the desired zone.
If the displayed zone/channel combination is
acceptable:
4. Press
O
or the PTT Switch .
If you would like a different channel:
4a. Press
>
until the
CHAN
softkey appears.
5. Press
M
directly
below
CHAN
.
6a. Press > until the
desired channel name
appears.
OR
6b. Enter the number of
the desired channel.
7. Press
O
or the PTT Switch .
COMMON RADIO FEATURE
Making an Individual Call:
1a. Press
>
until one
of the following
softkeys appears:
PHON
for Telephone Call
CALL
for a Private-Conversation Call
PAGE
for a Call-Alert Page
2. Press
M
directly below the desired softkey.
3a. If you wish to call the last number dialed,
press the PTT Switch .
3b. Press <
or
>
until you locate the
member’s number you wish to call.
3c. Enter the number that corresponds to that
member’s placement within the list and press
the PTT Switch .
3d. Enter a new number and press the PTT
Switch .

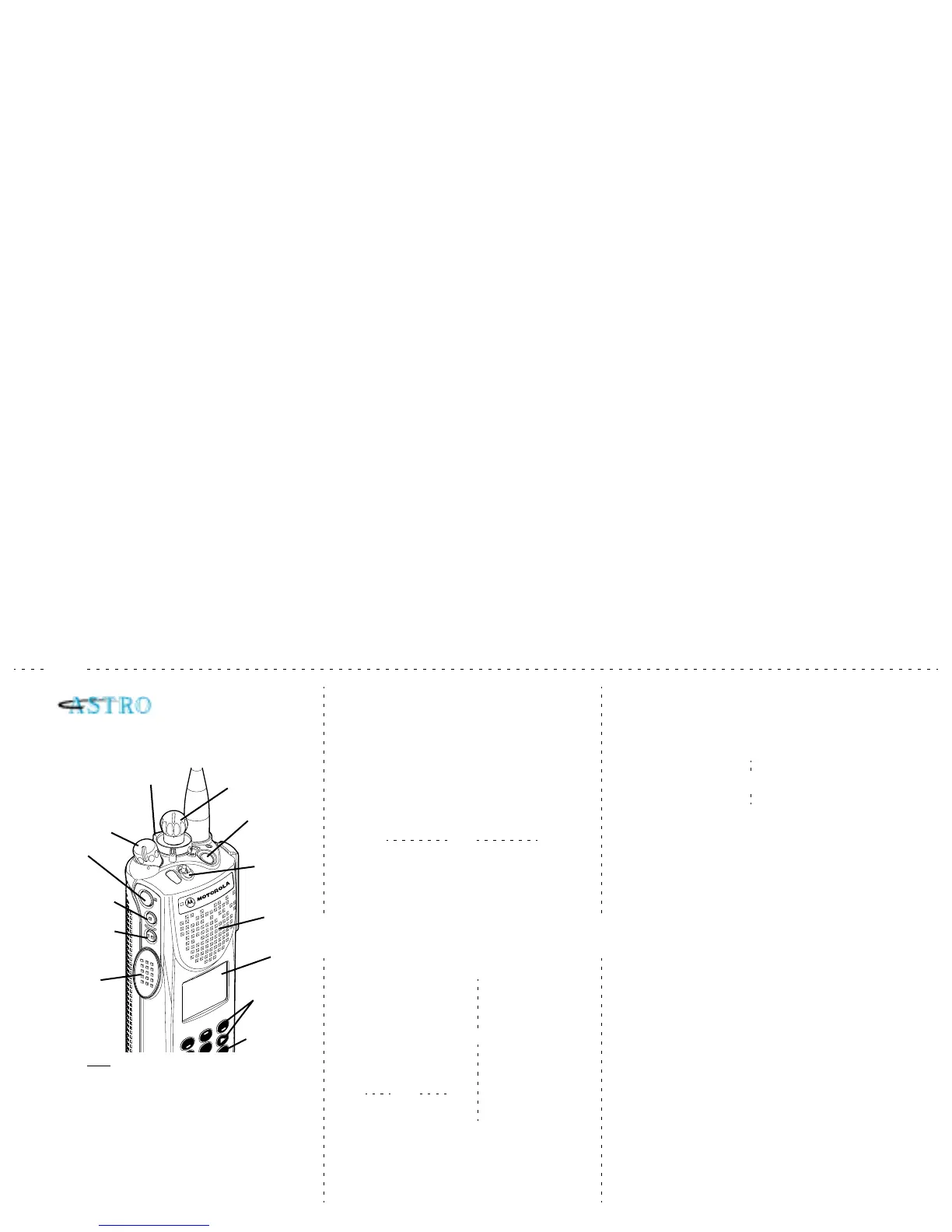

3
DE
F
HOME
XTS 3000
A
B
C
FIRE DISP NW
CHAN
PAGE DIR
16-Position
Select Knob
3-Position
Switch
_ _ _ _ _ _ _
Speaker/
Microphone
Top Button
_ _ _ _ _ _ _
Concentric
Switch
_ _ _ _ _ _
Display
3x4 Keypad
Softkey,
Arrow, and
Home Keys
OR
4b. Rotate the
Zone/Channel
Select Knob to
the desired
channel; then
go to step 7.
FOLD FOLD
✁
1b. Press the Phone ,
Call , or Page
Button ; then go
to step 3.
OR
Top Side
Button
_ _ _ _ _ _ _
On/Off/
Volume Knob
Side Button 1
_ _ _ _ _ _ _
Side Button 2
_ _ _ _ _ _ _
PTT Switch
