6-4 Troubleshooting Waveforms: 32.768 kHz Clock Outputs
6.4 32.768 kHz Clock Outputs
Trace 1: Output at C313 (to real-time clock of GCAP II IC) or R543 (NNTN5567).
Trace 2: Output at U302, pin 2 (to Patriot IC CKIL input).
Note: These components are under shield SH102 on the NNTN4563, NNTN4819, & NNTN4717
VOCON boards.

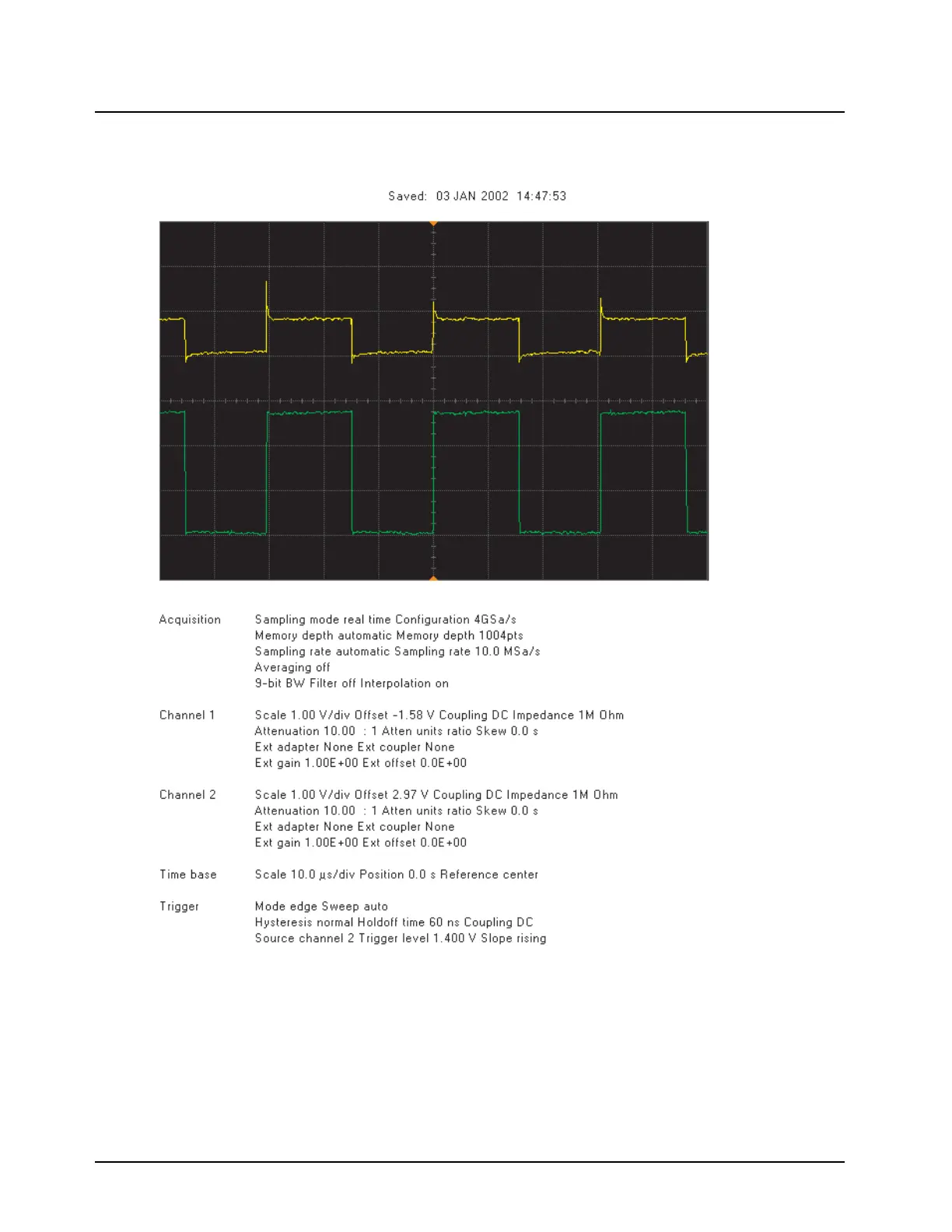

Figure 6-3. 32.768 kHz Clock Outputs Waveforms
MAEPF-27492-O
