Troubleshooting Waveforms: Receive Baseband Interface Port (RX BBP) 6-7
6.7 Receive Baseband Interface Port (RX BBP)
Trace 1: BBP RX frame sync signal at R123 (P1-6) or R153 (NNTN5567).
Trace 2: BBP RX clock signal at R124 (P1-5) or R151 (NNTN5567).
Trace 3: BBP RX data signal at R121 (P1-12) or R155 (NNTN5567).

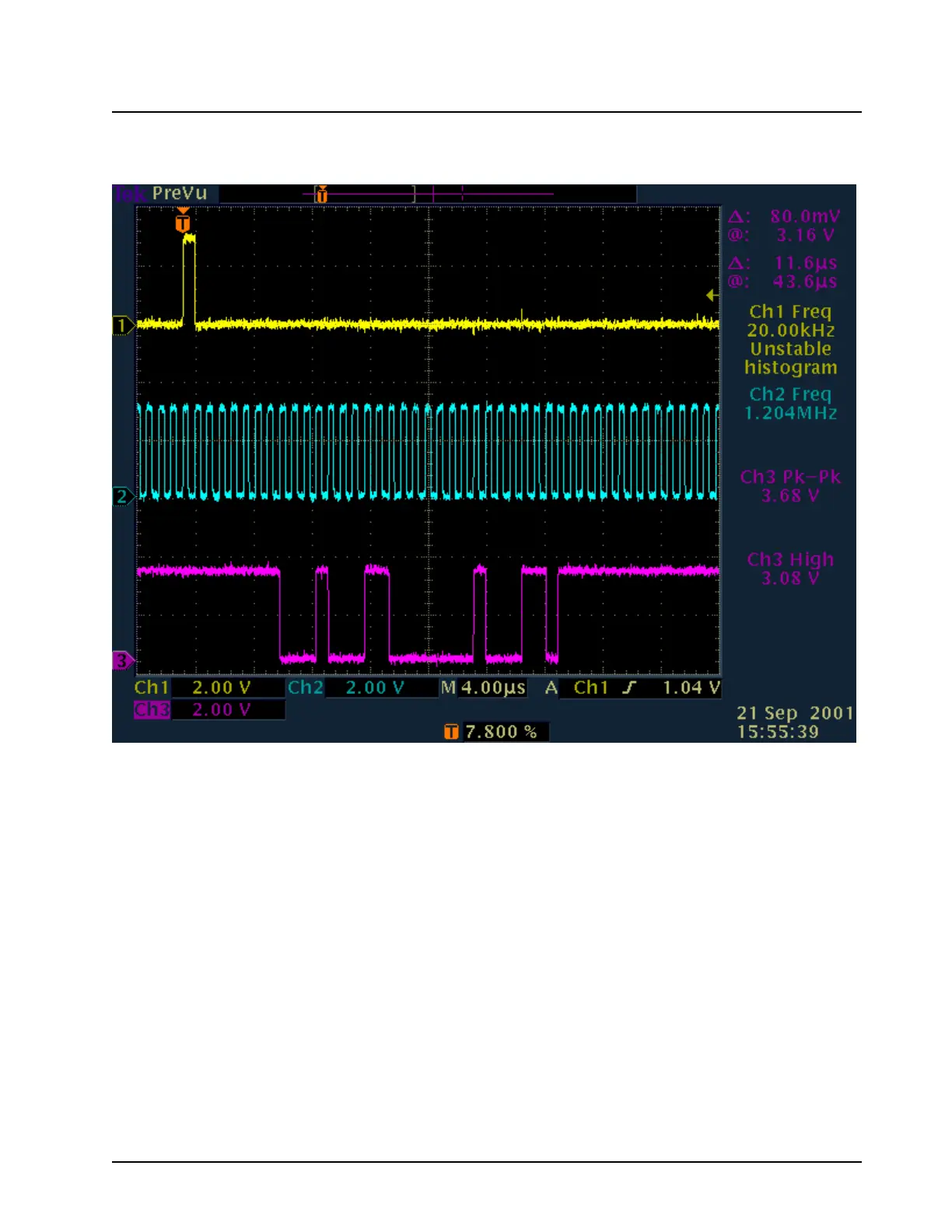

Figure 6-6. Receive Baseband Interface Port (RX BBP) Waveforms
