8-50 Schematics, Board Overlays, and Parts Lists: Transceiver (RF) Boards
November 16, 2006 6881094C31-E

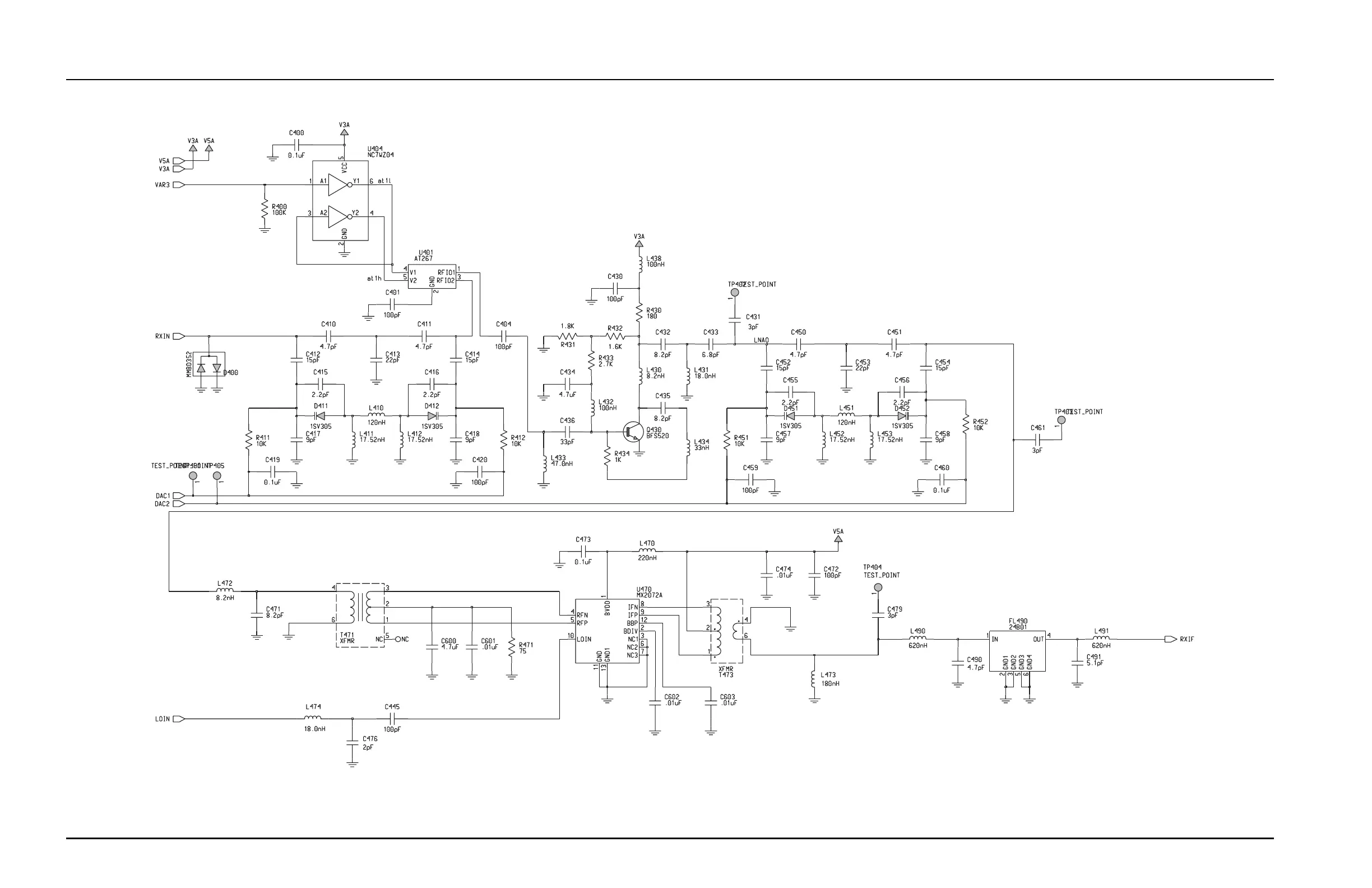

Figure 8-33. NLE4272H UHF Range 1 Receiver Front End (RX_FE) Circuit
