Motorola ASTRO XTS 5000 Detailed Service Manual

November 16, 2006 6881094C31-E
6-8 Troubleshooting Waveforms: Transmit Baseband Interface Port (TX BBP)
6.8 Transmit Baseband Interface Port (TX BBP)

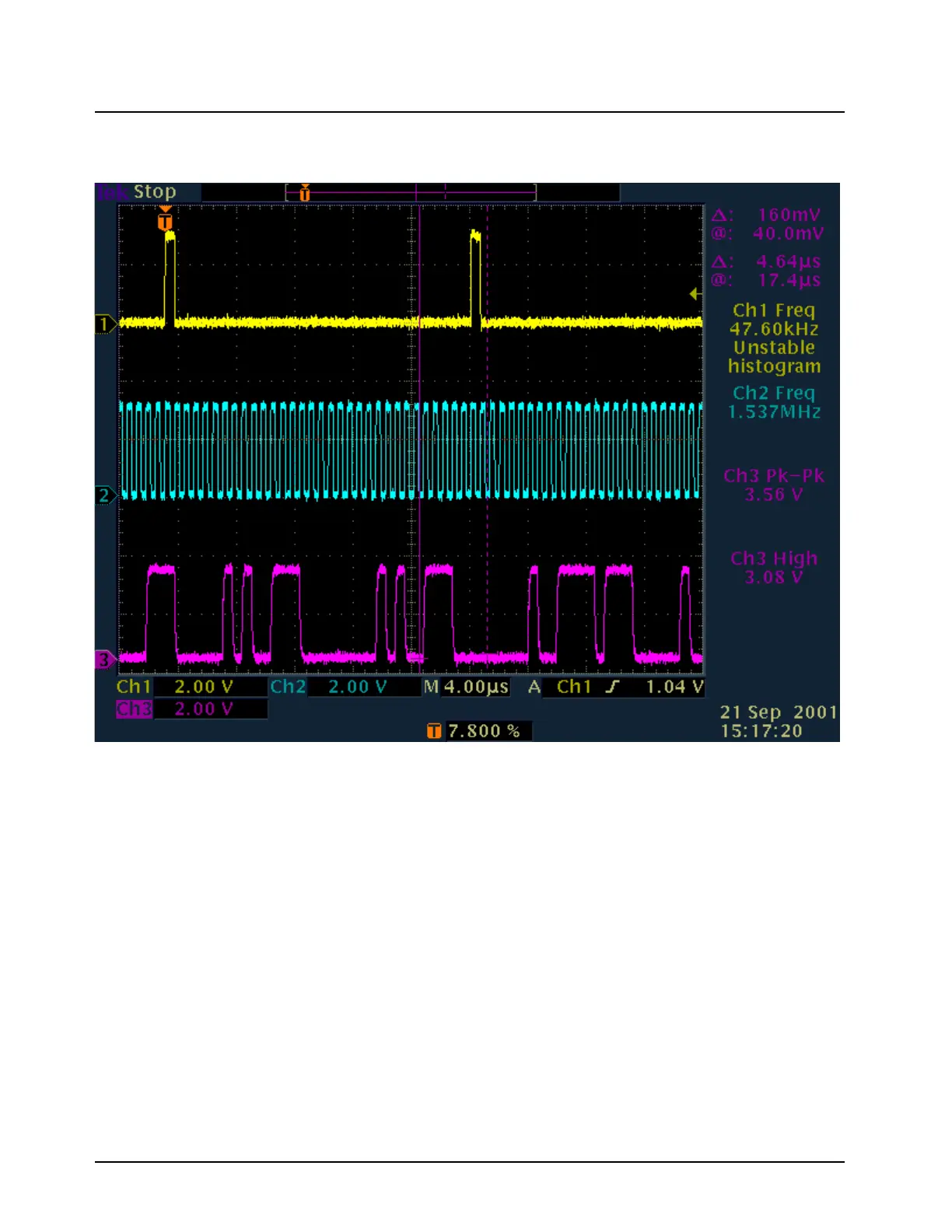

Trace 1: BBP TX frame sync signal at R119 or R132 (NNTN5567).
Trace 2: BBP TX clock signal at R125 or R133 (NNTN5567).
Trace 3: BBP TX data signal at R127 or R126 (NNTN5567).
Figure 6-7. Transmit Baseband Interface Port (TX BBP) Waveforms
