Motorola ASTRO XTS 5000 Detailed Service Manual

6881094C31-E November 16, 2006
Troubleshooting Waveforms: SPI B Data 6-5
6.5 SPI B Data

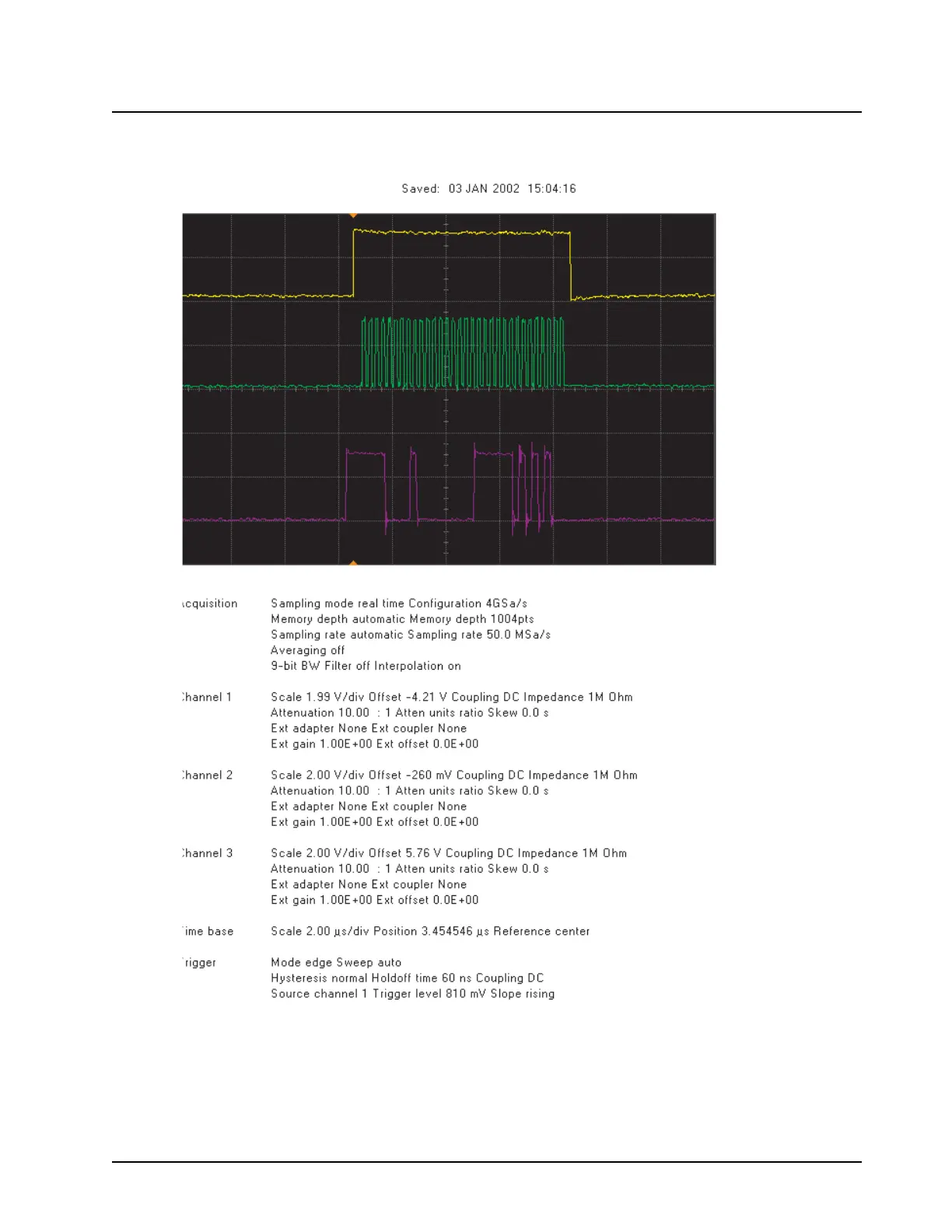

Trace 1: GCAP II IC chip enable at R539 (Note active high) or TP_MAKO_CE (NNTN5567).
Trace 2: SPI data clock at Test Point SCKB or at SCKB (NNTN5567).
Trace 3: SPI data to GCAP II IC at Test Point MOSIB or SPI data from Patriot at Test Point
MOSIB (NNTN5567).
Figure 6-4. SPI B Data Waveforms
MAEPF-27493-O

Motorola ASTRO XTS 5000 Specifications

General

Channel Capacity	1000 Channels
Emergency Button	Yes
GPS	Optional
Frequency Range	136-174 MHz, 380-470 MHz, 764-870 MHz
Dimensions	5.5 x 2.5 x 1.5 inches
Water Resistance	IP67
Digital Protocol	APCO P25 Phase 1 and Phase 2
Encryption	AES, DES
Display	LCD with backlight
MIL-STD-810	Meets MIL-STD-810 C/D/E/F/G
Battery Type	Li-Ion
Operating Temperature	-30°C to +60°C
