6- 10 M68000 8-/16-/32-BIT MICROPROCESSORS USER'S MANUAL MOTOROLA
EVEN BYTE
ODD BYTE
PROGRAM COUNTER LOW
PROGRAM COUNTER HIGH
SSP
7
0
7
0
0
15
STATUS REGISTER
HIGHER
A
DDRES
S

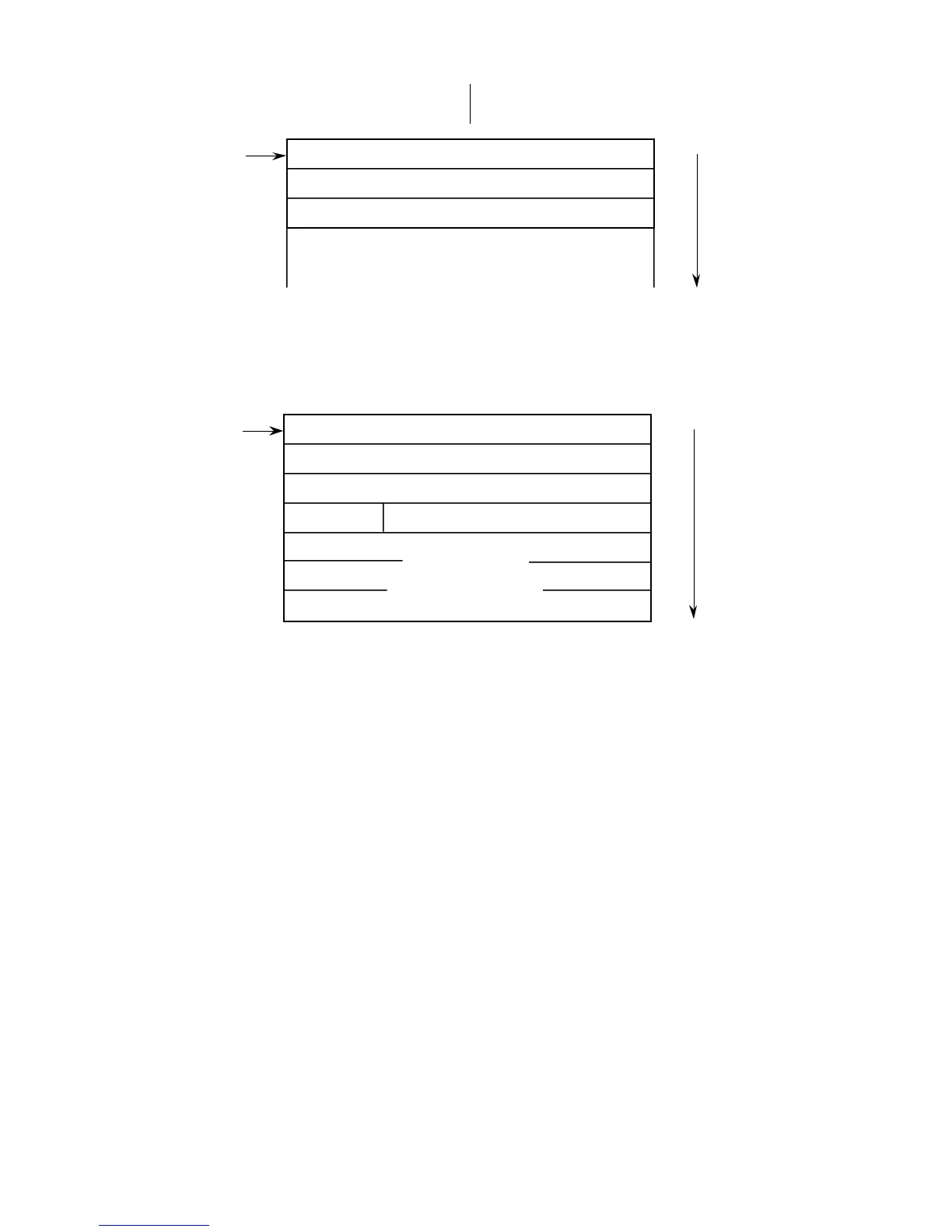

Figure 6-5. Group 1 and 2 Exception Stack Frame
(MC68000, MC68HC000, MC68HC001, MC68EC000, and MC68008)
PROGRAM COUNTER LOW
PROGRAM COUNTER HIGH
SP
0
15
STATUS REGISTER
HIGHER
A
DDRES
S
VECTOR OFFSET
FORMAT
OTHER INFORMATION
DEPENDING ON EXCEPTION
Figure 6-6. MC68010 Stack Frame
