6 - 6 MC75 User Guide
VCD7X00 Vehicle Cradle
This section describes how to use a VCD7X00 vehicle cradle with the MC75. For cradle installation and
communication setup procedures refer to the MC75 Integrator Guide.
Once installed in a vehicle, the cradle:
•
holds the MC75 securely in place
•
provides power for operating the MC75
•
provides a serial port for data communication between an MC75 and an external device (e.g., a printer)
•
re-charges the battery in the MC75
•
re-charges a 3600 mAh or 4800 mAh spare battery.
Charging the MC75 Battery
Insert the MC75 into the vehicle cradle to begin charging. A click indicates that the MC75 button release locking
mechanism is enabled and the MC75 is locked in place.

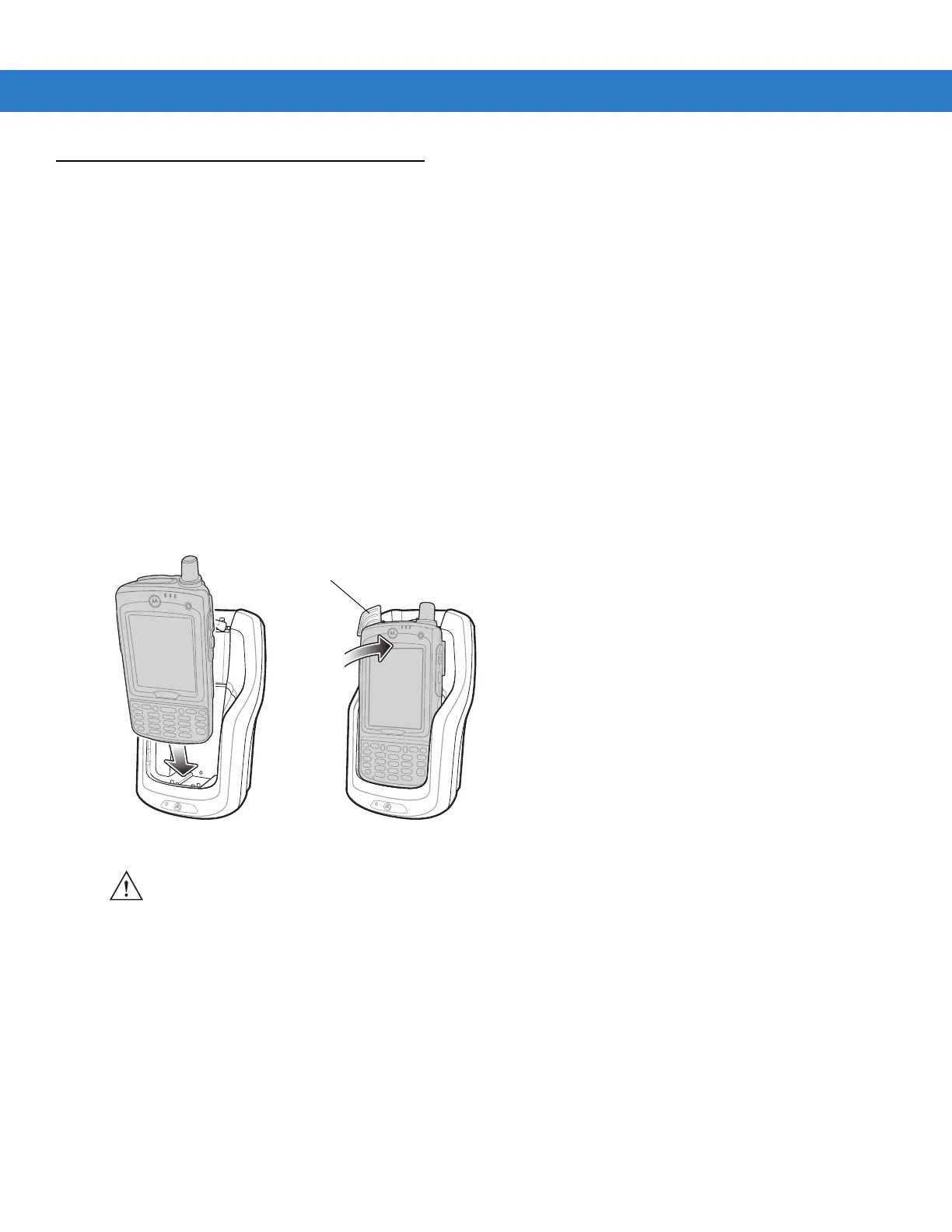

Figure 6-5
MC75 Battery Charging
Removing the MC75
To remove the MC75, hold back the release lever on the cradle and pull the MC75 up and out of the cradle.
CAUTION Ensure the MC75 is fully inserted in the cradle. Lack of proper insertion may result in property damage
or personal injury. Motorola is not responsible for any loss resulting from the use of the products while
driving.
