6 - 14 MC75 User Guide

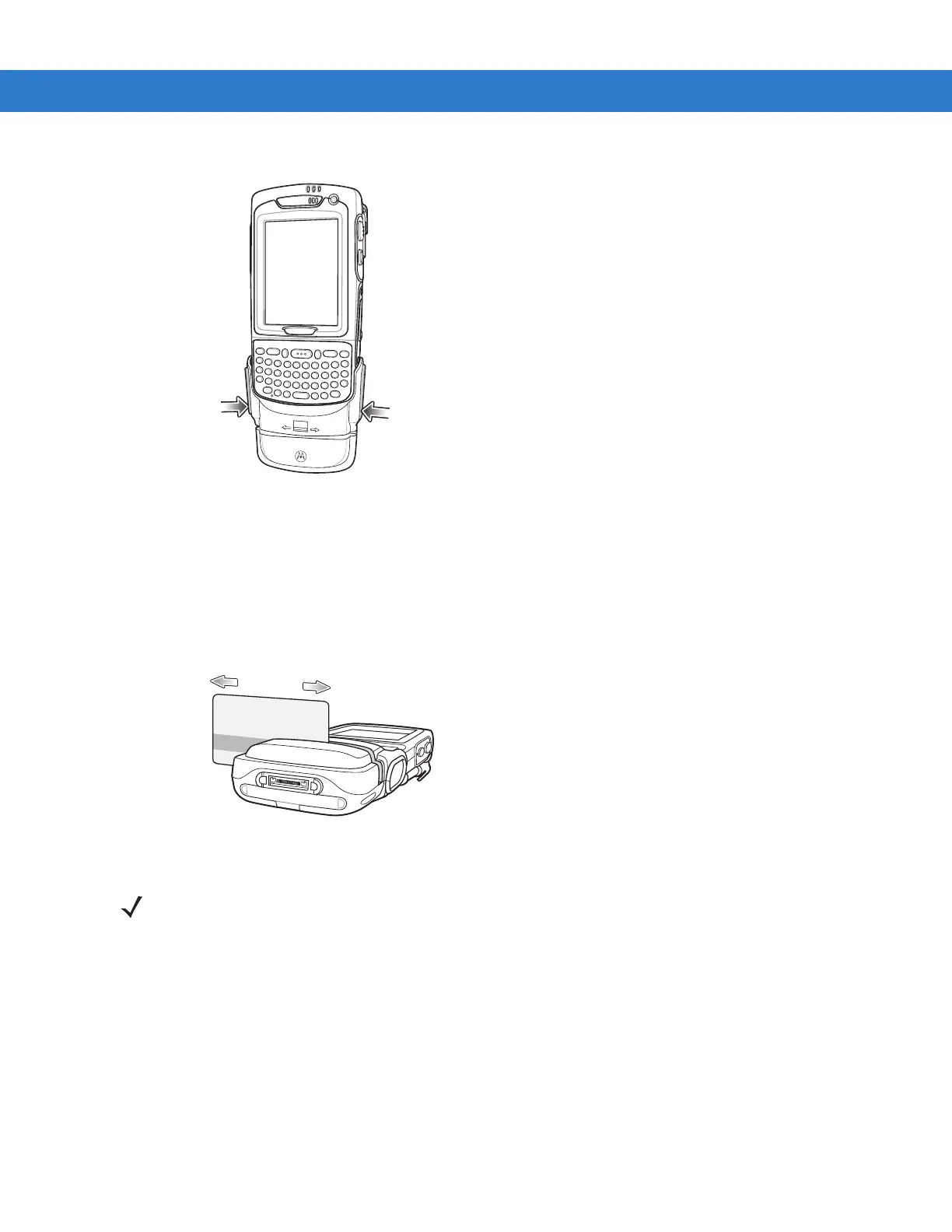

Figure 6-14
DCR Removal
Credit Card Transactions
Launch a transaction application on the MC75. In the application, select Credit Card transaction.
Swipe the credit card through the magnetic stripe reader (MSR) slot, orienting the magnetic stripe as shown. Data
encoded on the credit card is captured and, depending on the application, may display in an application data field.
Figure 6-15
Swipe Card
Debit Card Transactions
Launch a transaction application on the MC75. In the application, select Debit Card transaction.
Swipe the debit card through the MSR slot, orienting the magnetic stripe as shown. Data encoded on the debit card
is captured and, depending on the application, may display in an application data field.
NOTE Swipe the card in either direction, from left to right, or right to left. For best results, gently press down on the
card while swiping to ensure contact with the bottom of the slot.
