MAINTENANCE 6 - 23

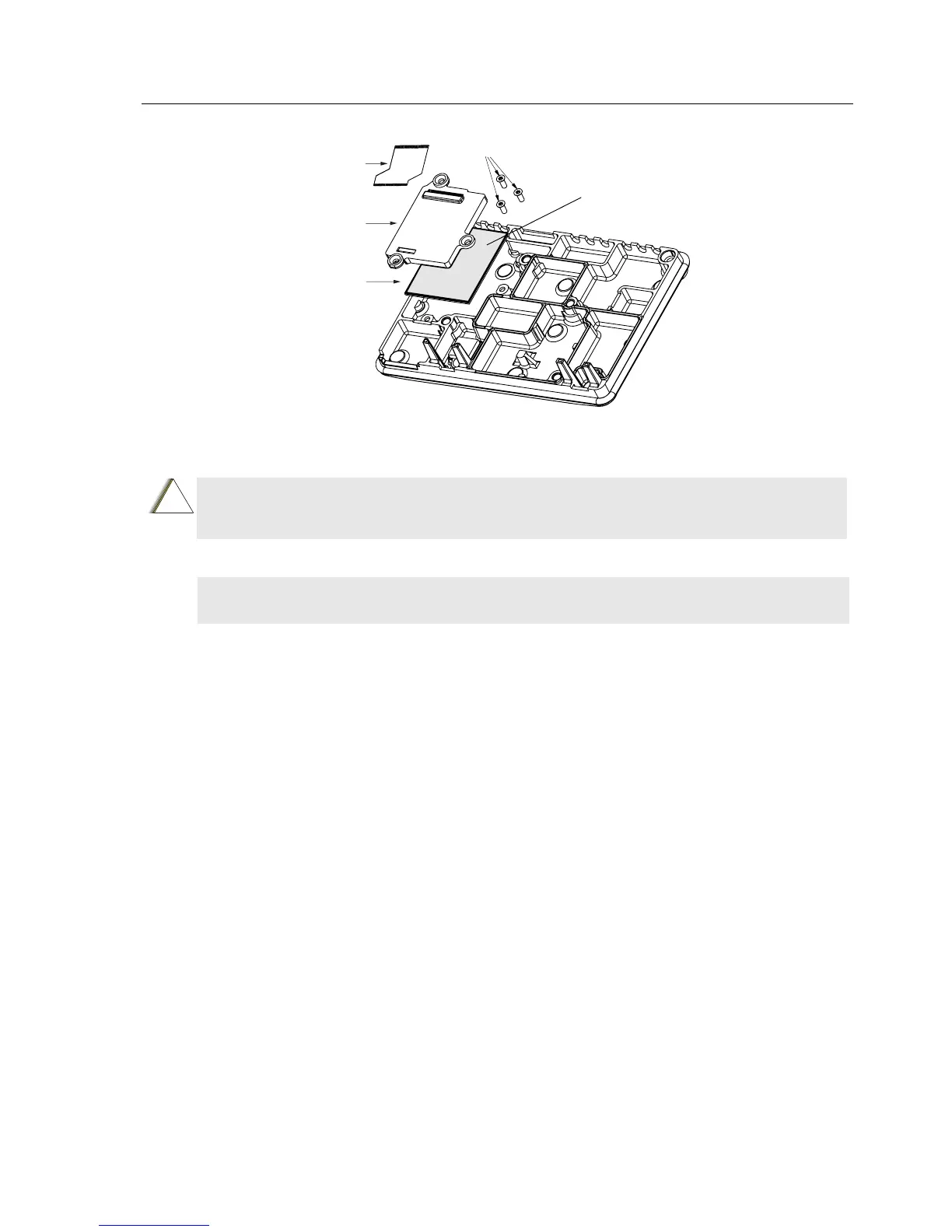

Figure 6-15 Location of additional UCM Board inside the Cover Plate
CAUTION: There is a flex installed connecting the UCM board to the main board. Take extra
care not to tear off the flex when dis-assembling or re-assembling the board from/to the
transceiver cover plate or this could damage the UCM board and the main board.
NOTE:
CLN8041_ UCM board/CLN8382_ UCM board/CLN8526_ UCM-M board is not repairable.
Order a replacement board if necessary.
0b
0a
0c
20d
UCM board inside the cover plate
!
