Symbol LS7708 Product Reference Guide13-12

Enable/Disable Bookland EAN

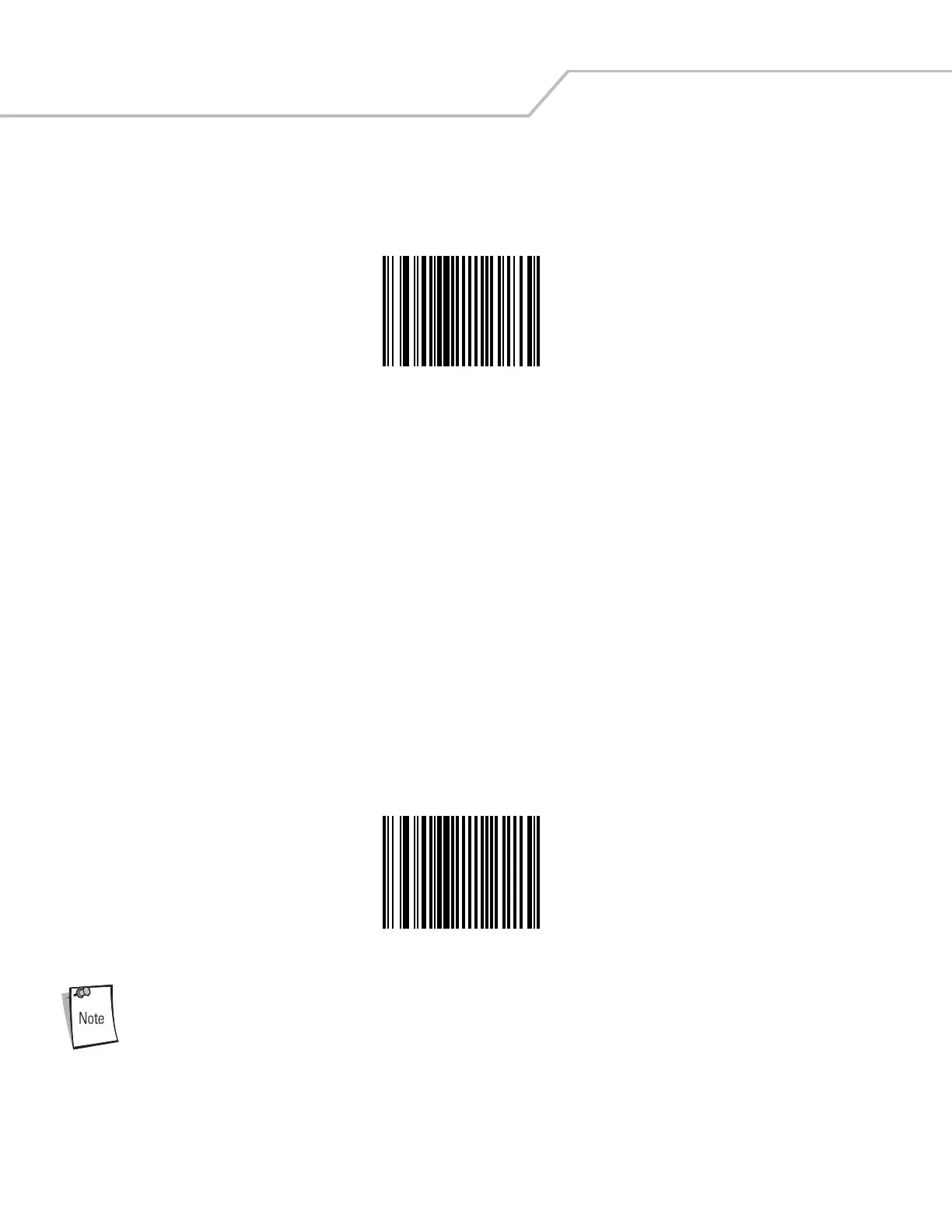

To enable or disable Bookland EAN, scan the appropriate bar code below.

Enable Bookland EAN

*Disable Bookland EAN

If you enable Bookland EAN, select a Bookland ISBN Format on page 13-34. Also select either Decode UPC/EAN

Supplementals, Autodiscriminate UPC/EAN Supplementals, or Enable 978/979 Supplemental Mode in Decode UPC/EAN

Supplementals on page 13-13.
