Symbol LS7708 Product Reference Guide3-4
Replacing the Scanner Window
To replace the scanner window:
1. Reach under the lip of the front panel and lift it away from the scanner.

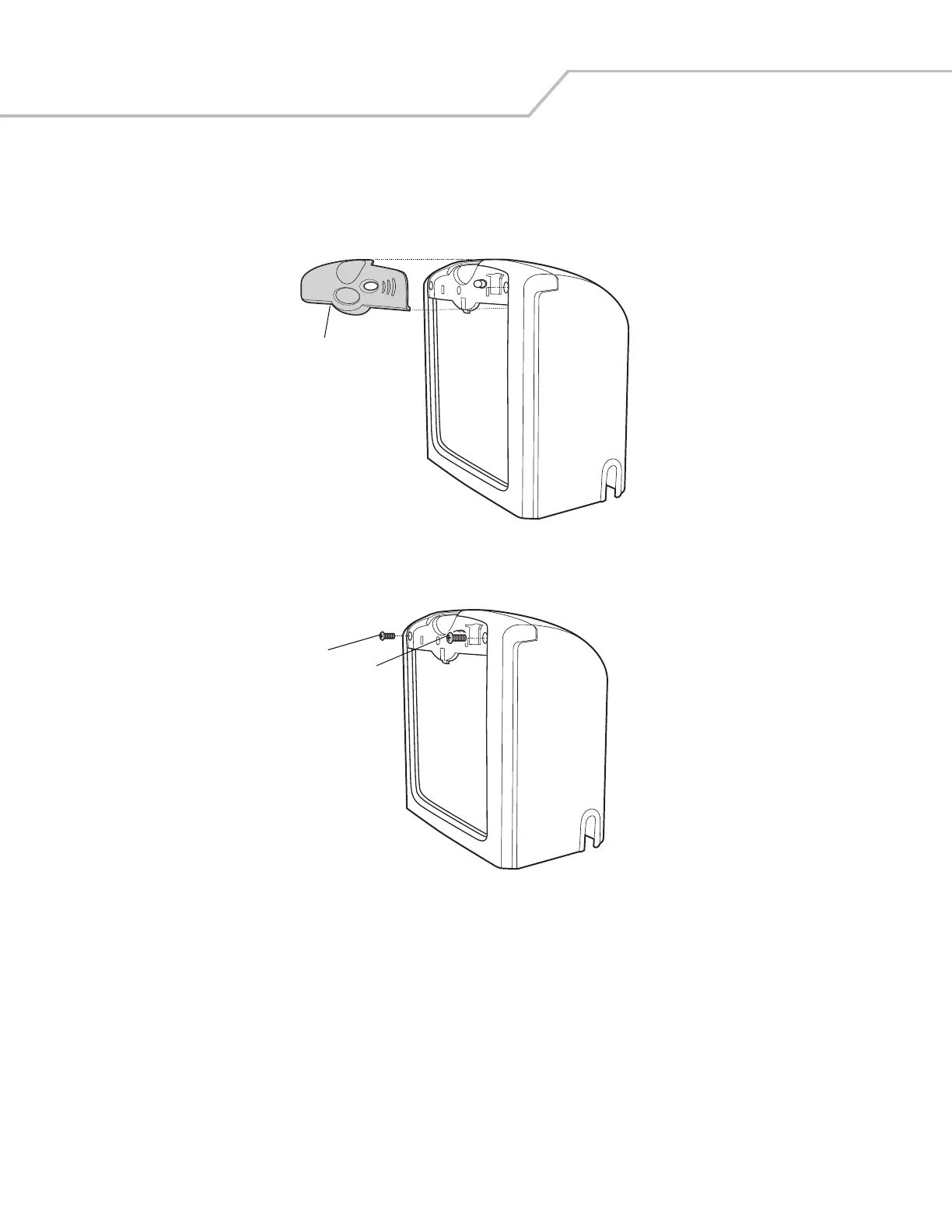

Figure 3-1. Removing the Front Panel
2. Unfasten the screws behind the panel that secure the window frame.)
Figure 3-2. Unfastening the Screws that Secure the Window Frame
3. Tilt the loosened window frame forward far enough to gain access to the exit window.
4. Carefully remove the exit window from the window frame.
Front Panel
Screw
Screw
