Movincool CM 25 - Page 31

Operation Section
31
For WMC supplied with the CM 25 serial number from 0113XXXXC25 to present
• If the reading of the room temperature value is not accurate, adjustment can be done by setting
the DIP switch located inside the WMC using the table shown below as reference.
• Label of model name is located on the back cover of WMC.
CAUTION
To avoid static electricity, do not touch the solder joints or the non-insulated parts on the
controller board.
< NOTE >
Set the DIP switch 4 to 8 to OFF positions.

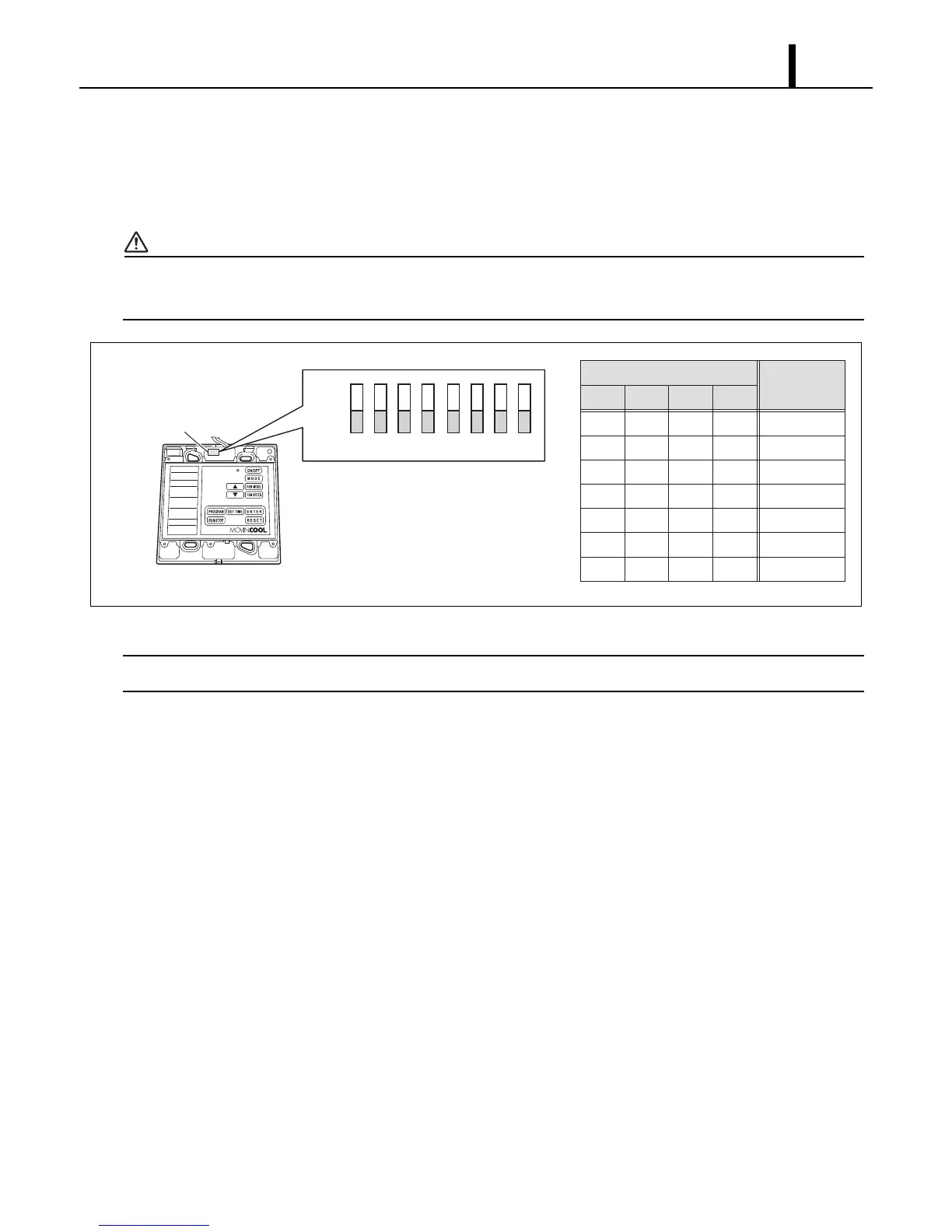

ILL00683-00
56781234
DIP Switch
ON
OFF
DIP Switch Position
4 ~ 8
Temperature
Values
OFF
OFF
OFF
OFF
OFF
DEFAULT
+1
+2
+3
-1
OFF -2
OFF -3
3
OFF
OFF
ON
ON
OFF
ON
ON
2
OFF
ON
OFF
ON
ON
OFF
ON
1
OFF
OFF
OFF
OFF
ON
ON
ON
