Movincool CM 25 - Removal of Condenser Fan Assembly

Repair Section
73

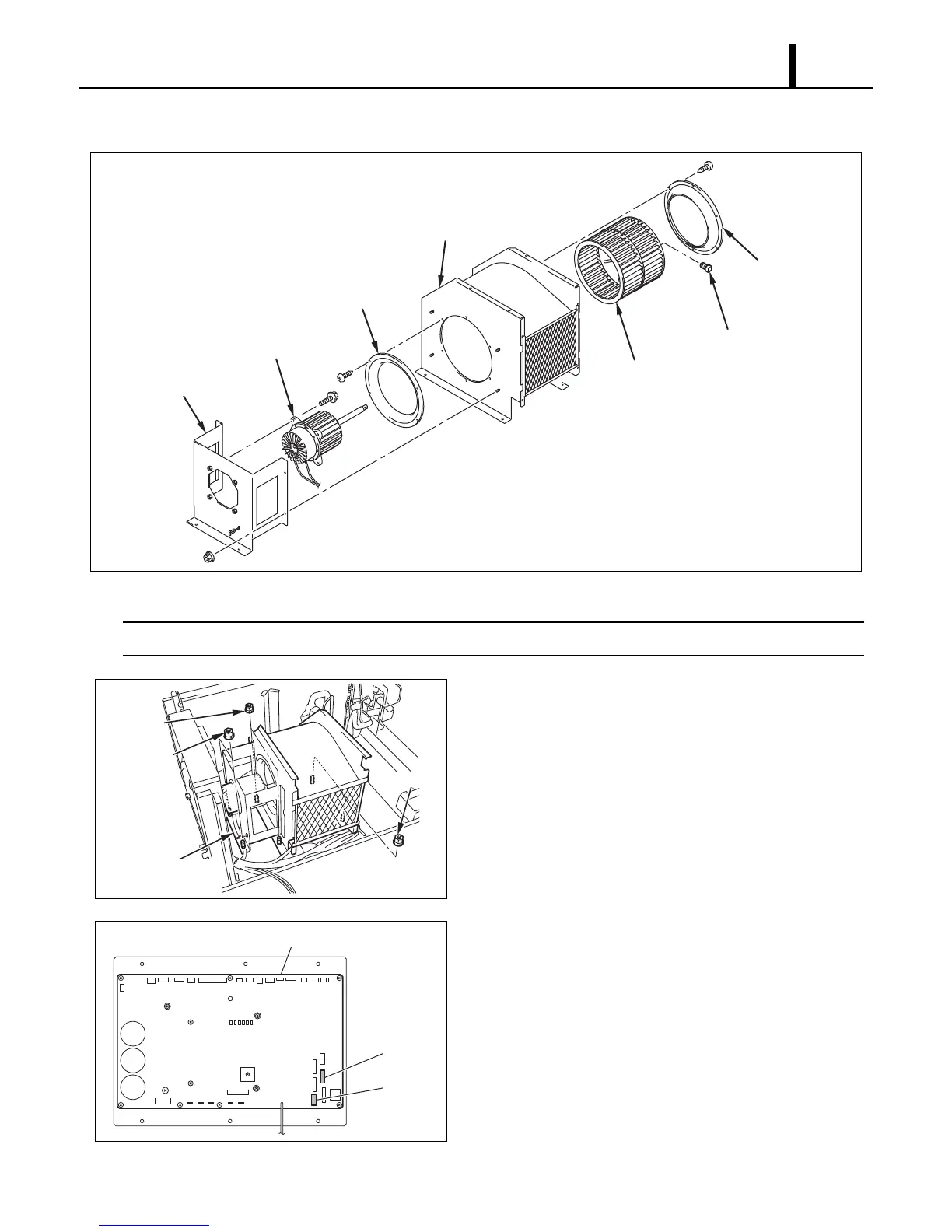

7.4 Removal of Condenser Fan Assembly
< NOTE >
Initialization is required after replacing the condenser fan motor. (See page 61)
1) Take off the six (6) nuts.
2) Disconnect the motor connectors (white, 4-pin
and white, 6-pin) from relay board CN1, CN2,
and remove the condenser fan assembly.
I003134
Frame
Frame
Motor
Ring
Ring
Fan
Set Screw
I003135
Nuts (2)
Condenser Fan
Assembly
Nuts (2)
Nuts (2)
ILL00685-00
16
CN2
Relay Board
CN1
