7. DISASSEMBLY
WARNING
• Disconnect power supply from the unit before performing any service. Beware that some
residual voltage may remain in the unit immediately after the power is disconnected.
7.1 Parts Construction

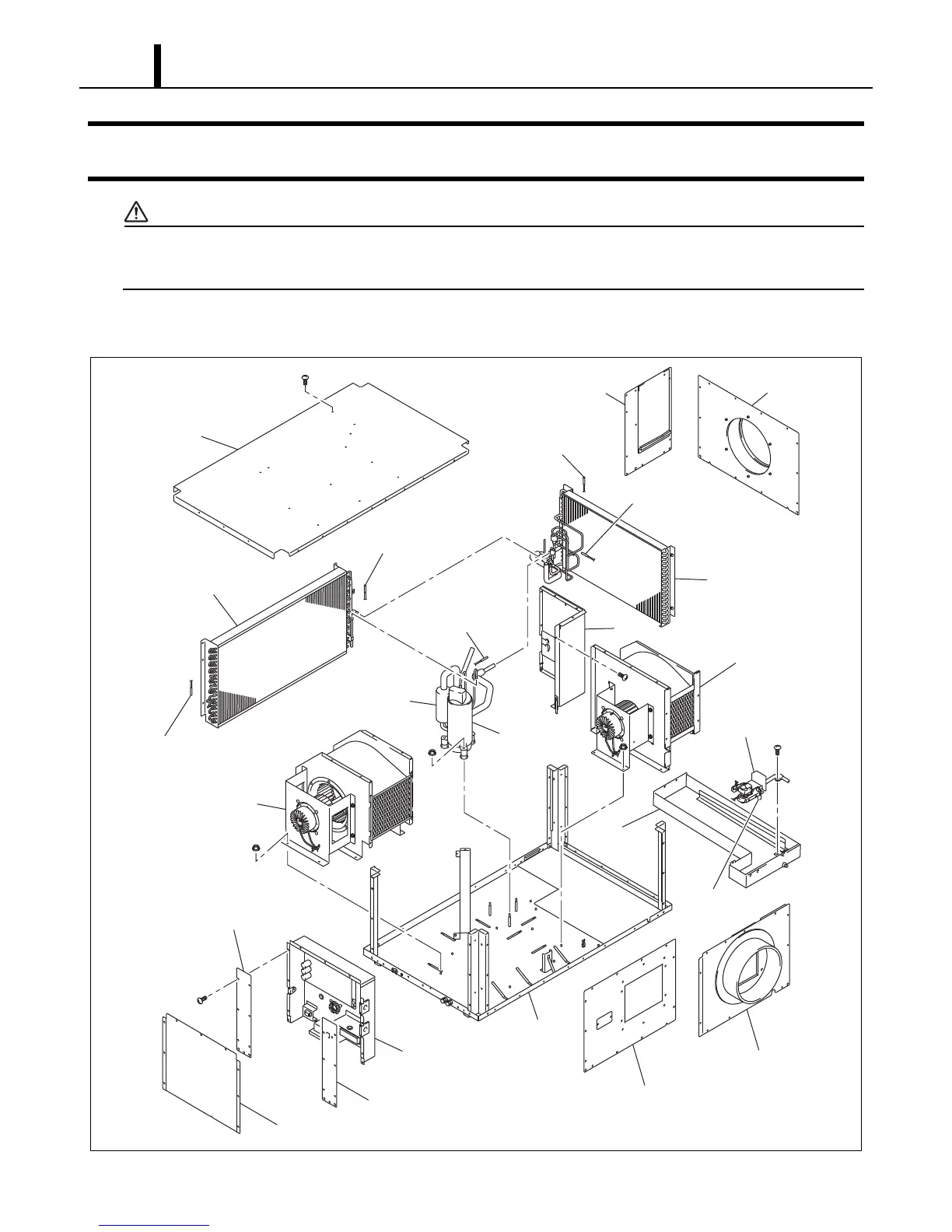

ILL00667-00
Top Panel
Frame
Front Left Panel
Front Right Panel
Control Box
Condenser
Right Panel
Evaporator
Rear Panel
Drain Pan
Frame
Internal
Drain Pump
Compressor
Accumulator
Condenser
Thermistor (CTS1)
Condenser Inlet Air
Thermistor (ODS)
Evaporator Inlet Air
Thermistor (RTS2)
Evaporator Pipe
Inlet Thermistor (CTS2)
Service Panel
Left Panel
Left Panel
Evaporator
Pipe Outlet
Thermistor (CTS3)
Condenser Fan
Evaporator Fan
Float Switch
