Operation Section
40

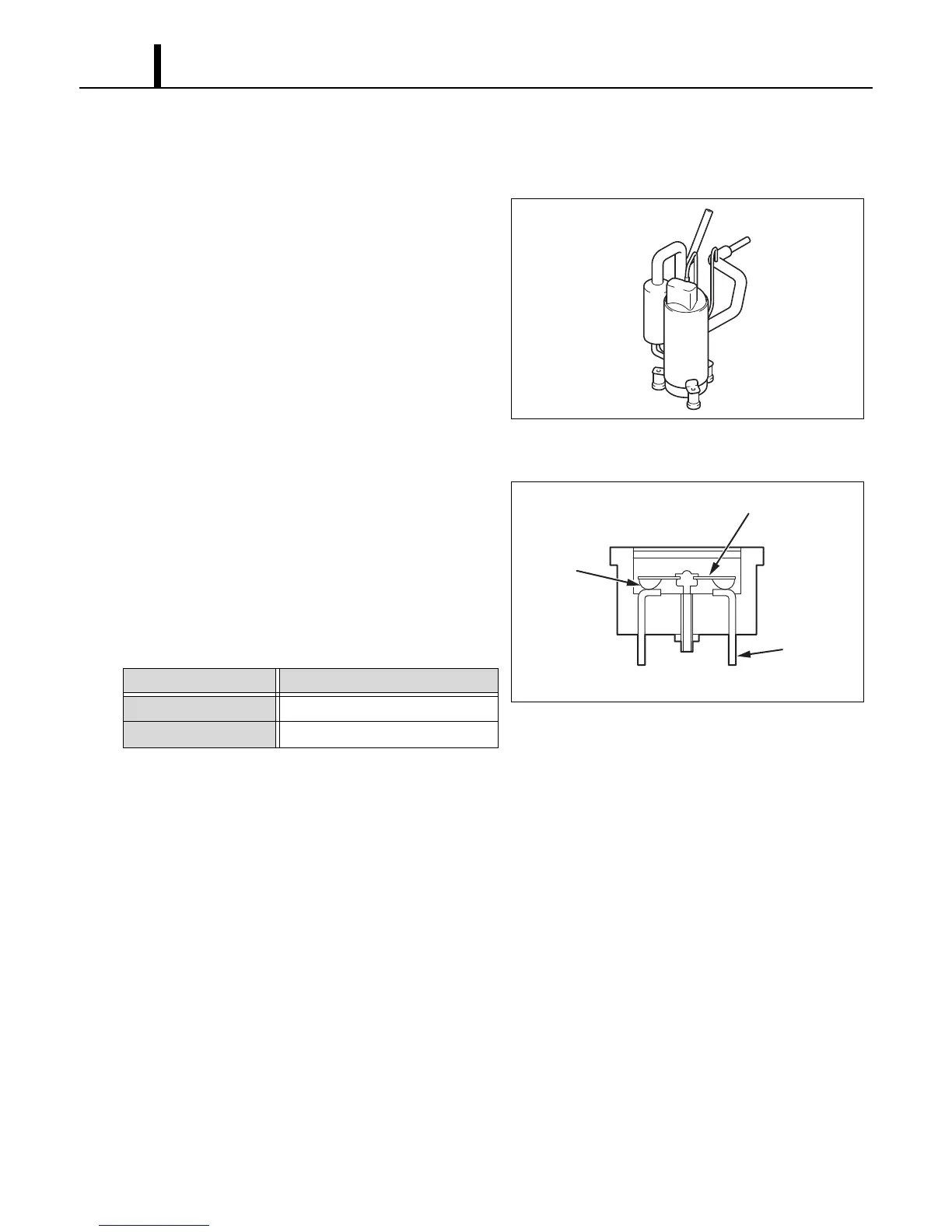

5.18 Compressor
(1) Compressor motor
• The CM 25 uses an inverter-controlled DC
compressor. The compressor motor is
operated by three-phase voltage outputted
from the STI module on the relay board.
Specifications:
- Rated Voltage: DC 220 V
- Rated Output: 1380 W
(2) Compressor overload relay
• An external compressor overload relay is used
to protect the compressor motor. This relay is
mounted within the connector housing that
attaches to the top of the compressor. The
relay interrupts high temperature build-up in
the compressor.
Specifications:
Temperature
Contact Open 248°F (120°C)
Contact Close 203°F (95°C)
I001691
Bimetal
Terminal
Points
