Repair Section
64

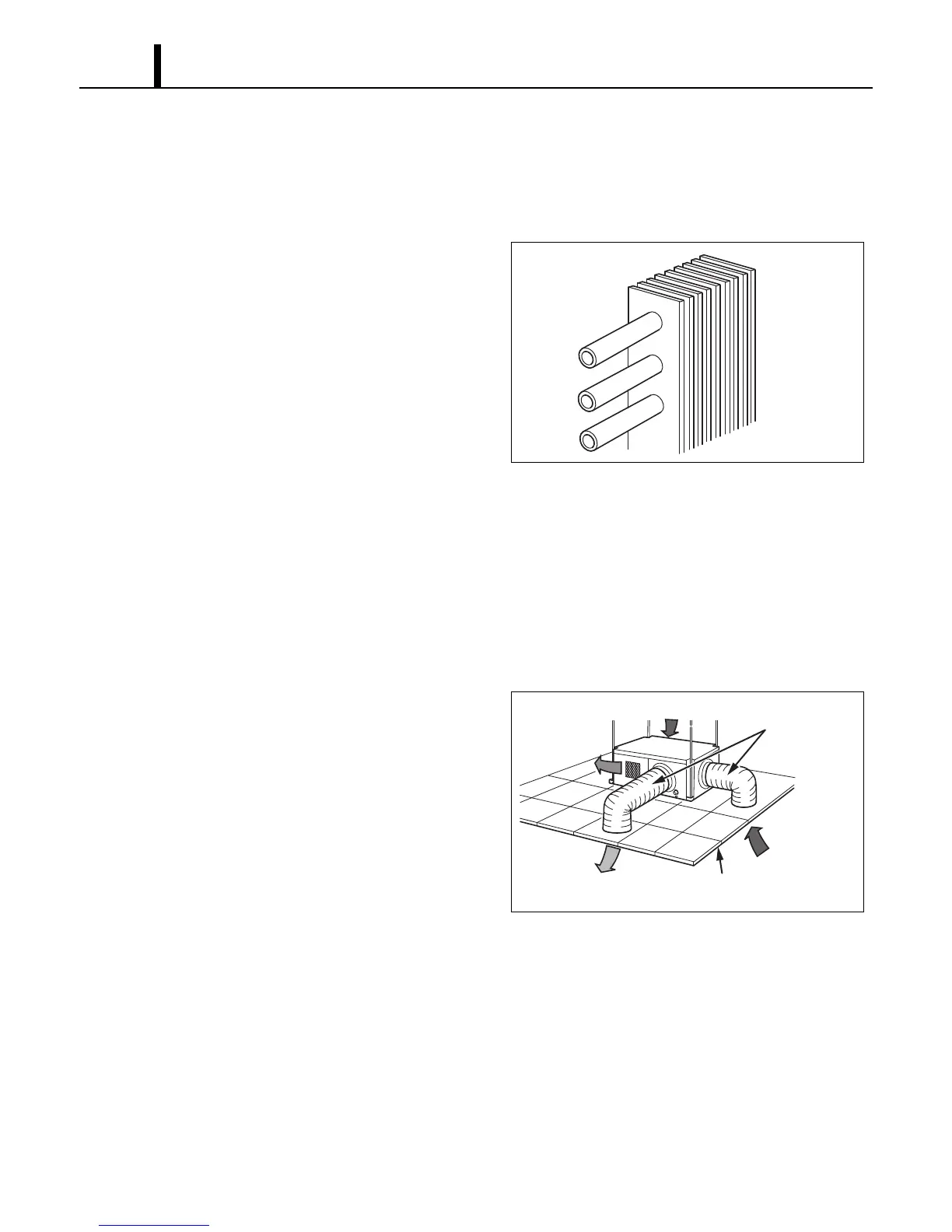

6.9 Basic Inspection
• Perform the following inspection before disassembly.
(1) Inspection of plate fins
• To inspect the plate fins of either the
evaporator or condenser, the air filter must be
removed. After removal of the air filters, inspect
the plate fins for any dirt, dust, lint, or debris
that may have caused insufficient cooling
performance of the unit. If cleaning of the fins
is necessary, it is recommended that this
service be performed by a qualified service
technician.
(2) Examination of operating environment
• Operating environments can vary depending on location, climate and surrounding conditions.
Installation location also can cause operational problems. Consult your reseller concerning
operational environment requirements.
(3) Inspection of cooling capacity performance
• Measure the difference in temperature
between the inlet of the evaporator and the
cool air vent. If the difference is out of the range
given in the graphs on page 10, proceed with
the remedy suggested in the troubleshooting
chart on page 50 to 55.
I003193
Room
Air Intake
Cool Air Supply
(Evaporator)
Condenser
Exhaust
Condenser Intake
Insulated
Flexible Duct
Return Air Grill
With Filter Required
To Next Page
