4. REFRIGERATION SYSTEM
4.1 Refrigeration System Construction
The component parts of the refrigeration system include the following:
• Compressor, Evaporator, Condenser, Accumulator, Electronic expansion valve
These parts are all connected by copper tubing. All the connections are brazed.

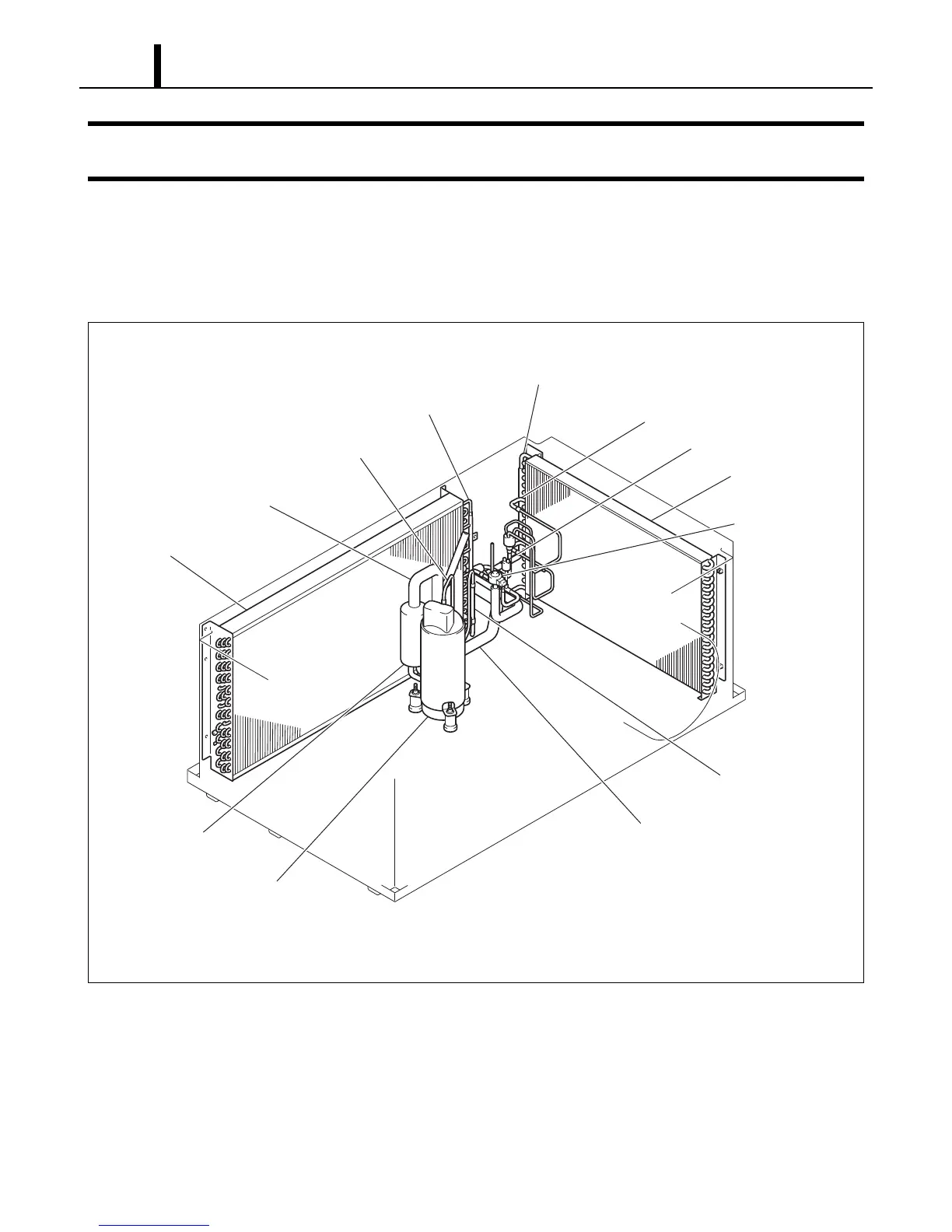

ILL00681-00
Compressor Suction Pipe
(Insulated)
Connecting Pipe
Evaporator Inlet Pipe
Evaporator Outlet Pipe Assembly
Evaporator
Electronic
Expansion Valve
Compressor
Accumulator
Condenser
Condenser
Outlet Pipe
Condenser Inlet Pipe
Compressor
Discharge Pipe
High-Pressure Switch
