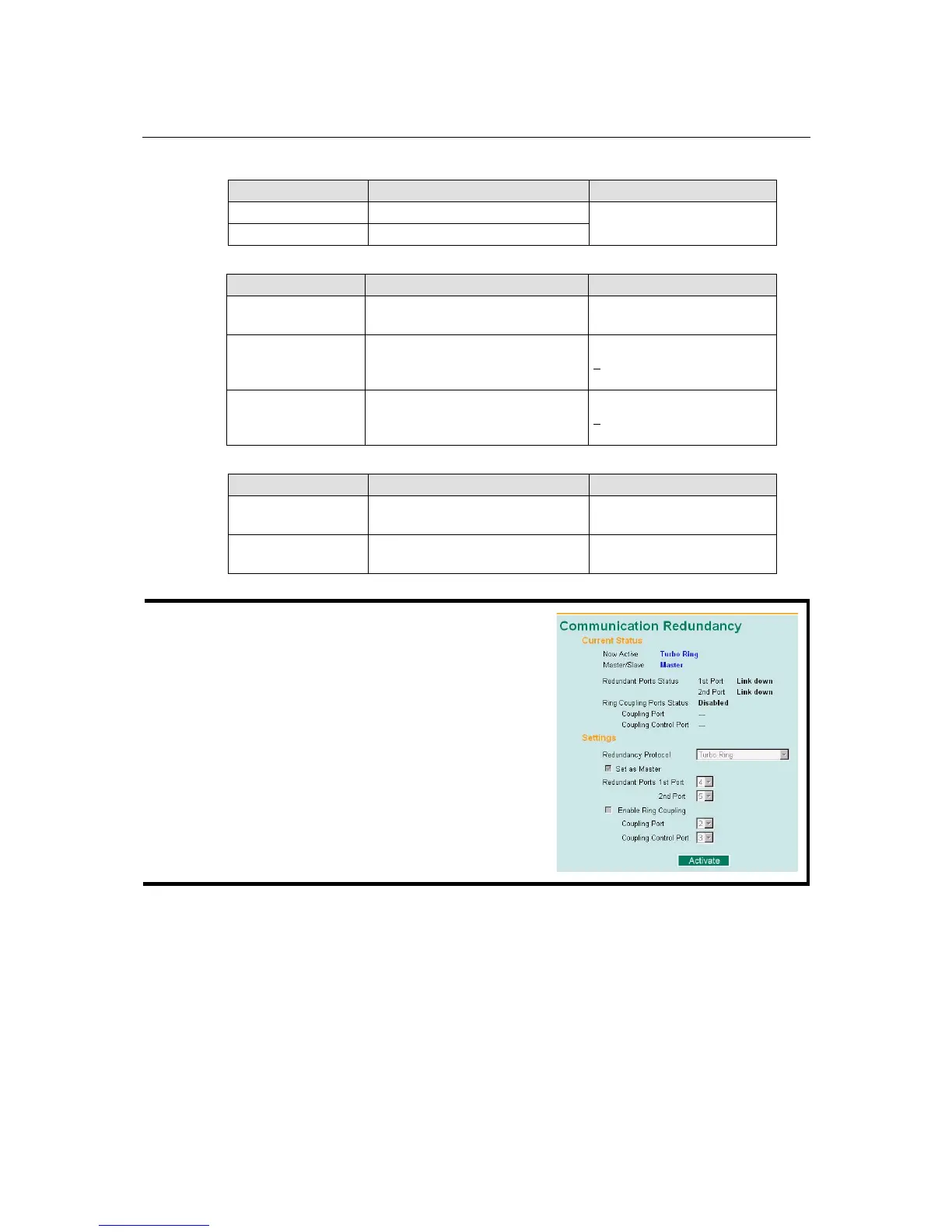

EDS-510A Series User’s Manual Featured Functions
3-37
Enable Ring Coupling
Setting Description Factory Default
Enable Select this EDS as Coupler
Disable Do not select this EDS as Coupler
Not checked
Coupling Mode
Setting Description Factory Default
Dual Homing
Select this item to change to the
Dual Homing configuration page
Primary Port: port G1
Backup Port: port G2
Ring Coupling
(backup)
Select this item to change to the
Ring Coupling (backup)
configuration page
p
ort G1
Ring Coupling
(primary)
Select this item to change to the
Ring Coupling (primary)
configuration page
p
ort G1
Primary/Backup Port
Setting Description Factory Default
Primary Port
Select any port of the EDS to be the
primary port.
port G1
Backup Port
Select any port of the EDS to be the
backup port.
port G2
NOTE
The Turbo Ring DIP Switches located on the
EDS-510A’s outer casing can be used to configure the
EDS’s Turbo Ring protocols. (For details on how to do
this, refer to “Configuring Basic Settings—Turbo Ring
DIP Switch” section in this manual.)
If you use the web interface, console interface, or
Telnet interface to enable the Turbo Ring DIP
Switches, and then set DIP Switch 4 on the switch’s
outer casing to the “ON” position, you will not be able
to use the web interface, console interface, or Telnet
interface to change the status of the DIP Switch. In
this case, the Communication Redundancy settings
will be “grayed out” in the web browser as shown in
the following figure:
