ioLogik E1200 Series Using the Web Console

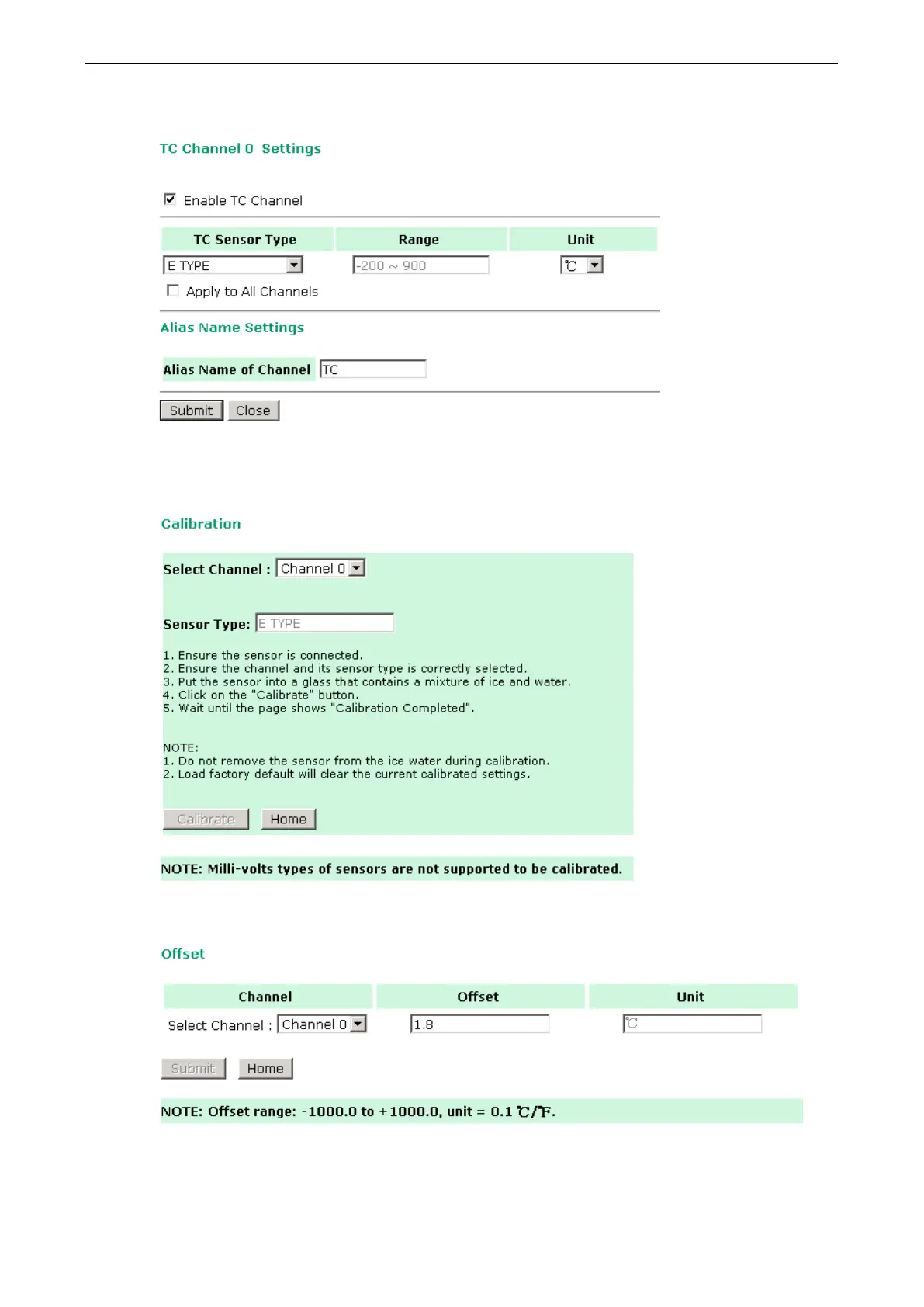

Click on a specific channel to enable or disable the TC channel. Select the Enable TC Channel checkbox and
then select the sensor type that meets the physical attachment to the ioLogik E1200.
The ioLogik E1200 allows you to calibrate the temperature sensors. In each channel configuration section,
follow the instructions and click the Calibrate button to start the TC sensor calibration. Each calibration
requires about 30 seconds per channel.
The ioLogik E1200 allows you to manually adjust the current temperature reading. In each channel
configuration section, select the channel, apply the offset value, and click the Submit button.
