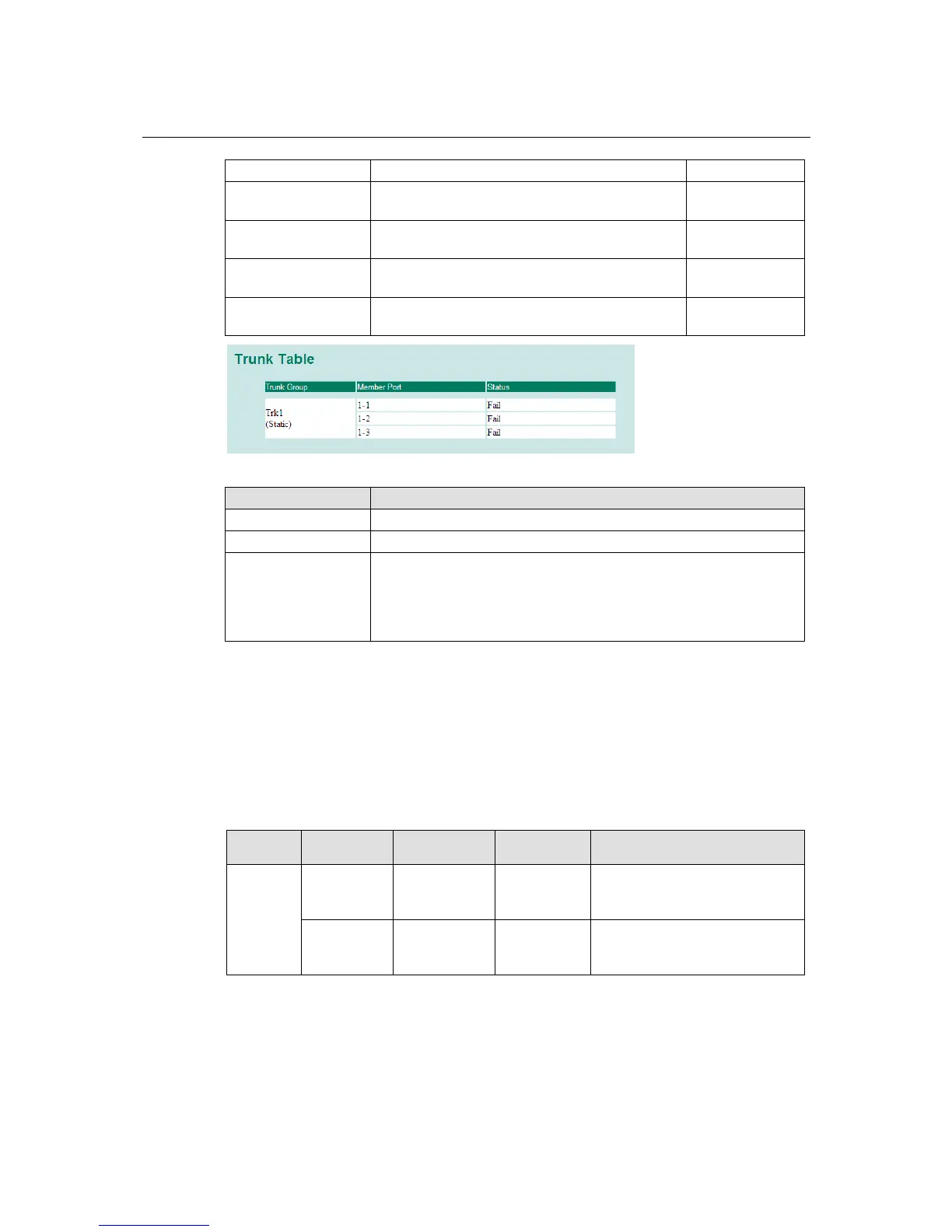

PT-7728 User’s Manual Featured Functions
3-17
Name This displays the specified name for each port. N/A
Speed
This indicates the transmission speed for each port
(100M-Full, 100M-Half, 10M-Full, or 10M-Half).
N/A
FDX flow control
This indicates if the FDX flow control of this port is
enabled or disabled.
N/A
Up
This is used to add selected ports into the trunk
group from available ports.
N/A
Down
This is used to remove selected ports from the trunk
group.
N/A
Trunk Table
Setting Description
Trunk group Displays the trunk type and trunk group.
Member port Displays the member ports that belong to the trunk group.
Status Success means port trunking is working properly.
Fail means port trunking is not working properly.
Standby means port trunking is working as a standby port. When there
are more than eight ports trunked as a trunking group, the 9
th
port will be
the standby port.
Configuring SNMP
The PT-7728 supports SNMP V1, V2c, and V3. SNMP V1 and SNMP V2c use a community
string match for authentication, which means that SNMP servers access all objects with read-only
or read/write permissions using the community strings public and private by default. SNMP V3
requires that you select an authentication level of MD5 or SHA, and is the most secure protocol.
You can also enable data encryption to enhance data security.
Supported SNMP security modes and levels are shown in the following table. Select the security
mode and level that will be used to communicate between the SNMP agent and manager.
Protocol
Version
UI Setting Authentication Encryption Method
SNMP V1,
V2c
V1, V2c
Read
Community
Community
string
No
This uses a community string
match for authentication.
V1, V2c
Write/Read
Community
Community
string
No
This uses a community string
match for authentication.
