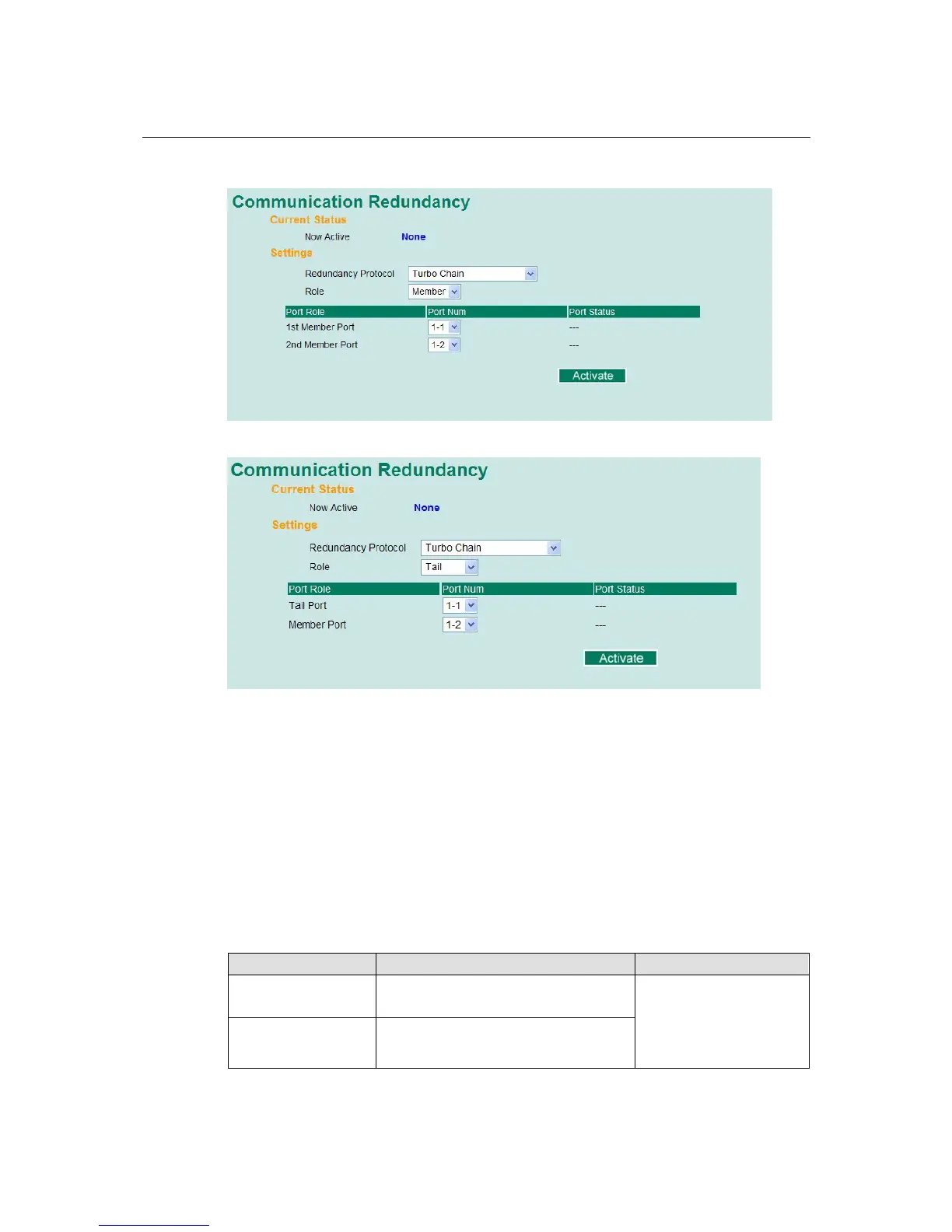

Member Switch Configuration
Tail Switch Configuration
Explanation of “Current Status” Items
Now Active
Shows which communication protocol is in use: Turbo Ring, Turbo Ring V2, Turbo Chain,
RSTP, or none.
The “Ports Status” indicators show Forwarding for normal transmission, Blocked if this port is
connected to the Tail port as a backup path and the path is blocked, and Link down if there is no
connection.
Explanation of “Settings” Items
Redundancy Protocol
Setting Description Factory Default
Turbo Ring
Select this item to change to the Turbo
Ring configuration page.
None
Turbo Ring V2
Select this item to change to the Turbo
Ring V2 configuration page.
