PT-7728 User’s Manual Featured Functions
3-11
Configuring IEEE 1588/PTP
Time synchronization may be accomplished using the IEEE Standard for a Precision Clock
Synchronization Protocol for Networked Measurement and Control Systems (IEEE
1588-2008) to synchronize real-time clocks incorporated within each component of the electrical
power device in power automation applications. For IEC 61850-9 operations, digital CTs and PTs
provide measured values of current and voltage through MUs to bay level IEDs with the process
bus. In any given system there may be a great number of MUs operating at once. These different
streams of sampled values must be accurately time-synchronized before they can be used.
SNTP is able to provide synchronization accuracy within about 1 ms. However, this is not precise
enough for raw data sampled values. Moxa’s PT-7728-PTP IEC 61850-3 fast Ethernet switches
support the latest version of IEEE 1588 v2 technology to fulfill precise time synchronization
requirements for protection and control applications. These Ethernet switches guarantee
time-stamping accuracy within 1 μs for the IEC 61850 process layer. They can be configured for
1558 v2 Master, Boundary Clock, and Transparent Clock functionality.

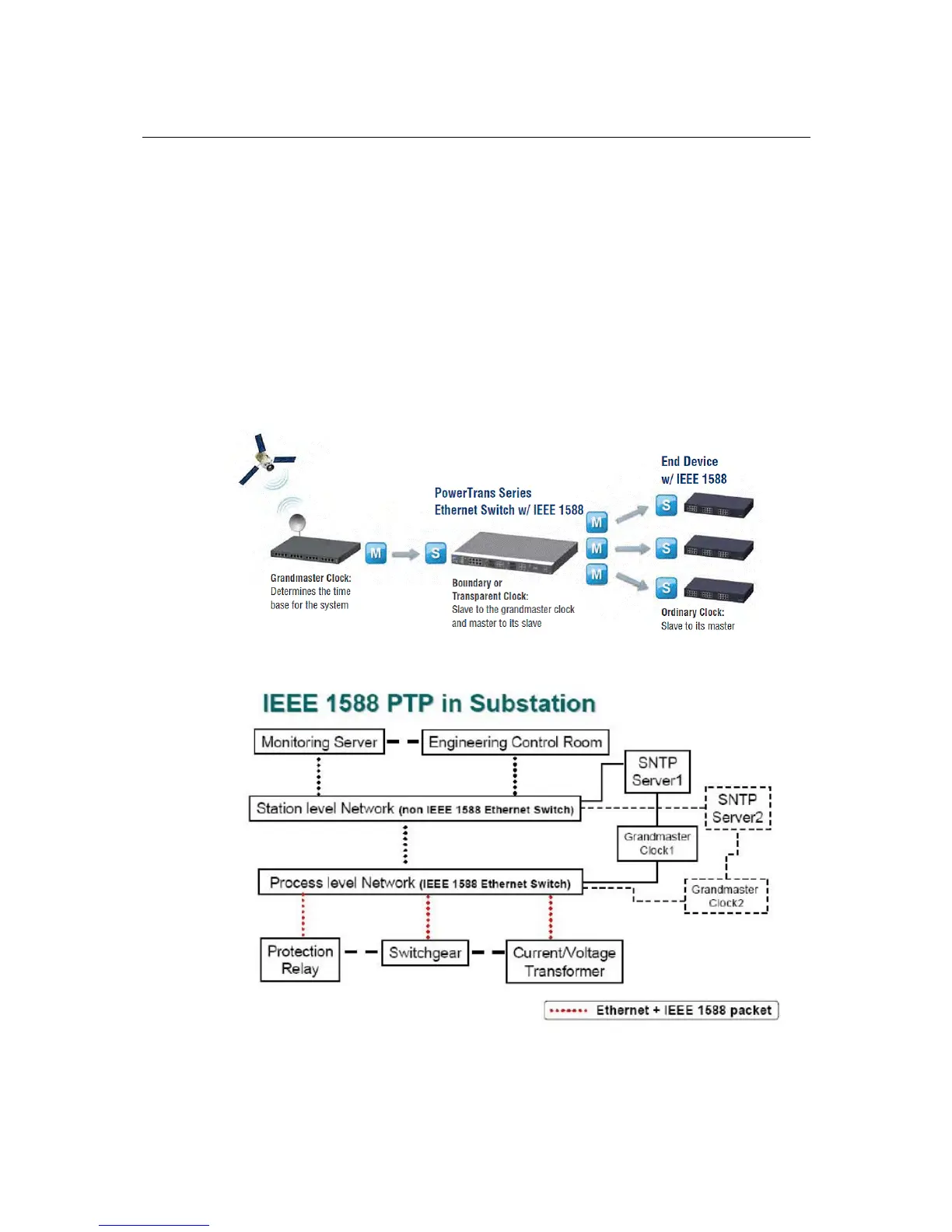

The following diagram shows a basic IEEE 1588 application hierarchy for substation automation.
