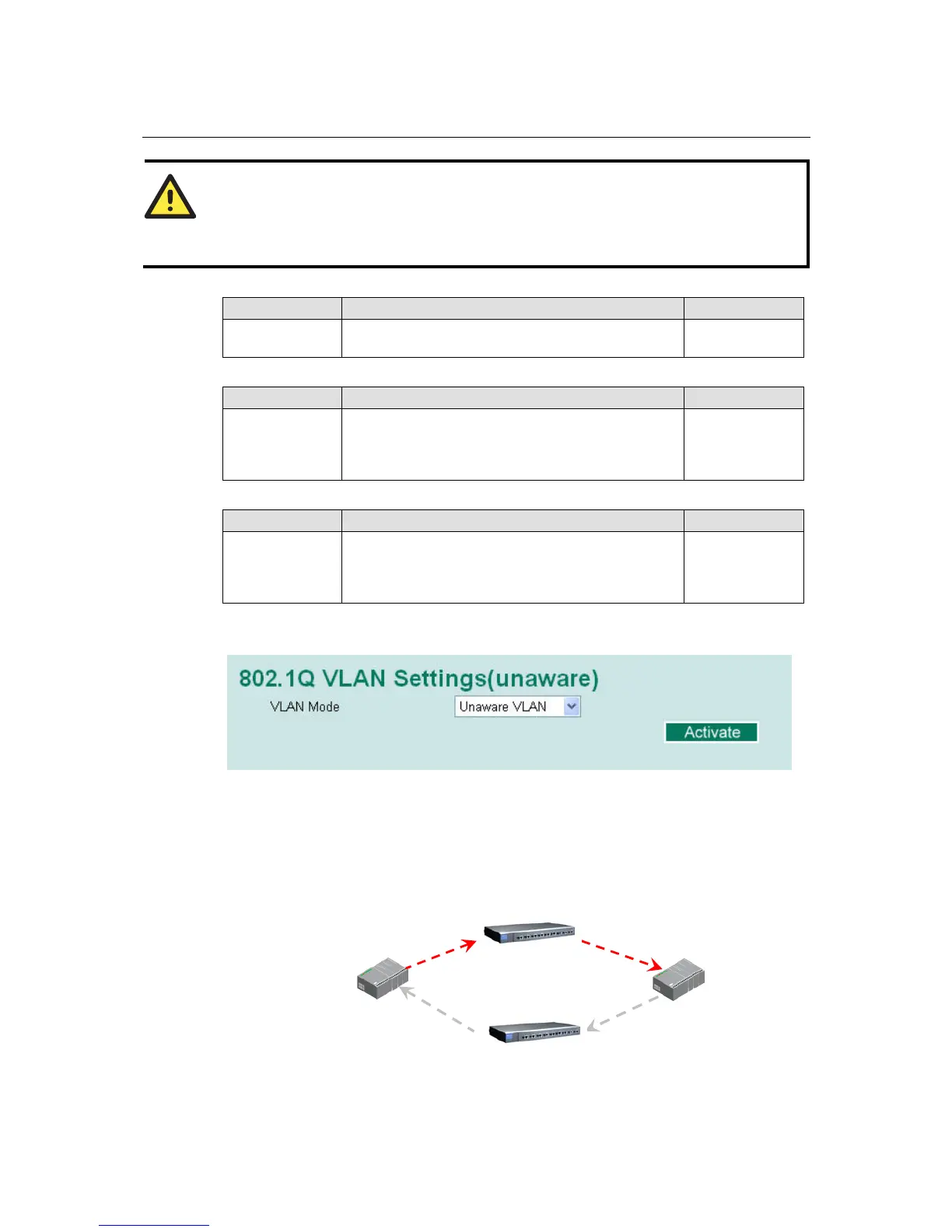

PT-7728 User’s Manual Featured Functions
3-50
ATTENTION
For communication redundancy in the VLAN environment, set Redundant Port Coupling Port
and Coupling Control Port as Trunk Port since these ports act as the backbone to transmit all
packets of different VLANs to different PT-7728 units.
Port PVID
Setting Description Factory Default
VID range from 1
to 4094
This sets the default VLAN ID for untagged devices that
connect to the port.
1
Fixed VLAN List (Tagged)
Setting Description Factory Default
VID range from 1
to 4094
This field will be active only when selecting the Trunk
port type. Set the other VLAN ID for tagged devices that
connect to the Trunk port. Use commas to separate
different VIDs.
None
Forbidden VLAN List
Setting Description Factory Default
VID range from 1
to 4094
This field will be active only when selecting the Trunk
port type. Set the VLAN IDs that will not be supported
by this trunk port. Use commas to separate different
VIDs.
None
Use the VLAN settings page to configure the PT-7728’s VLAN Unaware mode
For certain Power Substation scenarios, some applications may require priority-tagged frames to
be received by IEDs. To fulfill these requirements Moxa PT-7728 Series Ethernet switches allow
VLAN Unaware Mode operation.
I
I
E
E
D
D
I
I
E
E
D
D
Frames ingress a VLAN-unaware
switch and are not associated with
any VLAN.
VID=0
VID=0
PVID=2
F
To Next Page
