6 Installation and commissioning

555831400/02 EN

Prepare the cables before inserting into the cable gland:

1. Strip a length of at least 15mm of insulation from the cables.

2. Insulate the braid at the lower end with insulating tape.

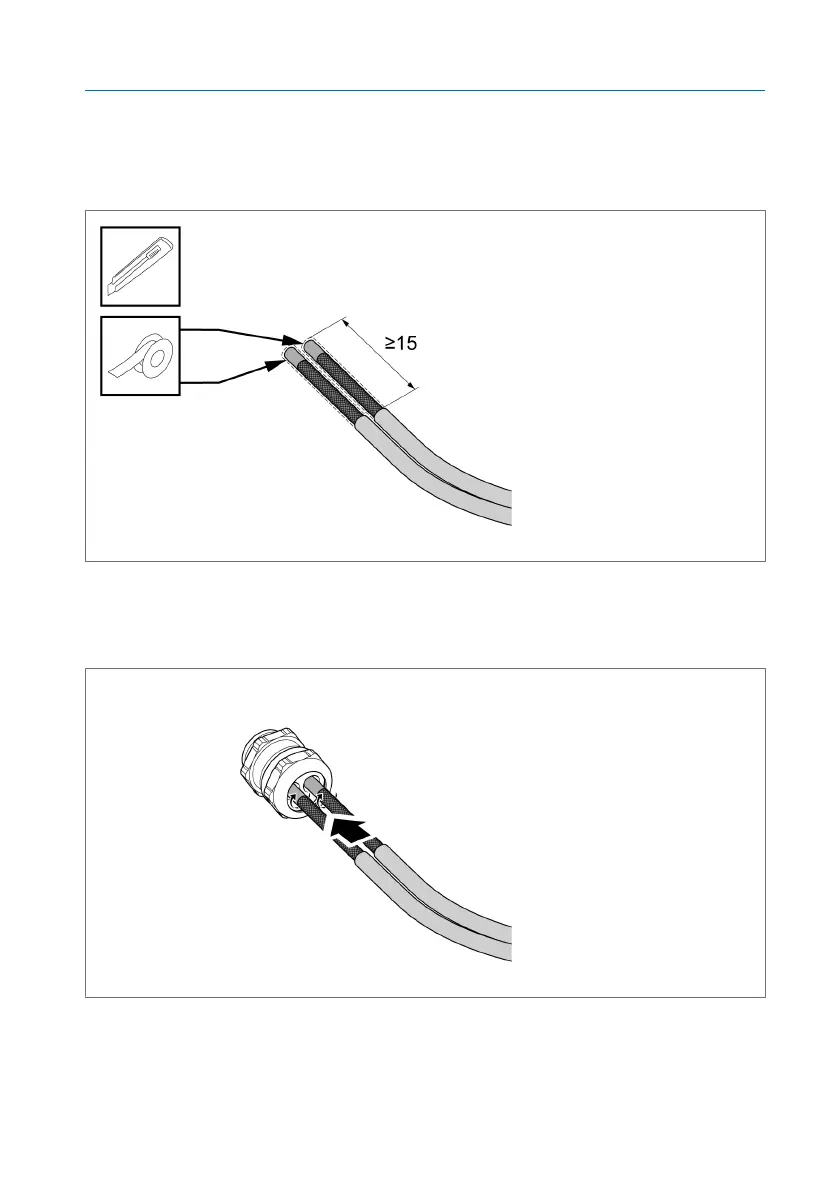

Figure35: Stripping and insulating the cables

The cable gland can now be attached. To do so:

1. Gently twist the cables and feed through the openings in the cable gland.

Figure36: Inserting the cables

2. Feed the cables through until the cable sheath contacts the spring in the

cable gland.
