6 Installation and commissioning
715831400/02 EN
In order to connect the M plug, proceed as follows:
1. NOTICE! Damage to cables and conductors! When installing the M plug
connector on the M plug, the cable can twist. Twisting can cause cable
breaks. Push the plug connector onto the device plug, hold the cable and
turn the threaded cap clockwise to the stop. The cable may not rotate
while this is happening.

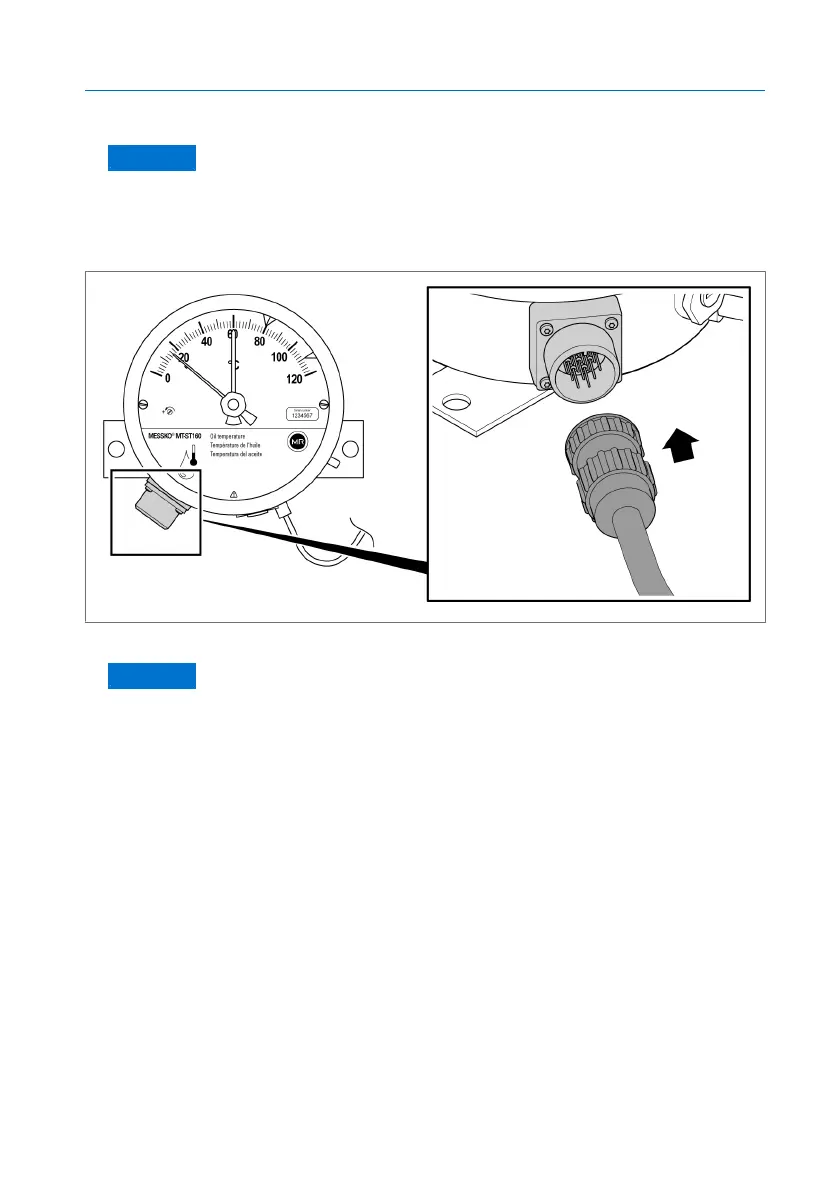

Figure53: Connecting the M plug
2. NOTICE! Interruption of the plug connection! If the connection cable is
not routed and secured sufficiently, the plug connector can be ripped out
of the housing plug. Secure the connection cable sufficiently and make
sure that the plug connector is not under tension.
