6.3.8.5 Integration of the device into a 2-conductor system

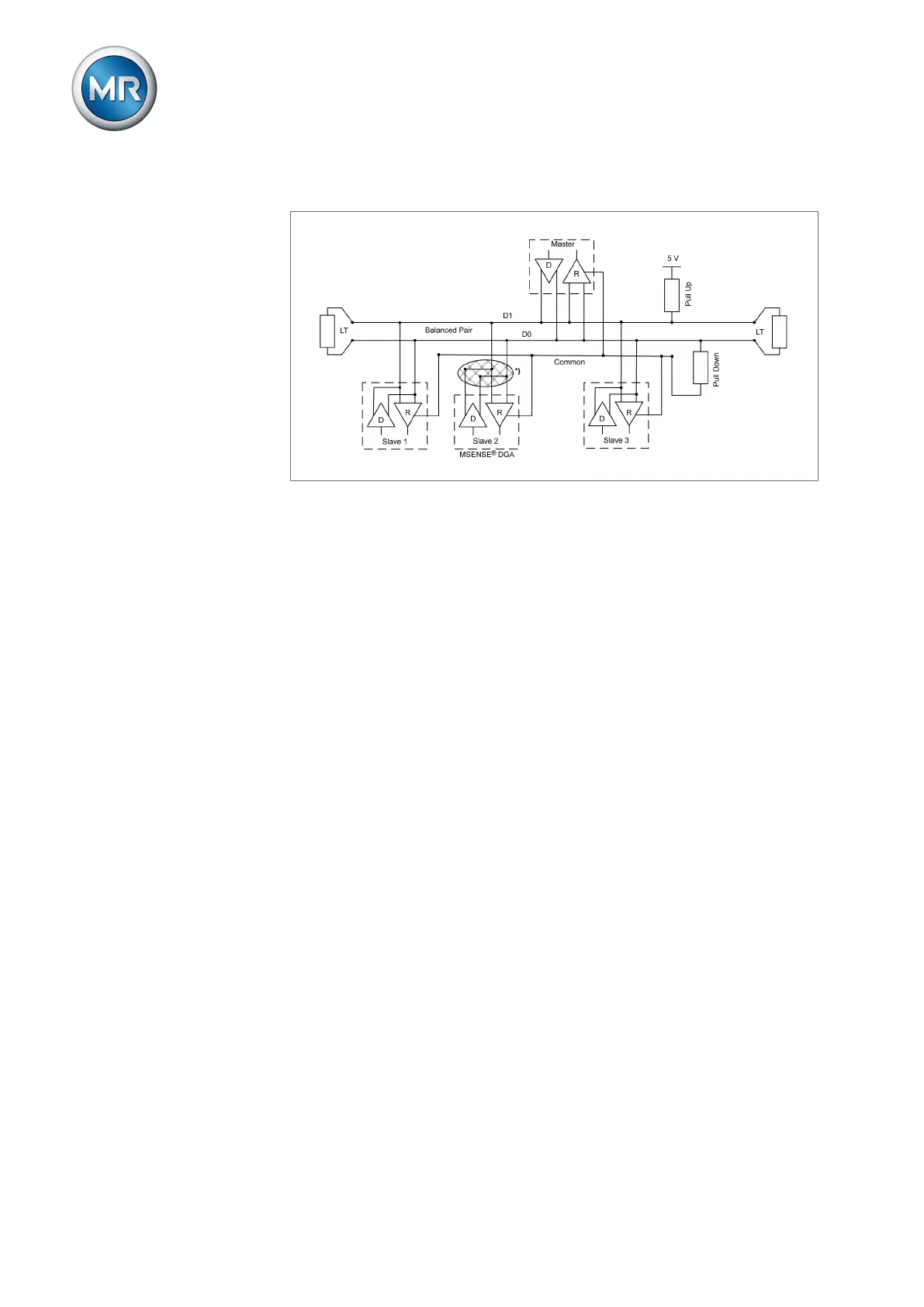

Figure34: 2-conductor system
*) When integrating the device into a 2-conductor system, the following con-
ductors are to be bridged in the external supply line:
▪ Conductors TXD0 (pin1) and RXD0 (pin4)
▪ Conductors TXD1 (pin2) and RXD1 (pin3)
6.3.8.6 MESSKO® Protocol Converter for SCADA connection
With the MESSKO® Protocol Converter, which is available as an option, you
can also connect the device to a SCADA system via the protocols
DNP3TCP, 61850-8-1MMS or ModbusTCP.
For further instructions, please refer to the corresponding operating instruc-
tions for the MESSKO®Protocol Converter, which are available upon re-
quest.
