14 Appendix
Maschinenfabrik Reinhausen GmbH 2023 974001150/12 EN MSENSE
®
DGA 2/3
14.4 Electrical connection

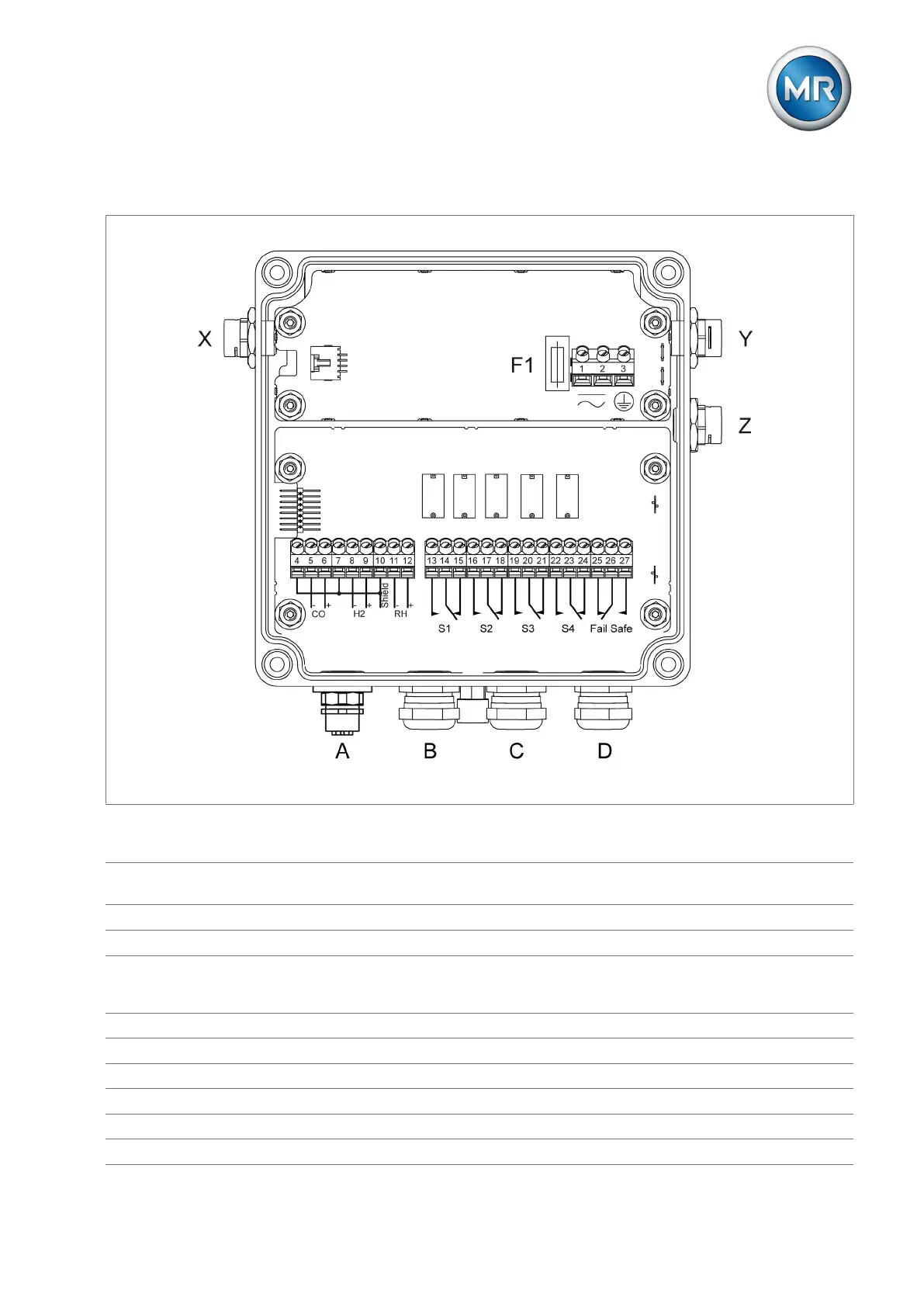

Figure76: Electrical connection
1-2 Supply voltage (overvoltage category III)
95...280V AC 50/60Hz or 95...280V DC (any polarity)
3 Protective conductor
4-12 Analog outputs 4…20mA passive (must be supplied with 24V DC)
13-27 Main switching contacts (change-over contacts for state signaling): capacity: 30V DC / 5A to 300V DC /
0.25A or 250V AC / 5A; max. 400V AC, cos φ = 1 at 85°C, observe warning information [Section 6.3.7,
Page 43].
F1 Safety fuse 500V, 500mA, delayed-action
A M12 socket, type A for Modbus RTU (RS485) and for USB service adapter (included in delivery)
B M20x1.5 cable screw connection for analog outputs
C M20x1.5 cable screw connection for signaling relay
D M20x1.5 cable screw connection for supply voltage
X, Y, Z Vents
