14 Appendix
Maschinenfabrik Reinhausen GmbH 202396 4001150/12 ENMSENSE
®
DGA 2/3
Flange dimensions table
Flange version A
mm [inch]
B
mm [inch]
C D E
mm [inch]
F
mm [inch]
G
mm [inch]
DN50 PN6 Ø140 [5.51″] Ø110 [4.33″] 70° 4 x 50° Ø13 [0.51″] Ø81 [3.19″] Ø65 [2.56″]
DN50 PN16 Ø165 [6.50″] Ø125 [4.92″] 70° 4 x 50° Ø18 [0.71″] - -
DN50 PN16 Ø165 [6.50″] Ø125 [4.92″] 70° 4 x 50° Ø18 [0.71″] Ø81 [3.19″] Ø65 [2.56″]
DN80 PN16 Ø200 [7.87″] Ø160 [6.30″] 34.5° 8 x 24° Ø18 [0.71″] - -
DN80 PN16 Ø200 [7.87″] Ø160 [6.30″] 34.5° 8 x 24° Ø18 [0.71″] Ø116.2 [4.57″] Ø100 [3.94″]
Gasket dimensions table
Flange version H
mm [inch]
I
mm [inch]
O-ring gasket (di) x (da) x (t)
mm [inch]
DN50 PN6 3 [0.12″] 12 [0.47″] O-ring 67 [2.64″] x 79 [3.11″] x 4 [0.16″]
DN50 PN16 - 18 [0.71″] For any gasket (gasket not included in delivery)
DN50 PN16 3 [0.12″] 18 [0.71″] O-ring 67 [2.64″] x 79 [3.11″] x 4 [0.16″]
DN80 PN16 - 18 [0.71″] For any gasket (gasket not included in delivery)
DN80 PN16 3.9 [0.15″] 18 [0.71″] O-ring ID100 [3.94″] x Ø6 [0.24″]

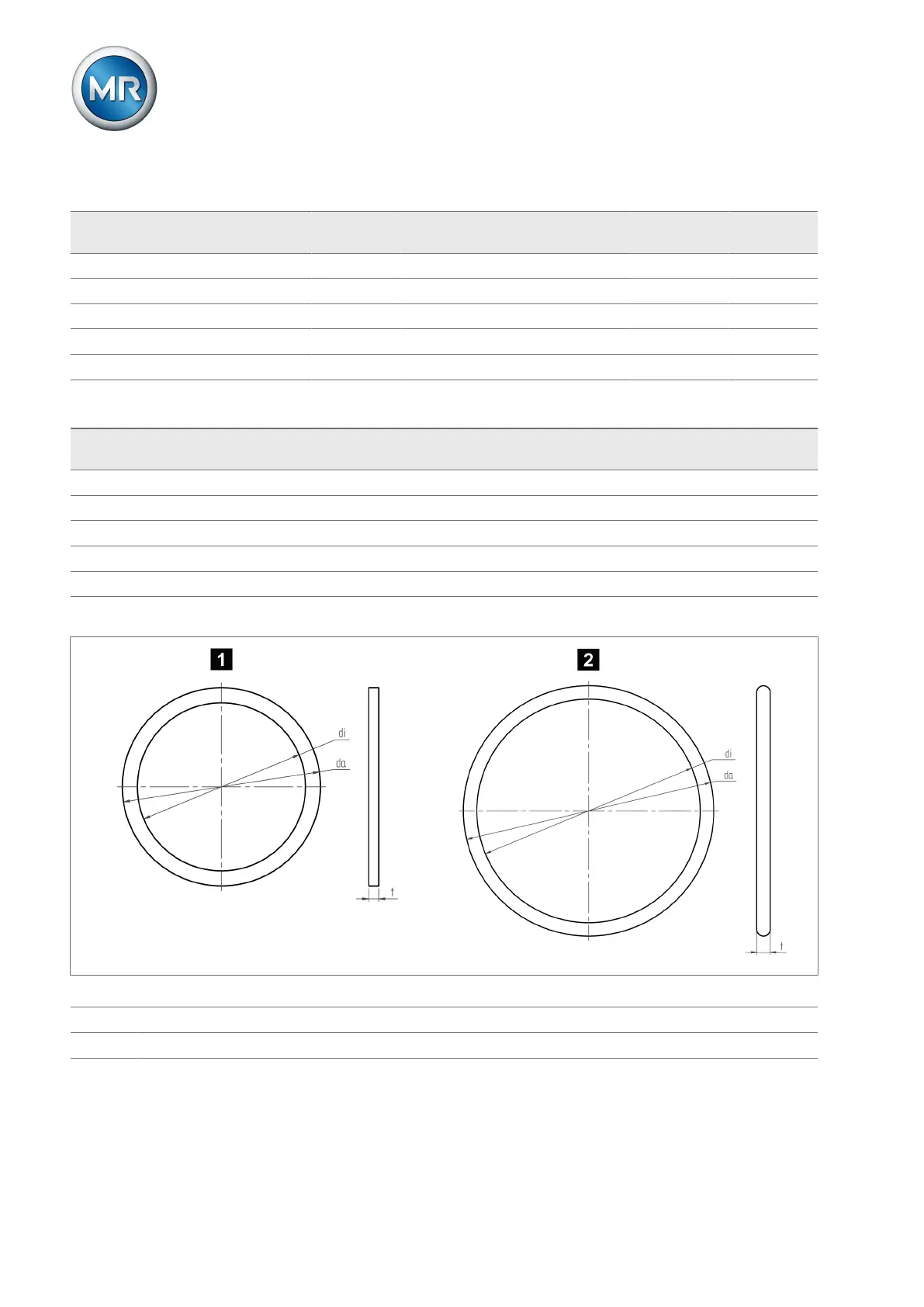

Figure75: Flange gaskets
1 O-ring gasket for DN50/PN6/16
2 O-ring for DN80/PN16
