10 Maintenance
Maschinenfabrik Reinhausen GmbH 2023 714001150/12 EN MSENSE
®
DGA 2/3
To take an oil sample, proceed as follows:
1. Complete the sample information sheet included in the oil extraction kit.
When doing so, enter the current measured values under "MSENSE®
DGA adjustment" for:
– H2
– CO (MSENSE®DGA3 only)
– H2O (%RH or ppm)
– UNIX time stamp

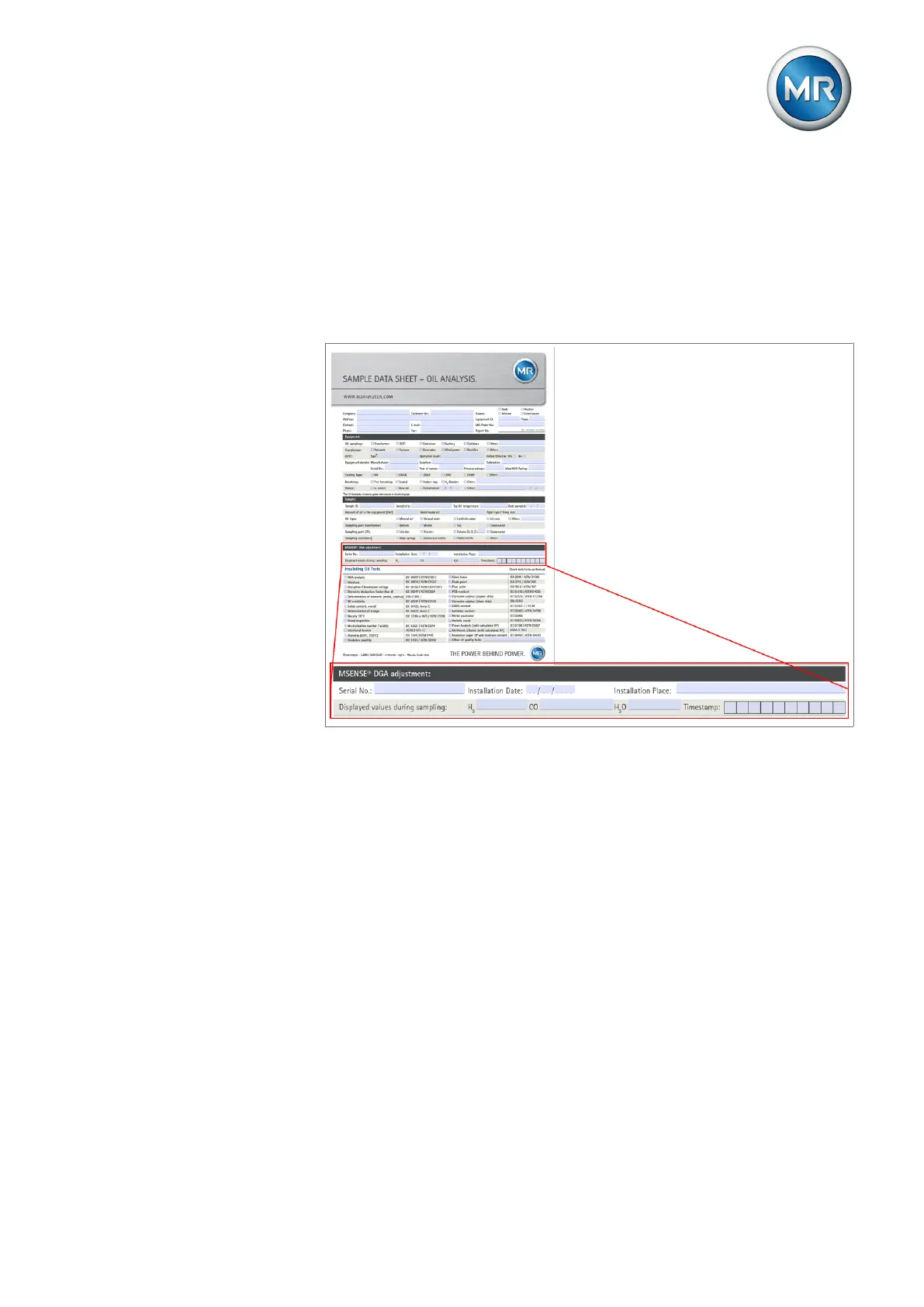

Figure46: Complete the sample information sheet (SAMPLE DATA SHEET – OIL ANALYSIS)
