Control Unit Models 9010 LCD and 9020 LCD
46
Appendix
MSA
GB
12.4 Appendix 4

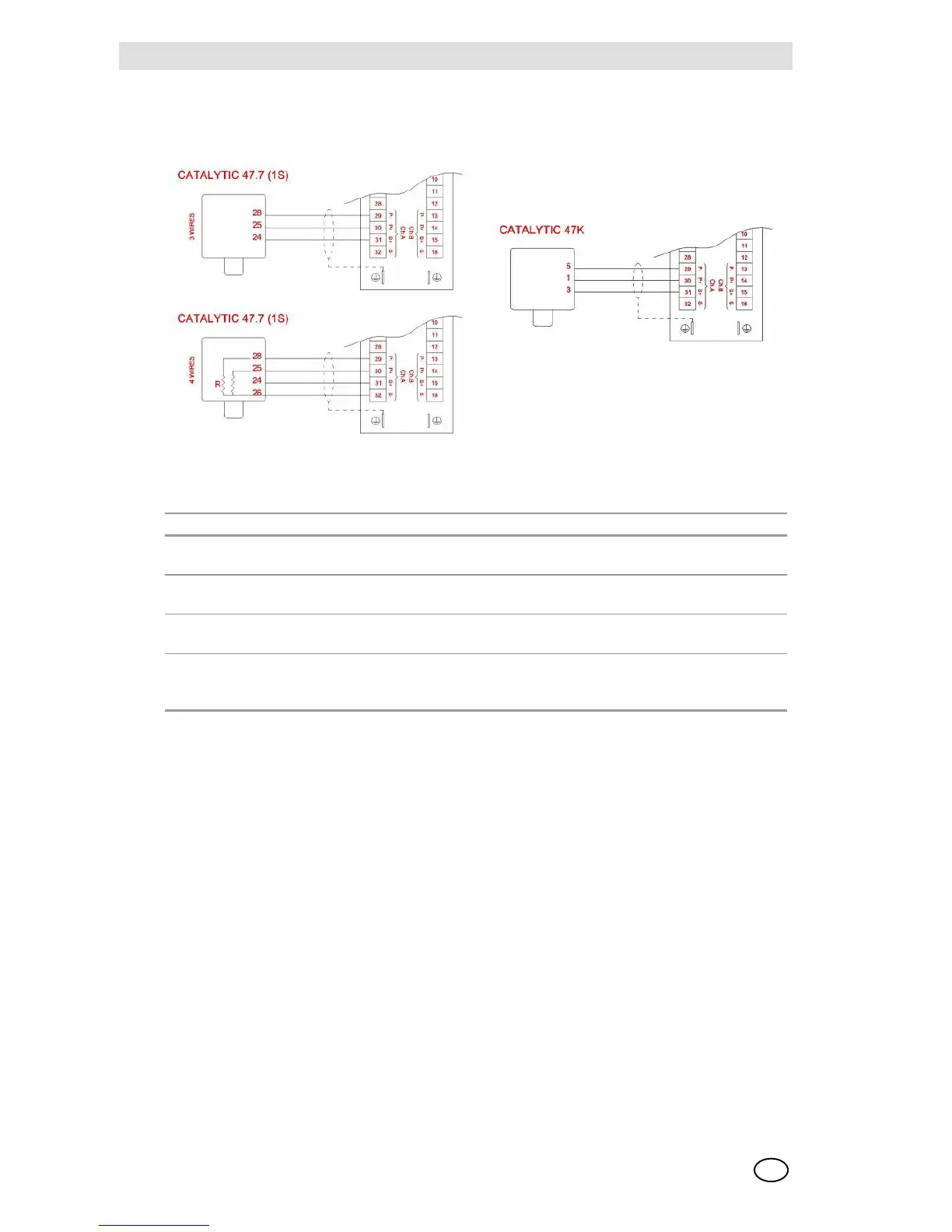

9010/20 LCD rev3 Connections with catalytic sensor
Configuration 9010/20 LCD
Board 9010 LCD rev 3 Board 9020 LCD rev 3
General purpose
board article no.
10093583 10093582
Simulation
module article no.
10063805
Hardware configu-
ration
The configuration of the jumpers on the board is done in the factory as per
Tables 2 and 3
Config. software The configuration of the board has been done in the factory, recalling the con-
figuration as per the Calibration Data Sheet is accomplished with
Access Code 53 P2 .
