Appendix
Control Unit Models 9010 LCD and 9020 LCD
81
GB
9010/20 LCD Sensor data sheet DF-8250 Part No.: D0756662

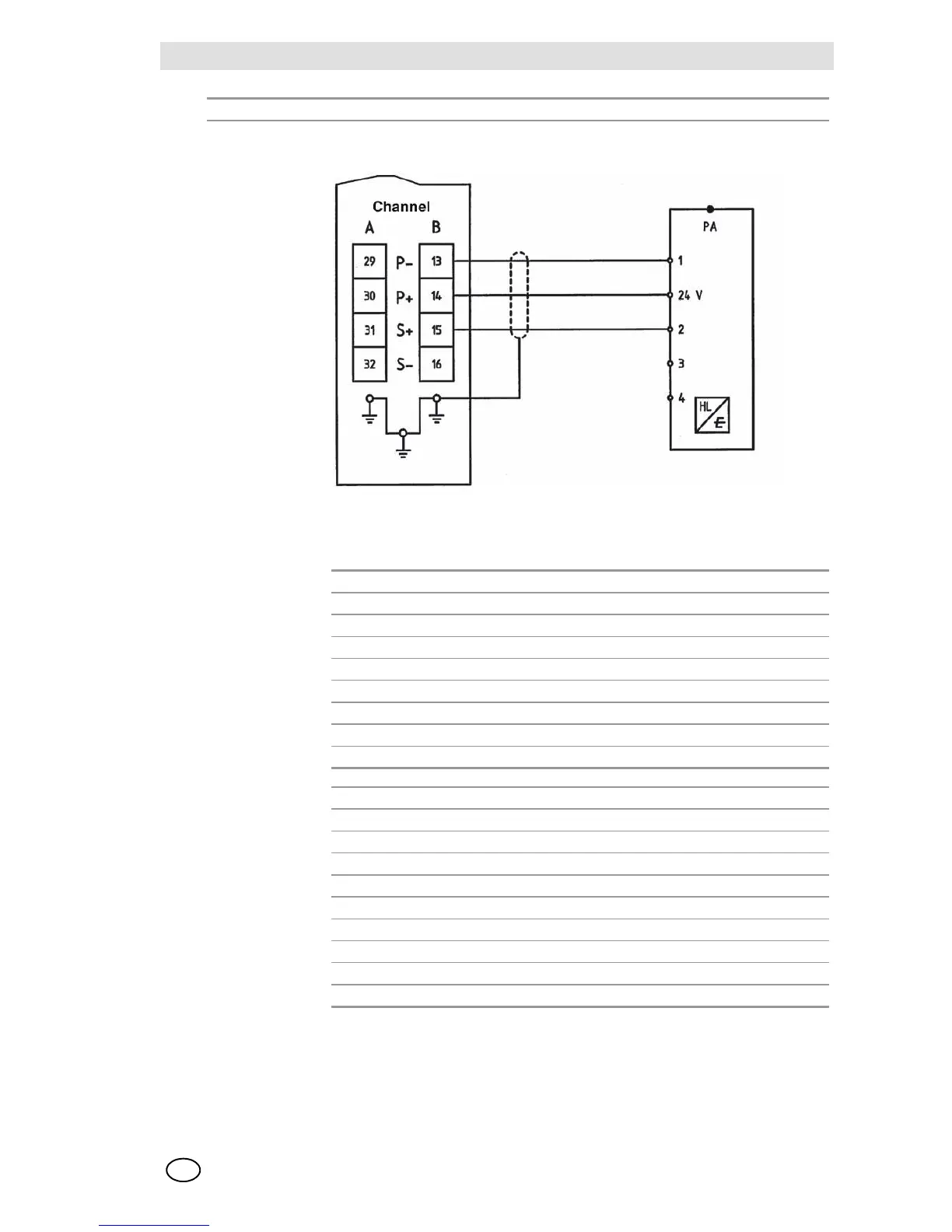

Terminal Block
9010/9020 Sensor Type DF-8250
Caution: Before connecting the measuring head, check hardware and software
settings.
Sensor type: semiconductor/active/3-lead/4–20 mA/current source
Connection data: Supply voltage: 13–30 V DC
Maximum current draw: 50 mA
Power requirement: 1.5 W [excluding cable length]
Connection cable: 3-lead, 80 % shielded
Maximum resistance: 200 Ohm
Maximum cable length: 1.000 m [with 1.5 mm
2
lead cross-section]
Cable diameter: 8 – 13.5 mm
Permitted lead cross section: 0.5 – 1.5 mm
2
spring clamps
Cable entry: Cable gland Pg 13.5 mm
Conditions for
use:
Assembly: Wall-mounted
Protection: IP42/EN 60529
Explosion protection: None
Approvals: None
Temperature: -20 °C to +40 °C
Humidity: 10 – 90 % relative humidity
Pressure: 950 – 1,100 hPa
Weight: approx. 0.65 kg
Dimensions W x D x H: 100 mm x 95 mm x 165 mm
Housing material: Stainless steel plate
