MSI 865PE NEO2-LS - Motherboard - ATX User Manual

Using 2-, 4- or 6-Channel Audio Function
A-9

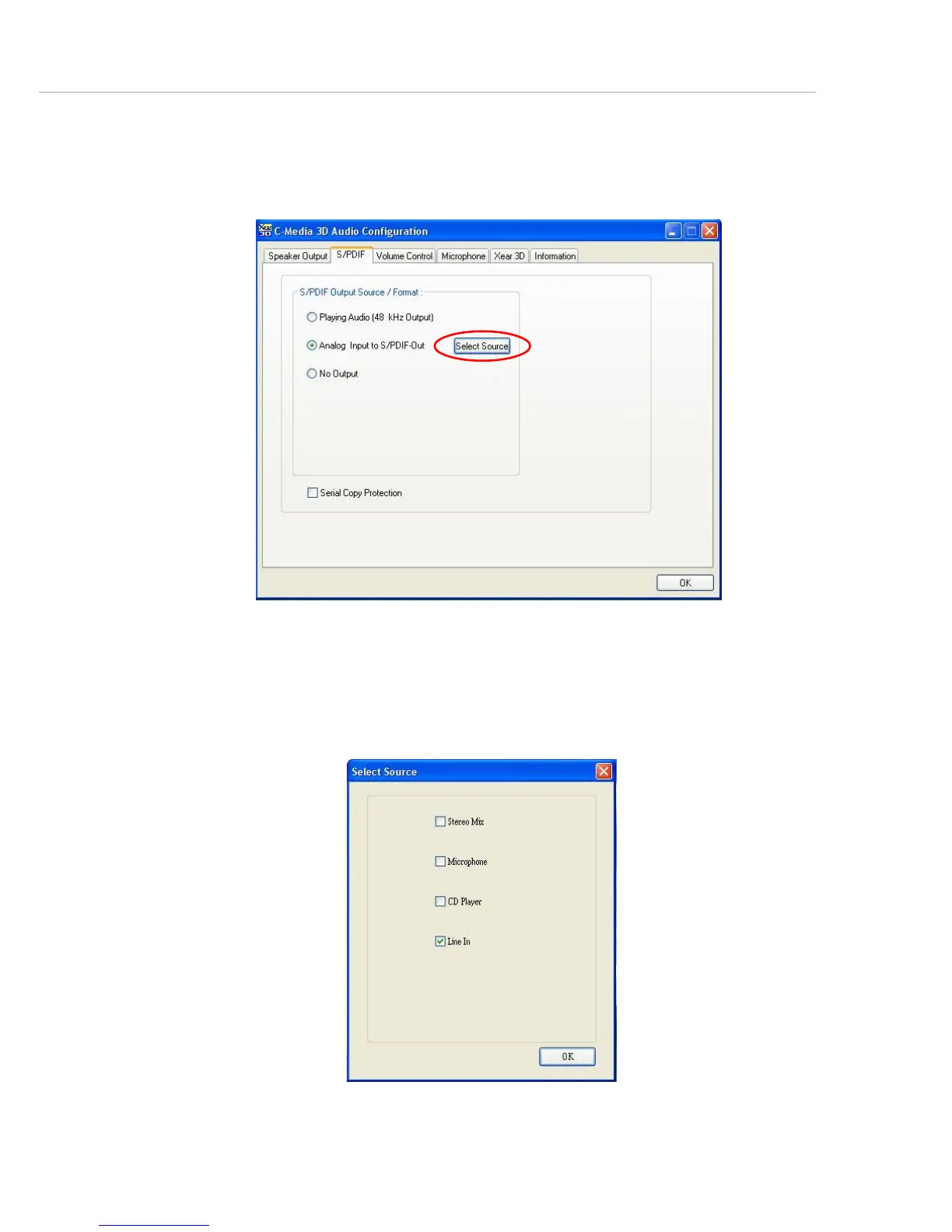

h Select Source: Since the analog input signal needs to be recorded and
converted to digital format, you have to click Select Source button and
select one analog source in the “Select Source” window. Actually the selected
item synchronizes with the recording panel of Microsoft.
Choose the Analog Input to S/PDIF-Out and then click the Select Source
button. Then the Select Source window appears.

MSI 865PE NEO2-LS - Motherboard - ATX Specifications

General

Form Factor	ATX
Chipset	Intel 865PE
Socket	Socket 478
Memory Type	DDR SDRAM
Maximum RAM	4 GB
Supported RAM Speed	DDR 400/333/266
Expansion Slots	1 x AGP 8X, 5 x PCI
Integrated LAN	Yes
LAN Controller	Realtek RTL8100C
Audio Codec	Realtek ALC655
Audio Output	6-channel
Compatible Processors	Intel Pentium 4, Celeron
Memory Slots	4 x DIMM
Storage Interfaces	2 x ATA100, 2 x SATA 1.5Gb/s
LAN Ports	1 x RJ-45
USB Ports	8 x USB 2.0
