MSI Dyna-Link 2 - Mechanical Dimensions

Appendix 49
7. 3
5000 lbs / 2500 KG
MAXIMUM CAPACITY
7300
lb
B
C = DIA.
E = LOAD CELL
BODY WIDTH AT
SHACKLE
INTERFACE.
A
D
G
F
Mechanical Dimensions

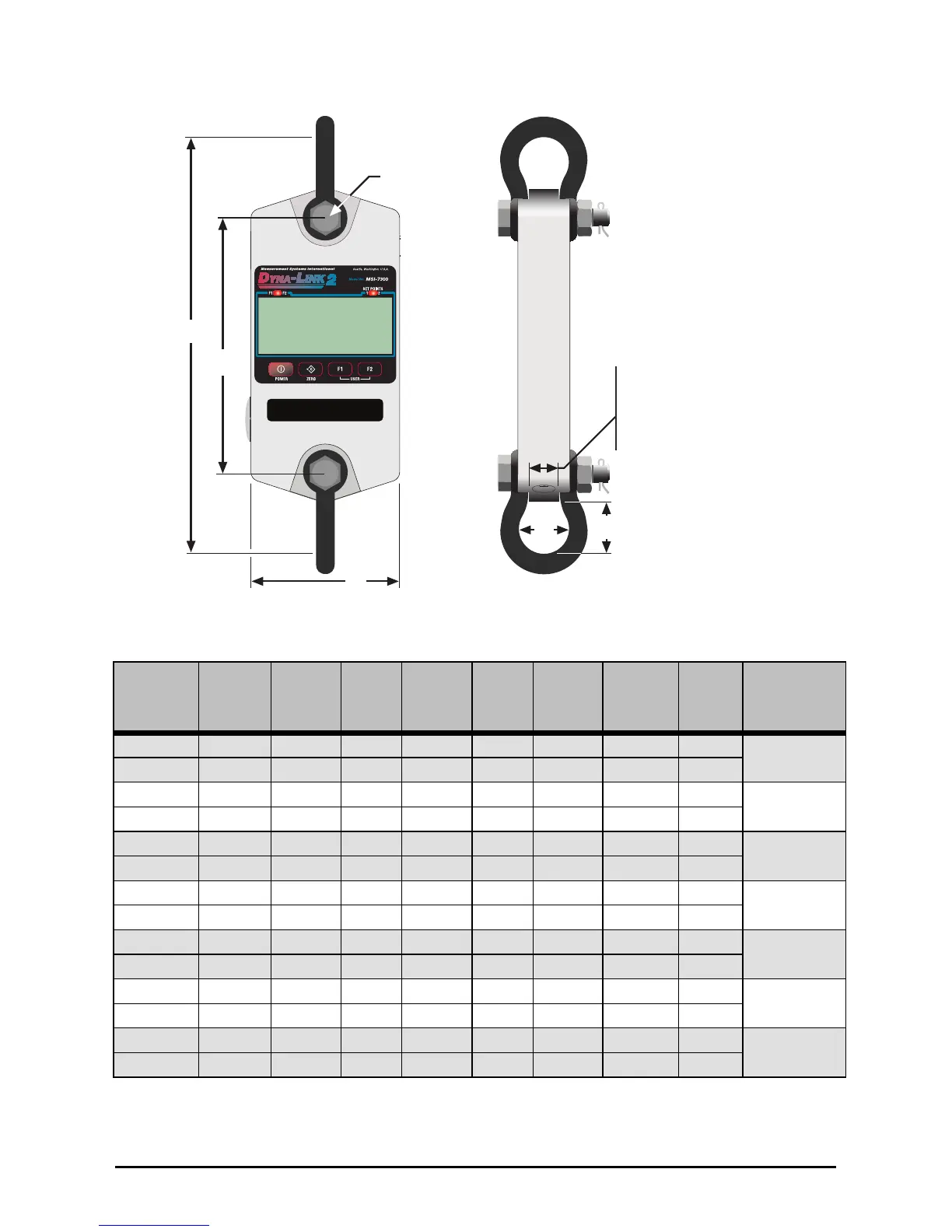

Figure 7-1. Mechanical Dimensions
Table 7-3. Mechanical Dimensions
Capacity A B C D E F G
Approx
Shipping
Wt
Shackle
1000 lb 8.0 in 13.53 in .75 in 5 in .99 in 1.69 in 1.75 in 4.4 lb
G-2130 3.25T
500 kg 203 mm 344 mm 19 mm 127 mm 25 mm 43 mm 44.4 mm 2.0 kg
2500 lb 8.5 in 14.03 in .75 in 5 in .99 in 1.69 in 1.75 in 4.9 lb
G-2130 3.25T
1250 kg 216 mm 356 mm 19 mm 127 mm 25 mm 43 mm 44.4 mm 2.2 kg
5000 lb 8.5 in 14.03 in .75 in 5 in .99 in 1.69 in 1.75 in 4.9 lb
G-2130 3.25T
2500 kg 216 mm 356 mm 19 mm 127 mm 25 mm 43 mm 44.4 mm 2.2 kg
10,000 lb 8.5 in 16.14 in 1 in 5.50 in 1.35 in 2.28 in 2.34 in 7.3 lb
G-2130 6.5T
5000 kg 216 mm 410 mm 25 mm 140 mm 34 mm 58 mm 59.4 mm 3.3 kg
25,000 lb 9.5 in 22.66 in 1.63 in 6.38 in 2.24 in 3.88 in 4.69 in 13 lb
G-2130 17T
12,500 kg 241 mm 576 mm 41 mm 162 mm 57 mm 99 mm 119 mm 5.9 kg
50,000 lb 9.63 in 25.67 in 2 in 7.50 in 2.74 in 5.00 in 5.75 in 23 lb
G-2130 25T
25,000 kg 245 mm 652 mm 51 mm 191 mm 70 mm 127 mm 146 mm 10 kg
100,000 lb 12 in 29.75 in 2.25 in 8.13 in 3.11 in 5.75 in 4.81 in 53 lb
G-2140 55T
50,000 kg 305 mm 756 mm 57 mm 207 mm 79 mm 146 mm 122 mm 24 kg
