MSSC Smart-Jet One - Printhead

11
USER MANUAL V1.2 | Updated August 30, 2022

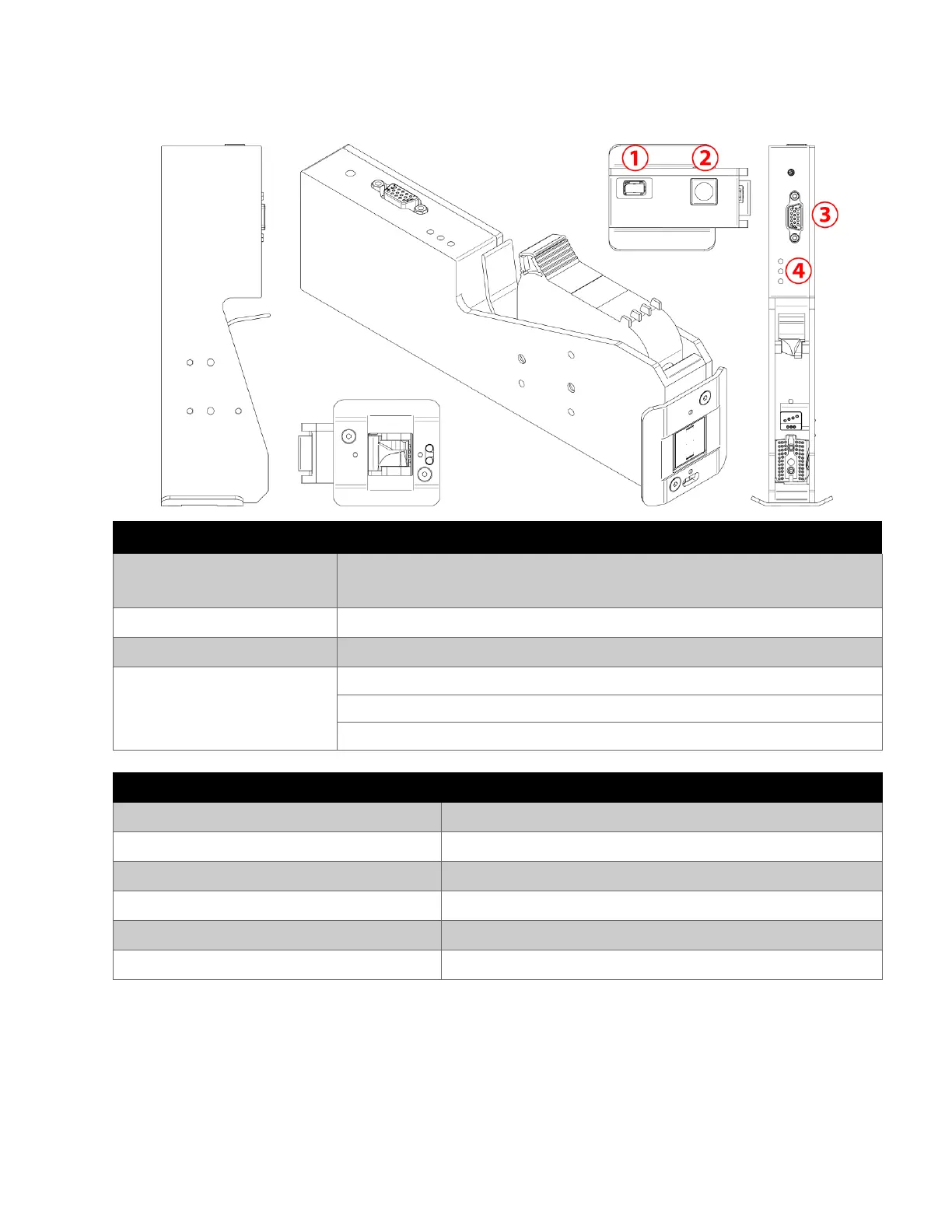

Printhead
Printhead 0.5 inch (1 cartridge, single Smart-Jet
®
DUO PRO head)
Items
Description
(1) DATA
Input socket for power supply input and communication with
the controller
(2) PURGE
Button to purge the ink cartridge nozzles
(3) EXTENDED
Do not recommended to use this port
(4) LED status
Sensor Status
Alarm Status
Run/Stop Status
Technical parameters
Value
Number of cartridges support
1
Number head controller support
1
Print height
12.7 mm - 0.5 inch
Connection port on controller
PH Port
Sensor hanging ability
YES
Size (L x W x H)
216.4 x 49.1 x 65.1 mm
NOTE:
Smart-Jet
®
DUO MAX and Smart-Jet
®
DUO REACH are the same setup with Smart-Jet
®
DUO PRO.
Only different at Print height and Size of each printhead type.
