CRANKSHAFT, PISTON AND CONNECTING ROD
75
9. Using a seal protector, slide the crankcase cover
on to the crank shaft.
See Figure 10.23.
10. Gently rock the crank case cover until it seats
fully against the cylinder block.
11. Install the crank case cover bolts and tighten to a
torque of 80 - 106 in-lbs (9 - 12 Nm).
NOTE: Use a star torque pattern to tighten the
cover bolts.
12. Install the cylinder head by following the steps
described in Chapter 9: Cylinder head.
13. Install the muffler by following the steps
described in Chapter 8: Exhaust.
14. Install the fuel tank by following the steps
described in Chapter 4: Fuel systems and Gov
-
ernor.
15. Install the carburetor by following the steps
described in Chapter 3: Air Intake and Filters.
16. Install the flywheel and module by following the
steps described in Chapter 7: Ignition system.
17. Install the blower housing and starter by follow-
ing the steps described in Chapter 6: Starter and
Charging Systems.
18. Install the engine on the application by following
the steps described in the application’s service
manual.
19. Install the spark plug by following the steps
described in Chapter 7: Ignition system.
20. Fill the engine with oil and fuel by following the
steps described in Chapter 1: Introduction.
21. Test run the engine in a safe area and make any
carburetor and governor adjustments needed.

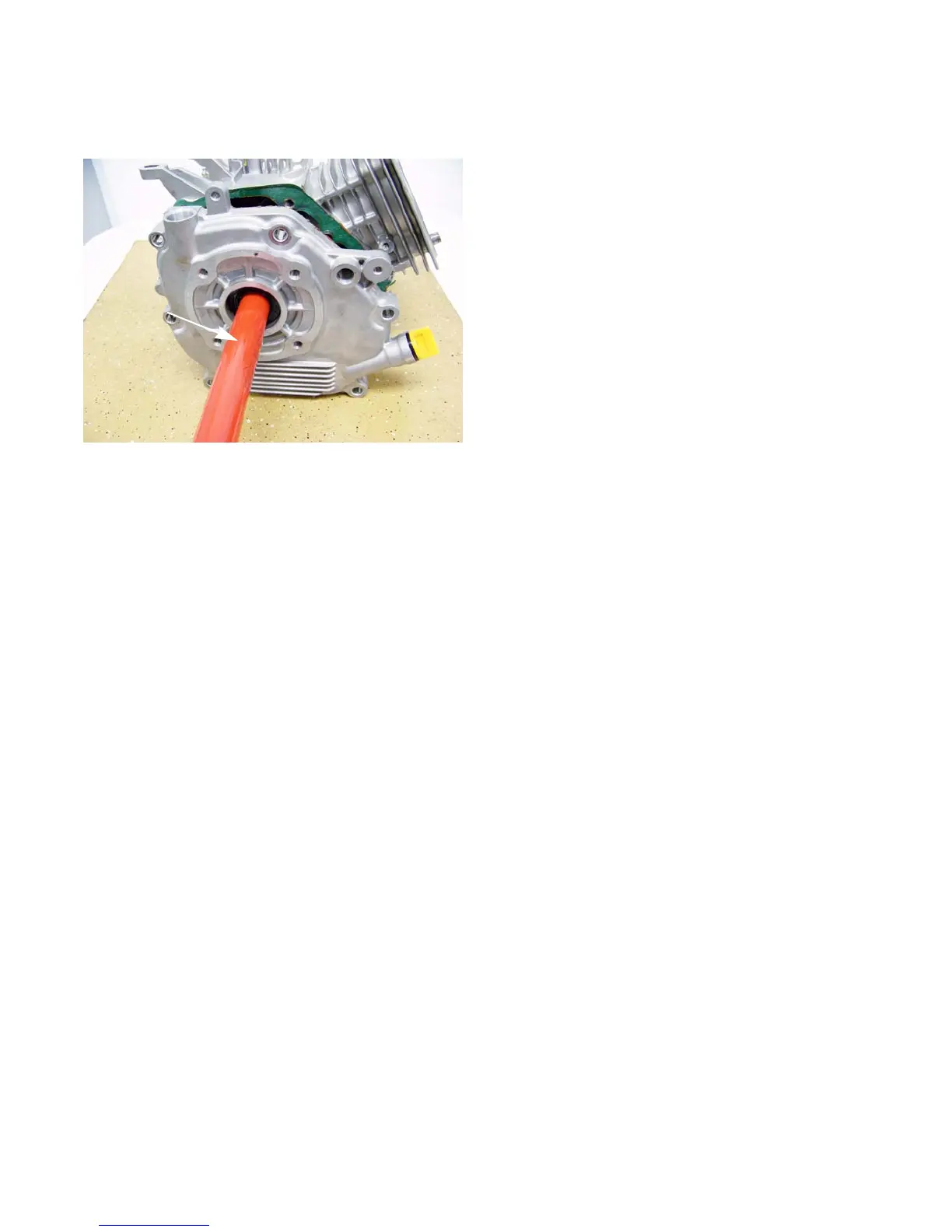

Figure 10.23
Seal
protector
