8. Check valve lash between each valve stem and
rocker arm using a feeler gauge.
9. Intake valve lash (carburetor side) should be 0.003”-
0.005” (0.10
+ 0.02mm). See Figure 2.6.
10. Exhaust valve lash (muffler side) should be 0.005-
0.007” (0.15
+ 0.02mm). See Figure 2.7.
11. Use a 10mm wrench to loosen the jam nut, and a
14mm wrench to adjust the rocker arm fulcrum nut.
See Figure 2.7.
• Tighten the rocker arm fulcrum nut to close-up
the clearance between the end of the valve
stem and the contact point on the rocker arm.
• Loosen the rocker arm fulcrum nut to open-up
the clearance between the end of the valve
stem and the contact point on the rocker arm.
12. Hold the fulcrum nut with a 14 mm wrench, tighten
the jam nut to a torque of 80 - 106 in lbs (9 - 12 Nm)
using a 10 mm wrench.
13. Double-check the clearance after tightening the jam nut, to confirm that it did not shift. Re-adjust if necessary.
14. Rotate the engine through several compression cycles:
• Observe the movement of the valve gear.
• Return the piston to TDC compression stroke and re-check the valve lash to confirm consistent movement
of the valve gear, including the slight bump to the exhaust valve from the automatic compression release.
15. Clean-up any oil around the valve cover opening, clean the valve cover, replace the valve cover gasket if nec-
essary.
16. Install the valve cover, tightening the valve cover screws to a torque of 62 - 80 in lbs (7-9 Nm).
IMPORTANT: Over tightening the valve cover will cause it to leak.
17. Install the spark plug.
18. Test run the snow thrower.
19. Install the rear engine cover.

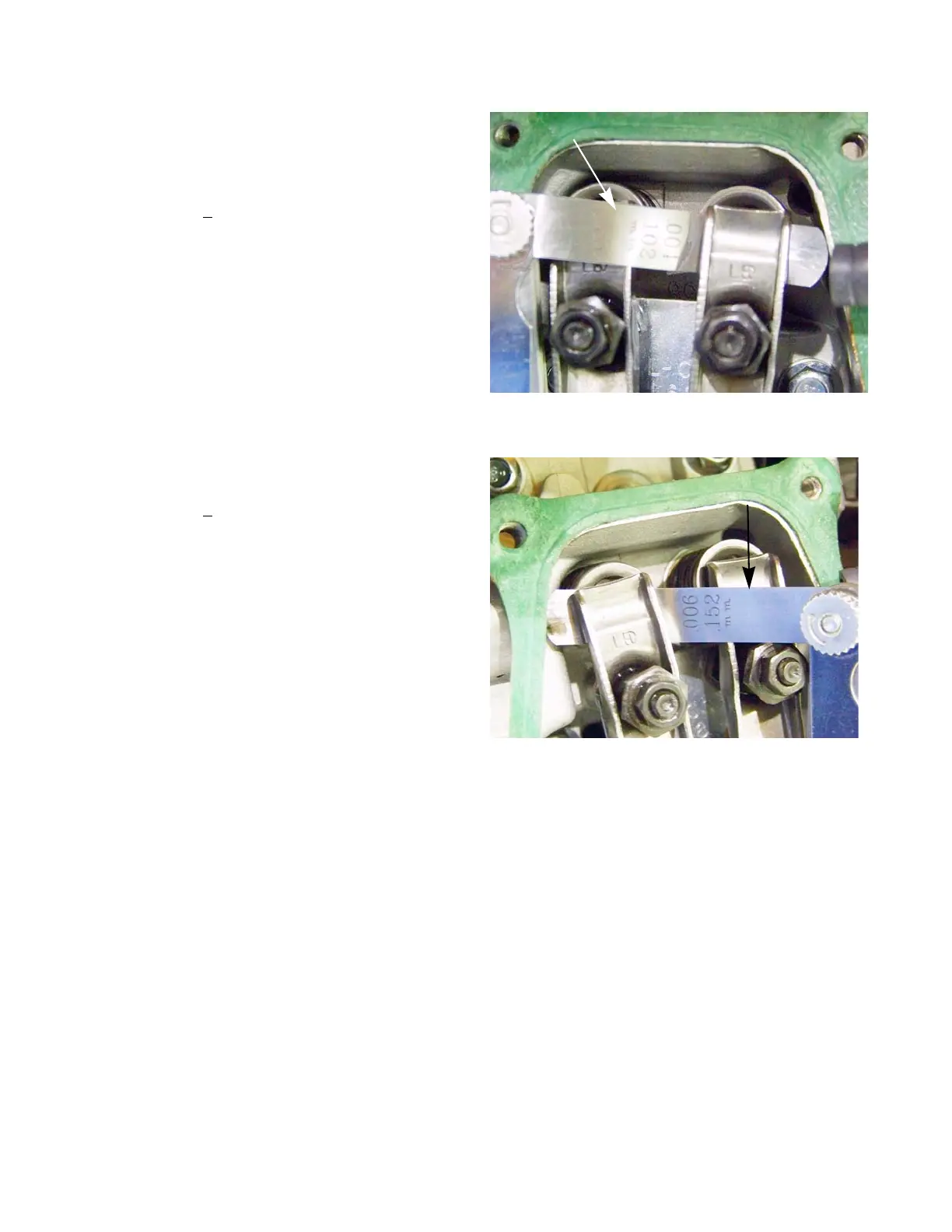

Figure 2.6
.004” feeler
gauge
Figure 2.7
.006” feeler
gauge
