Rear engine cover
The engine on this series of snow throw is fully
enclosed. The rear engine cove can easily be removed to
preform many engine repair or maintenance procedures
such as:
• changing the oil
• servicing the carburetor
• replacing the spark plug
• adjusting the valve lash
To remove the rear engine cover:
1. Remove the choke extension lever.
2. Remove the three rear engine cover screws (indi-
cated by the arrows in Figure 2.8.) using a 3/8”
wrench.
3. Rotate the engine cover down.
4. Slide the tabs engine cover out of the slots in the
frame.
5. Install the rear engine cover by following the previous
steps in reverse order.

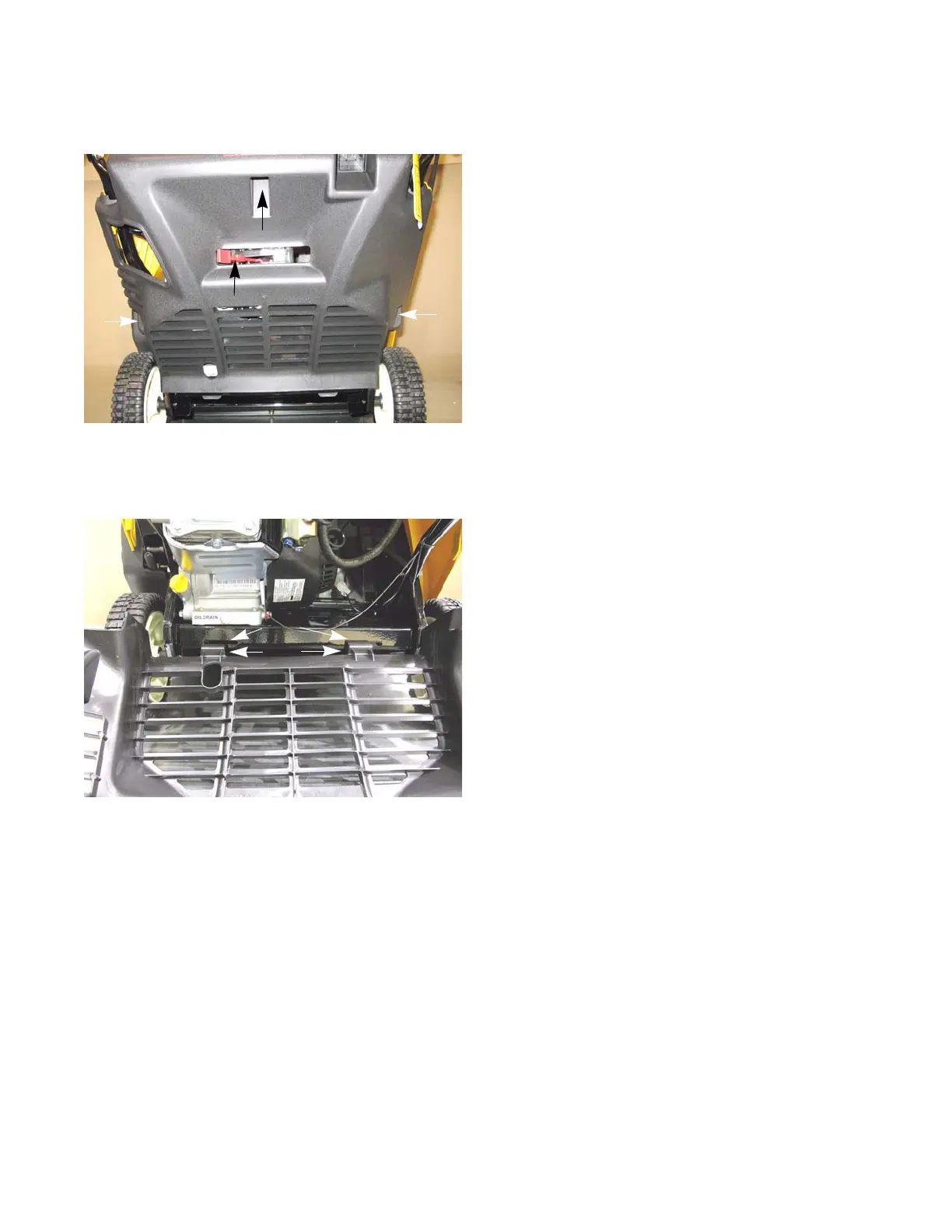

Figure 2.8
Choke lever extension
Figure 2.9
Tabs
Slots
