Auger housing
To remove/replace the auger housing:
1. Remove the upper engine cover by following the
procedures described in Chapter 2: Engines.
2. Remove the belt by following the procedures
described in Chapter 3: Auger, Belts and Pulleys.
3. Remove the auger by following the procedures
described in Chapter 3: Auger, Belts and Pulleys.
4. Remove the left side panel by following the proce-
dures described in the left side panel section of this
chapter.
5. Remove the screw (indicated by the arrow) that
attaches the right side of the auger housing to the
frame using a 3/8” wrench.
See Figure 4.38.
6. Remove the screw that attaches the center of the
auger housing to the frame using a 3/8” wrench.
See Figure 4.39.

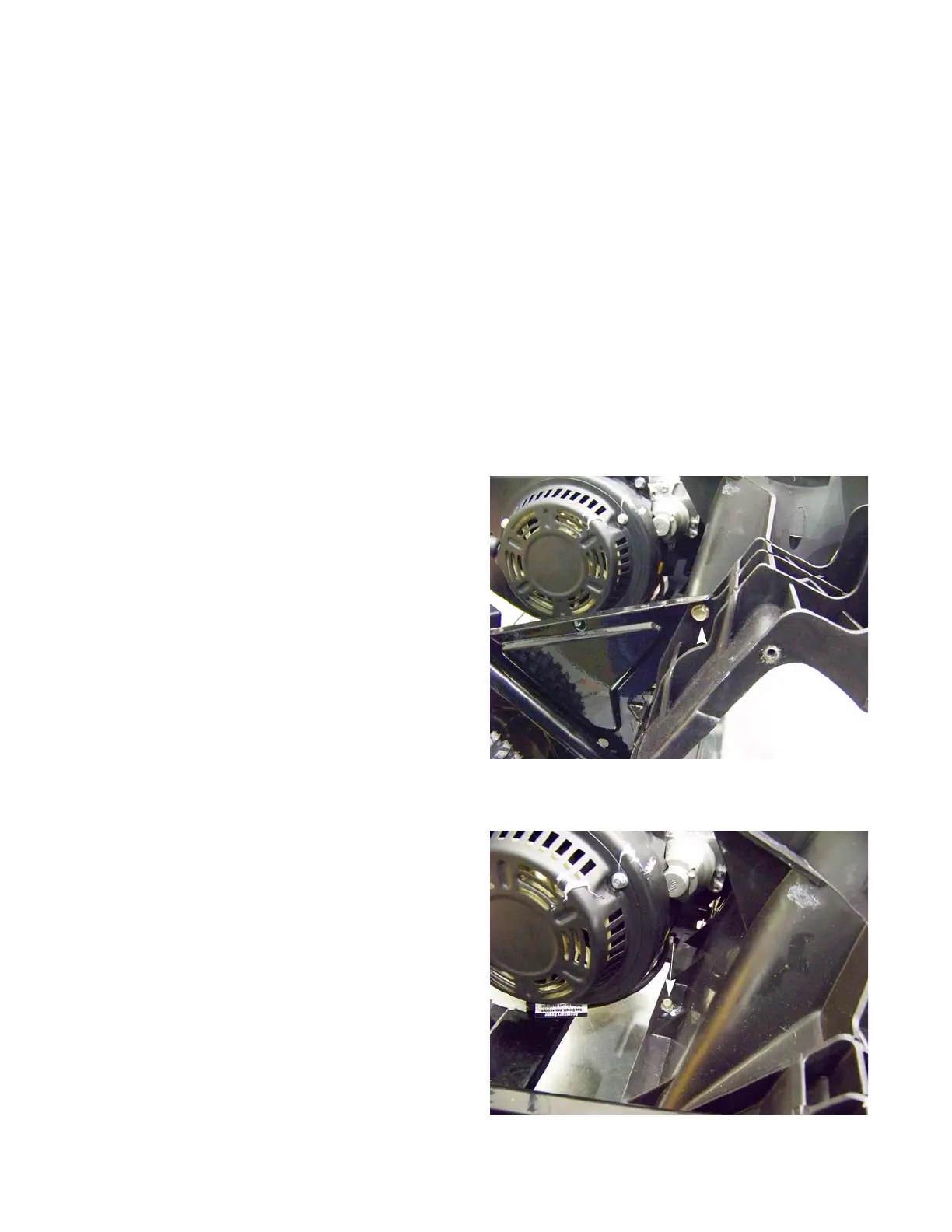

Figure 4.38
Figure 4.39
Screw
