18. Mount double-walled HP line (5) and use torque wrench to tighten to the specified torque. Tightening
sequence:
1 Adapter (4)
2 Rail (6)
Name Size Type Lubricant Value/Standard
Union nut / thrust
screw
Tightening torque 40 Nm + 5 Nm

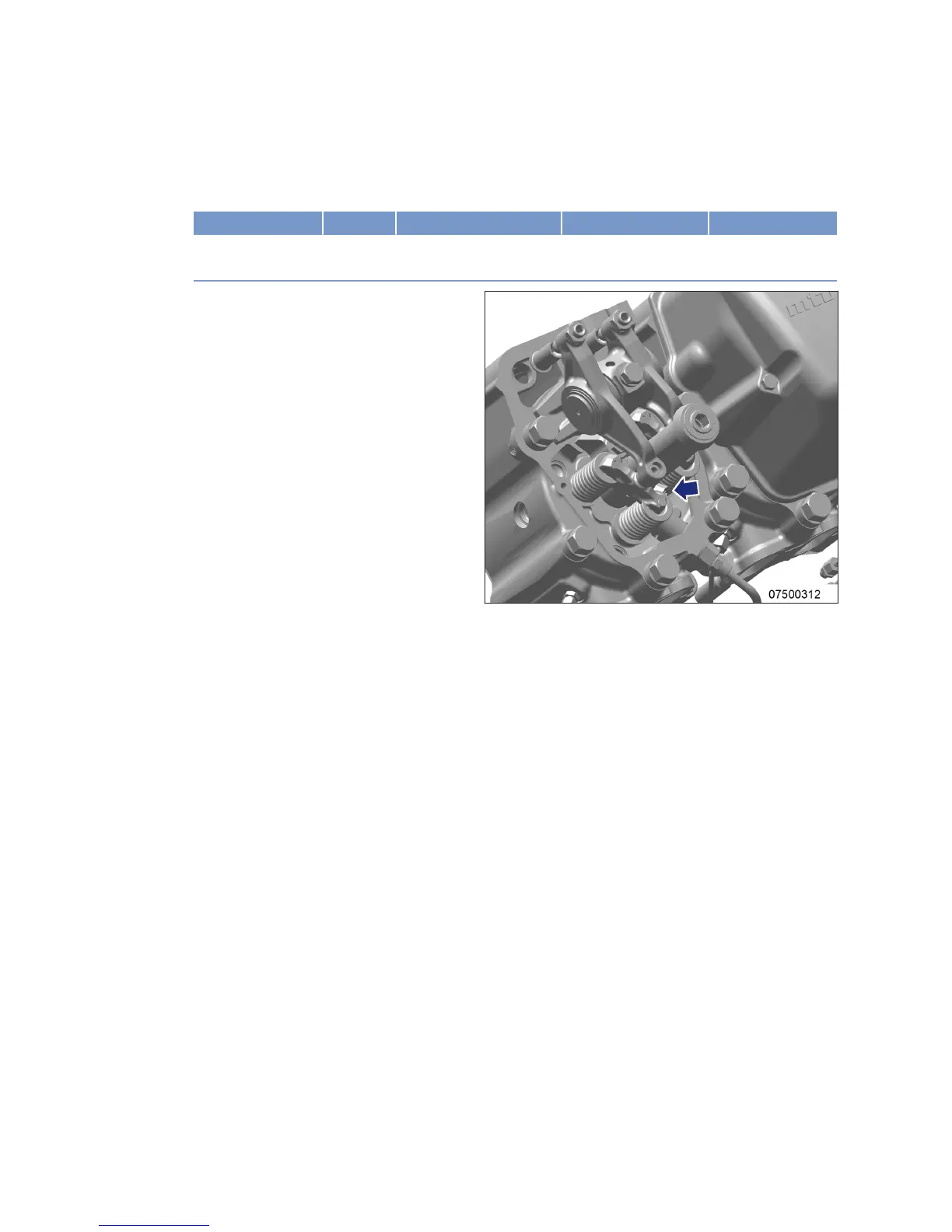

19. Fit cable connector onto injector.
Note: Failure to reset drift compensation (CDC)
will void the emissions certification.
20. Reset drift compensation (CDC) with Dia-
Sys® (→ E531920/...). If DiaSys® is not
available, contact Service.
Final steps
1. Install cylinder head cover (→ Page 95).
2. Open fuel supply to engine.
102 | Task Description | M015695/03E 2013-03
TIM-ID: 0000000925 - 008
