7.19.2 Fan drive – Drive belt replacement
Preconditions
☑Engine is stopped and starting disabled.
Special tools, Material, Spare parts
Designation / Use Part No. Qty.
Drive belt
(→ Spare Parts Catalog)
Preparatory steps
1. Remove protective cover.
2. Remove fan.
Replacing drive belt

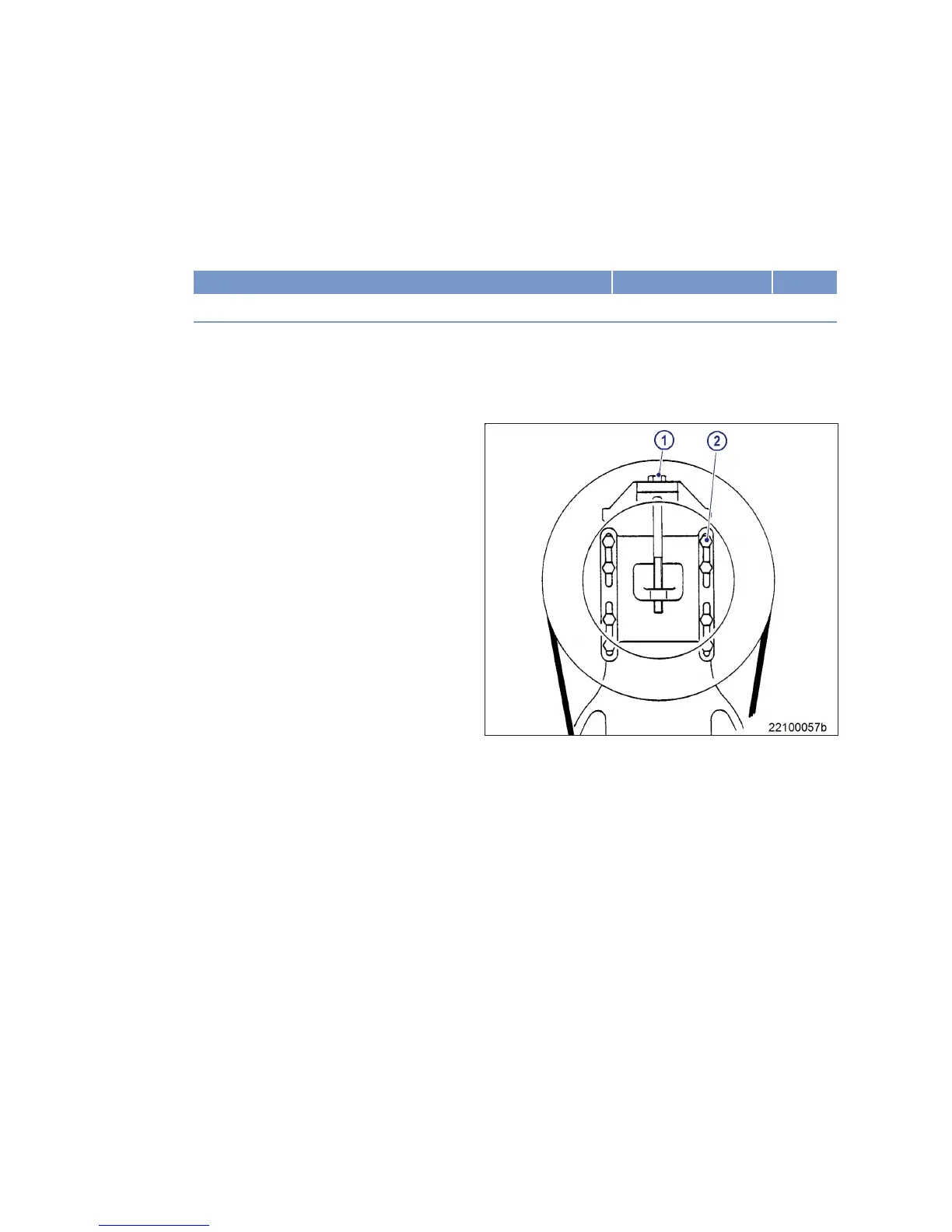

1. Release screws (2).
2. Slacken off stud (1) until drive belt can be
removed.
3. Clean belt pulleys.
4. Fit new drive belt on belt pulleys, ensuring
that it is not under tension.
5. Adjust belt tension (→ Page 146).
148 | Task Description | M015695/03E 2013-03
