7.3 Crankcase Breather
7.3.1 Crankcase breather – Oil separator element replacement, diaphragm check and
replacement
Preconditions
☑Engine is stopped and starting disabled.
Special tools, Material, Spare parts
Designation / Use Part No. Qty.
Torque wrench, 6-50 Nm
F30027336 1
Ratchet
F30027340 1
Engine oil
Filter element
(→ Spare Parts Catalog)
Diaphragm
(→ Spare Parts Catalog)
Gasket
(→ Spare Parts Catalog)
WARNING
Hot oil.
Oil can contain combustion residues which are harmful to health.
Risk of injury and poisoning!
• Wear protective clothing, gloves, and goggles / safety mask.
• Avoid contact with skin.
• Do not inhale oil vapor.

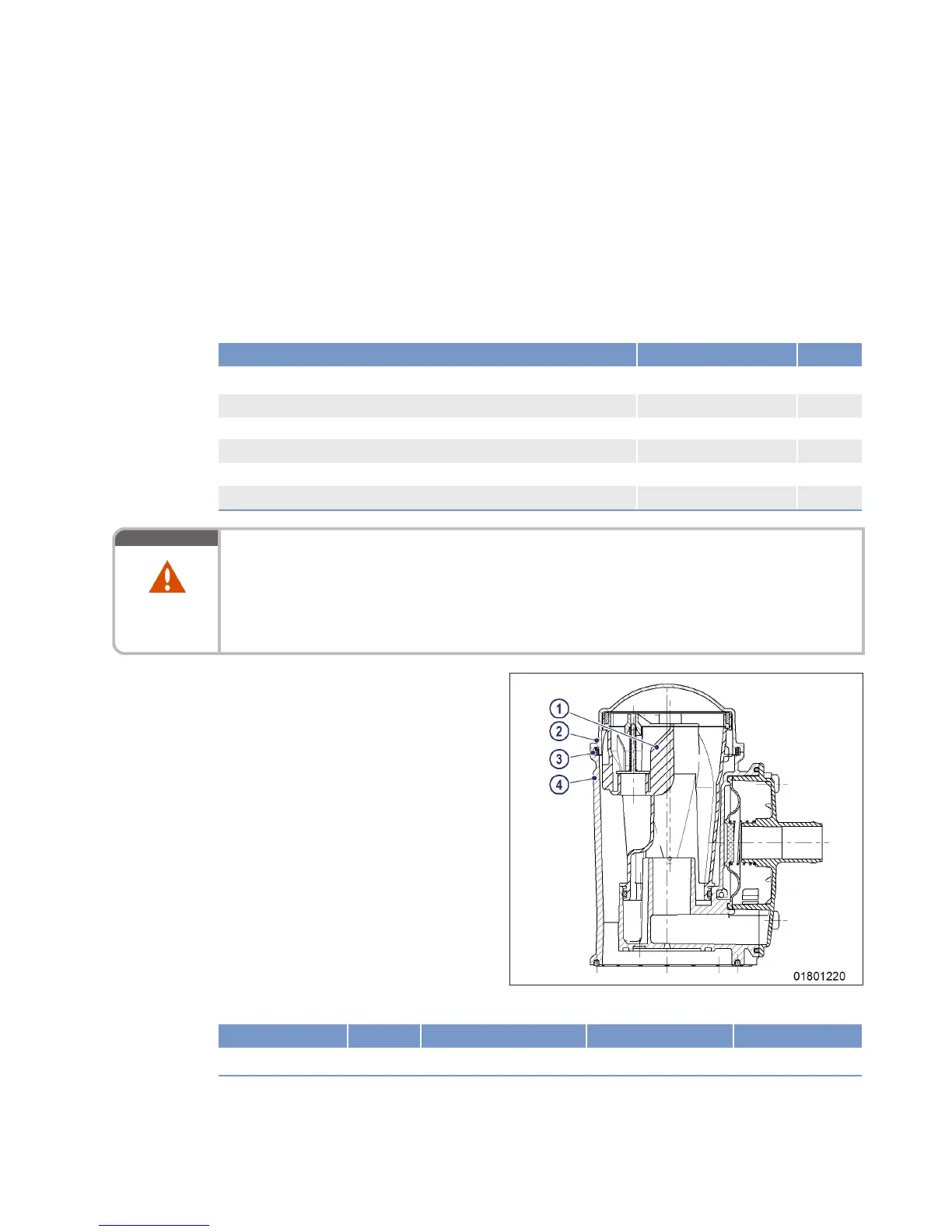

Replacing oil separator element
1. Remove cover (2) with O-ring (3).
2. Remove filter element (1) from housing (4).
3. Insert new filter element in housing (4).
4. Install cover (2) with new O-ring.
5. Use torque wrench to tighten the screws of cover (2) to the specified torque.
Name Size Type Lubricant Value/Standard
Screw Tightening torque (Engine oil) 10 Nm −2 Nm
6. Replace further oil separator elements in the same way.
M015695/03E 2013-03
