7.11 Air Intake
7.11.1 Service indicator – Signal ring position check
Preconditions
☑Engine is stopped and starting disabled.
Checking signal ring position

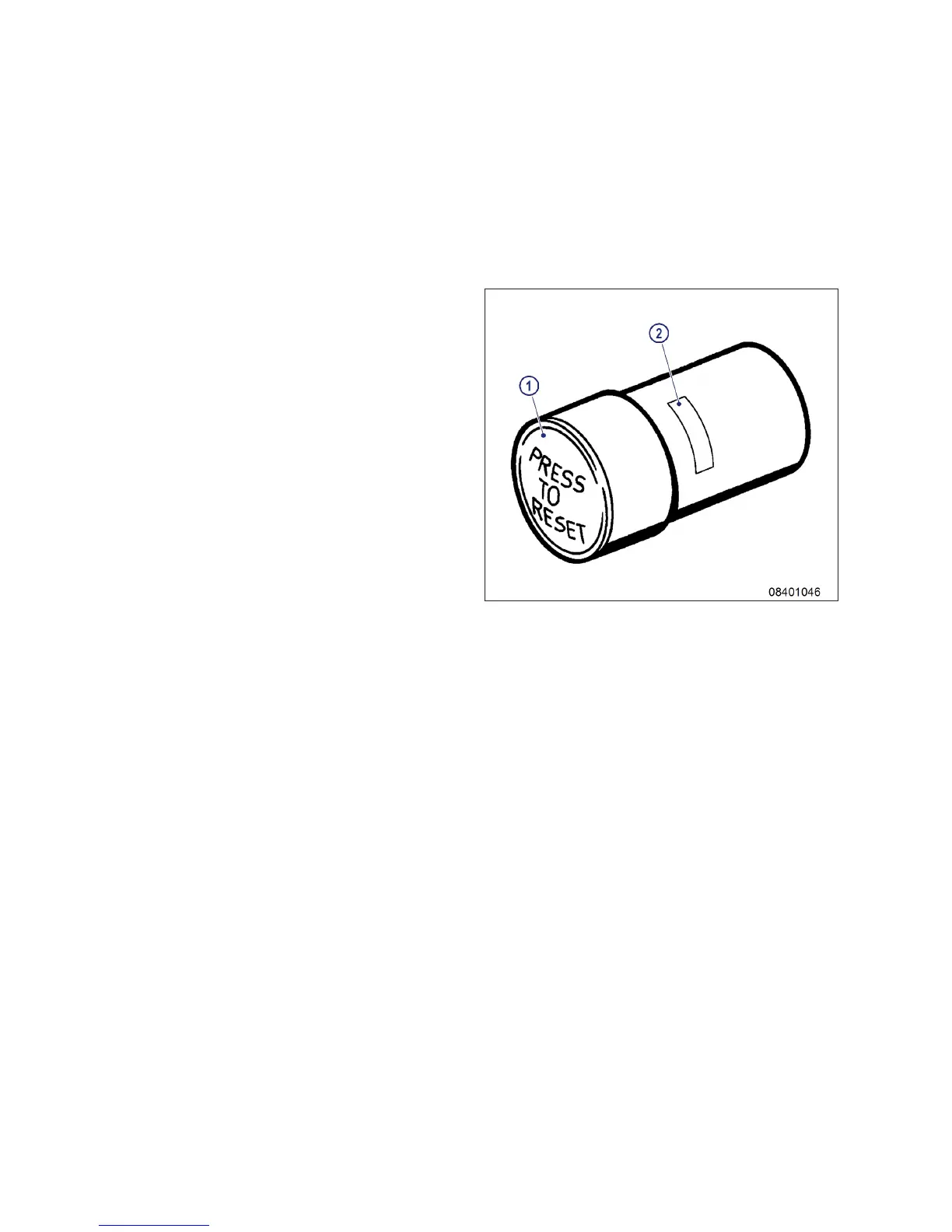

1. If the signal ring is completely visible in the
control window (2), replace air filter.
2. After installation of new filter, press reset
button (1).
Result: Engaged piston with signal ring moves
back to initial position.
108 | Task Description | M015695/03E 2013-03
TIM-ID: 0000030654 - 002
