7.18 Battery-Charging Generator
7.18.1 Alternator – Removing and refitting
Preconditions
☑Engine shut down and secured against being restarted.
Special tools, Material, Spare parts
Designation / Use Part No. Qty.
Torque wrench, 20-100 Nm
F30026582 1
Ratchet adapter
F30027340 1
WARNING
Heavy object.
Risk of crushing!
• Use appropriate lifting devices and appliances.
Removing alternator
1. Remove protective cover.
2. Mark electrical leads on alternator for identification and disconnect.
3. Protect all leads from damage.

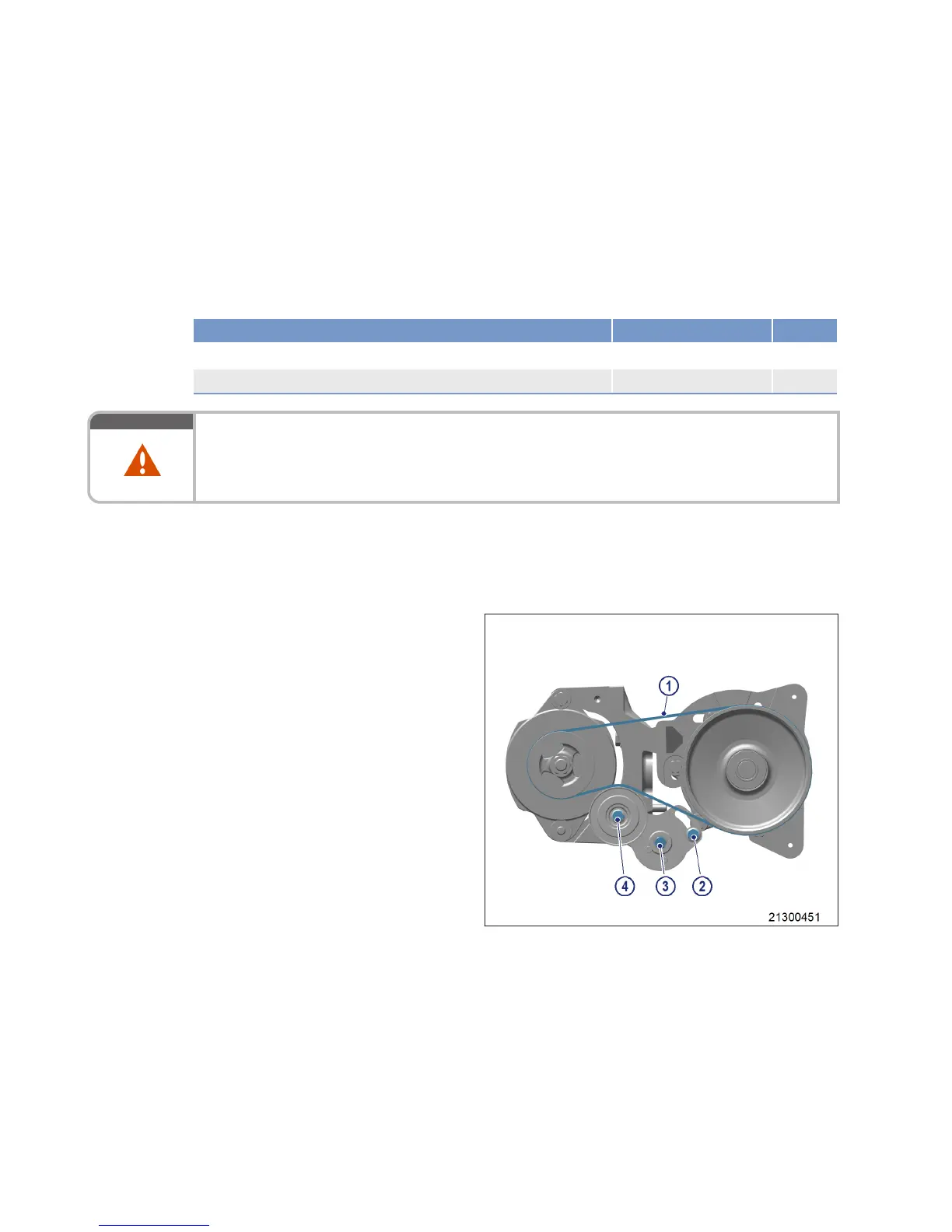

4. Slacken bolts (2) and (3) by half a turn.
5. Fit socket or box wrench on bolt (4) and
press belt tensioner in direction of arrow as
far as the stop.
6. Tighten bolt (2).
7. Remove drive belt (1).
140 | Task Description | M015695/03E 2013-03
